Mini Temperature And Humidity Testing Machine ( Stainless Steel Type )

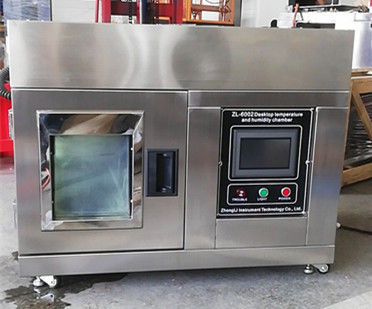

Large Image : Mini Temperature And Humidity Testing Machine ( Stainless Steel Type )

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6002B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Mini Temperature And Humidity Testing Machine is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Mini Temperature And Humidity Testing Machine	Model:	6002B
Inside Size WHD (cm):	40x50x30 / 60L	Volatility / Uniformly:	≤±0.5℃/≤±2℃
Accuracy:	＋0.5℃、-3％R.H	Heated Speed:	1.0～3.0℃/min
Highlight:	temperature humidity test chamber , low temperature refrigerator

Mini Temperature And Humidity Testing Machine (Stainless Steel Type)

Product Overview

Our company specializes in the development and production of constant temperature and humidity testing machines. This compact equipment tests material resistance to heat, cold, dry, and moisture conditions while occupying minimal space.

Compliance Standards

GB11158 high-temperature technical condition
GB10589-89 low-temperature technical condition
GB10592-89 high-low-temperature technical condition
GB/T10586-89 humidity technical condition
GB/T2423.1-2001 low-temperature testing method
GB/T2423.2-2001 high-temperature testing method
GB/T2423.3-93 humidity and heat testing method
GB/T2423.4-93 method of humidity and heat alternating
GB/T2423.22-2001 temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
GJB150.3 high-temperature test
GJB150.4 low-temperature test
GJB150.9 humidity test

Industry Applications

Applied for quality testing across multiple industries including electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care, and more.

Key Features

Premium design with arc shape and surface coating processing for high aesthetic appeal
Large observation window with three-layer vacuum glass and energy-saving fluorescent lamps
Separate humidification system pipelines and control circuits for enhanced safety
Advanced refrigeration system with imported European/US compressors and eco-friendly refrigerants
User-friendly LCD touch screen controller with intuitive interface

Technical Specifications

Parameter	Specification
Model	ZL-6002B
Internal Dimensions (W×H×D)	40×50×30 cm / 60L
Temperature Range	－20℃～＋100℃±2℃ (or custom requirement)
Humidity Range	30%～95%RH±2%RH (or custom requirement)
Volatility / Uniformity	≤±0.5℃ / ≤±2℃
Accuracy	＋0.5℃, -3％R.H
Heating/Cooling Rate	Approx. 4.0℃/min / Approx. 1.0℃/min (specific condition: 5~10℃/min)
Heating Speed	1.0～3.0℃/min
Cooling Speed	0.7～1.0℃/min
Material	SUS 304# Stainless Steel
Power Supply	220V 1 Phase

Product Images
