|Product Name:||Station Security Inspection Machine||Channel Size:||800 (width) × 650 (height) Mm|
|Appearance Size:||2780*1110*1540mm||Conveyor Speed:||0.22m/s|
|Conveyor Belt Rated Load:||200kg||Resolution Diameter:||0.0787 Mm Metal Wire|
|Penetration Force:||43mm Steel Plate||Noise Level:||< 55dB(A)|
food metal detector,
conveyor metal detector

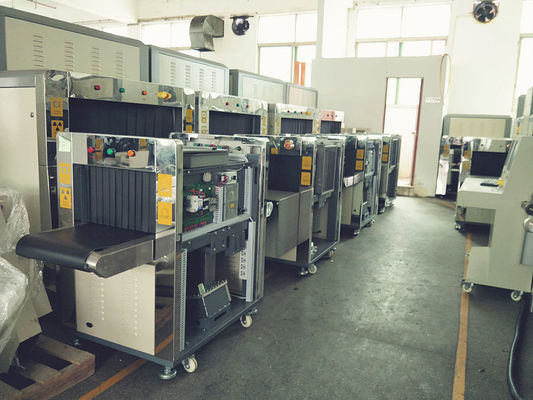

Airport Security X Ray Detector , Station Security Inspection Machine 3D Metal Detector
Designed for roads, railways, customs, terminals, stations and public places, strict internal quality control, implementation of engineering and production double inspection principles, complete machine component safeguards, high-performance network functions, testing by the Ministry of Public Security, CE certification Internationally recognized company ISO9001 certification, passed ISO14001 environmental certification.
1, International brand-name accessories: the United States SPELLMAN source, Japan, HAMMATSU detector, Germany INTERROLL roller.
2, Energy-saving design: the machine can automatically sense the object, there is luggage placed on the machine to start running, no luggage, the machine is stationary.
3, One-button shutdown control: only need to rotate the key when shutting down, the device automatically shuts down safely, reducing equipment failure.
4, Environmentally friendly design: lead curtain plus protective film to prevent guests from touching lead and avoid lead pollution.
5, Dynamic screen switching: the screen can be switched when it is still, and can be switched freely when it is dynamic.
|Channel size||800 (width) × 650 (height) mm|
|Conveyor belt rated load||200kg|
|Resolution diameter||0.0787 mm metal wire|
|Conveyor belt height from the ground||620mm|
|Display BenQ||17in LCD display|
|Image storage||500G hard disk Save any image in real time, store more than 100000 images and process any image, and save it continuously.|
|Noise level||< 55dB(A)|
Single-check dose X-ray source single-inspection exposure should be ≤1.5μGy
Film Safety For ISO1600 Film Safety
Leakage dose Anyway 5 cm away from the outer surface of the device, the exposure rate of leaking rays should be < 0.05 μGy / H
The X-ray generator:
Tube current 0.4~1.25mA (adjustable)
Tube voltage 100--160 KV (adjustable)
Beam divergence angle 90°
Cooling / duty cycle sealed oil cooling / 100%
The image processing system:
X-ray sensor L-shaped photodiode array detector (multi-energy), 12-bit depth
Display high resolution 19 inch LCD display
Color image display 24-bit true color display according to material material
Super image enhancement, image details are clearer
High penetration display Improves the contrast of bright areas in the image, making the easy-to-penetrate area clearer
Low penetration display Improves contrast in dark areas of the image, making the difficult-to-penetrate area clearer
Magnifying glass, partial zoom function, real-time dynamic zoom
Brighten/dark increase Increases the brightness of the image / dims the brightness of the image
Image pull back / pull forward Display the first 20 images and perform any image processing on the image
Image restoration image display returns to its original state
Image Storage Saves any image in real time, and can perform arbitrary image processing and save it continuously.
Multi-energy color organic matter is shown in orange, inorganic is shown in blue, and mixture is shown in green
High energy / low energy
Assisted detection of drug explosives is more helpful in detecting dangerous goods such as some typical explosives.
The use of the environment:
|Operating temperature / humidity||0 ° C ~ 45 ° C / 20% ~ 95% (non-condensing)|
|Storage temperature / humidity||-20 ° C ~ 60 ° C / 20% ~ 95% (non-condensing)|
|Working voltage||220VAC (±10%) 50±3HZ|
|Power loss||1.0KW (maximum)|
