| Product Name: | X Ray Metal Detector Scanner , Luggage Metal Detecting Equipment | Tunnel Size: | 500mm*300mm Custom |
|---|---|---|---|
| Conveyor Speed: | 0.23m/s | Conveyor Height: | 670mm |
| Conveyor Max Load: | 170kg | Enetration: | 34 Mm Steel Guarantee |
| Warranty: | 24 Months | Weight: | 355kg |
| High Light: | food metal detector,metal detector checkweigher |
||

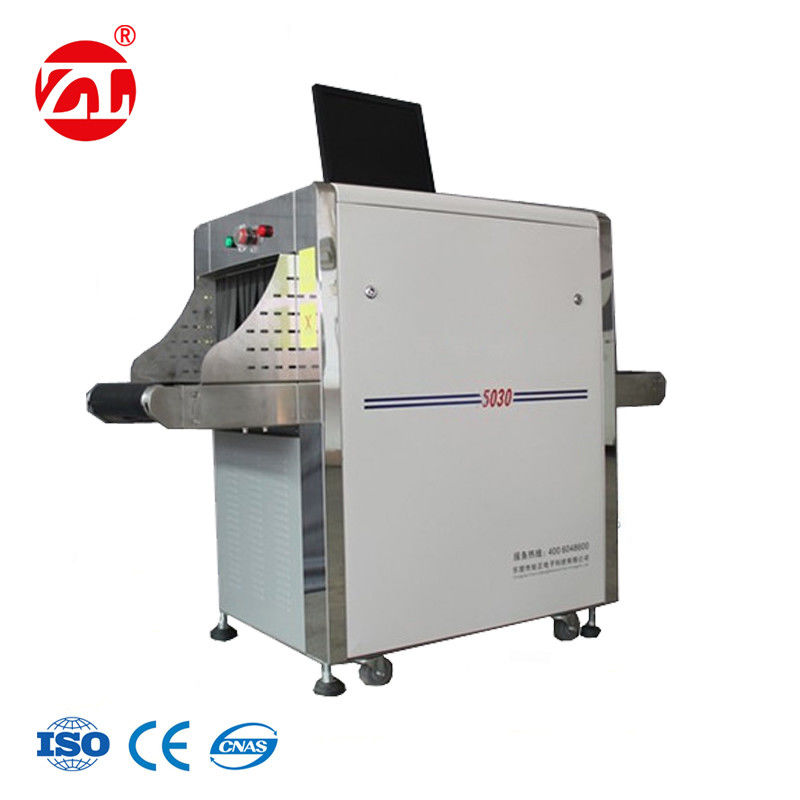

X Ray Metal Detector Scanner , Luggage Metal Detecting Equipment
Detailed Product Description:
Baggage Metal Detector / Airport Baggage Scanner for airport, railway station, hotel, jail, bank
General Specification:
| Tunnel Size | 500mm*300mm |
| Conveyor Speed | 0.23m/s |
| Conveyor height | 670mm |
| Conveyor Max Load | 170kg |
| X ray Dose per inspection | <0.5uGy |
| Wire Resolution | 38AWG Guarantee 40 AWG tapical |
| Spatial resolution Level | dia1.0mm,Vertical dia1.0mm |
| Penetration | 34 mm steel guarantee |
| Penetration Resolution | 32AWG ,the wire visible below 22mm thick aluminum |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Leakage | <0.1 μGVy/h (at a distance of 5cm From external housing) |
Image System:
| Technical Principle | Dual-energy X-ray Imaging; Double L Shaped Array, 448 detectors |
| Image Display | High resolution of 1280×1024; |
| Image Enhancement |
1-64 times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color |
| Image Recall | All preceding images recallable |
|
Explosives Detection |
Explosives alarm and highlight according to atomic number signature |
|
High Density Region Alarm |
Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
|
Threat Image Projection |
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive |
Up to 80,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
|
Miscellaneous Functions |
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS |
|
Network Applications |
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc. |
|
Images process |
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level 4096 |
X-ray Generator:
| Generate direct | from bottom to top |
| Anode Voltage | 140kv |
| Cooling / Duty Cycle | Oil Cooling /100% |
Computer Character:
| Computer CPU: |
Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version |
| Motherboards | Intel G41, |
|
Bus architecture:
|
Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 |
|
Memory
|
2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots. |
| Better Hard Disk drive | 500GB 7200 rpm serial ATA |
| Other Characters | Support Video image storage and screening system |
| Extension Rollers: | Optional (50cm length roller) UPS camera system and photographic system Optional Support card reader operator access |
| CD DVR/RW unit | Optional it have vents and transparent parts |
| Duty Cycle | 100% without initial time |
| Computer system: | XP system |
| Two LCD monitor: | 17 inch DELL brand or 19inch monitor |
Operating Environment:
| Operation temperature/Humidity | 0-45/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -40~+60 / 5%~95% (non-condensing) |
| Operation Power |
220VAC(±10%)50±3Hz (100VAC,110VAC, 120VAC,200VAC) |
| Power Consumption | 1.4 KW (max), 1.3KW(working) |
| Noise | <58db |
Dimension Size:
| Dimensions (L×W×H) | 1662mm*750mm*1160mm |
| Weight | 355Kg |
