Product Details:
Payment & Shipping Terms:
|
| Inner Size D*W*H:: | 40*50*40 Cm | Temperature:: | -40oC To 150oC |
|---|---|---|---|
| Timer:: | 0.1 To 999.9 (S,M,H)adjustable | Cooling Time:: | 25oC To -70oC About 80min |
| Heating-up Time:: | -40oC To 100oC About 55min | Sensor:: | Platinum Resistance PT100Ω/MV |
| Inside Material:: | SUS304 High-quality Stainless Steel Light Board | Warranty: | 12 Month |

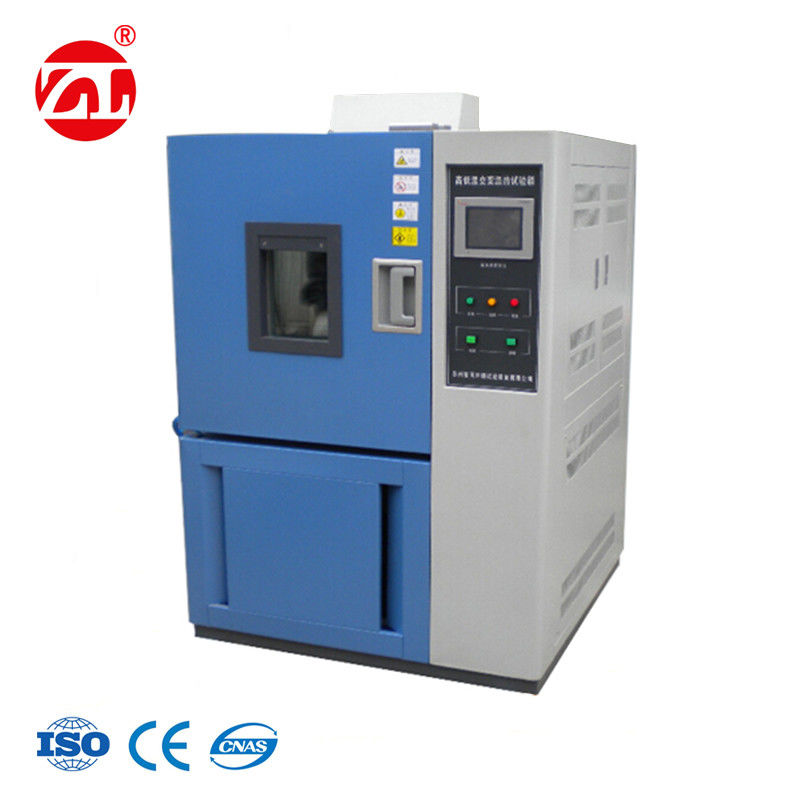

| Product Name: | SUS 304 High And Low Temperature Test Chamber , Environmental Test Equipment | Key Words: | High And Low Temperature |
| High Light: | impact test equipment,low temperature refrigerator |
||
Equipment summary:
ZL-6019 High And Low Temperature Test Chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.
Corresponding standard:
1.GB 10589-89 low temperature testing condition
2. GB 10592-89 high temperature testing condition
3. GB 11158-89 high temperature testing condition
4. GB/T5170.2-1996 basic parameters of environmental testing method for Electrical and
electronic products,
5. GB2423.1-89 The basic test regulation for electrical and electronic products, Test A: low-temperature
test method
6. GB2423.2-89 The basic test regulation for electrical and electronic products, Test B: high-temperature
test method
7. The basic test regulation for electrical and electronic products, Test: high-low-temperature test method
Applicable industries:
Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments,food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Technical parameters:
| Model | ZL-6019 High And Low Temperature Test Chamber | |||
| Inner size D*W*H | 40*50*40 cm | 40*50*50 cm | 50*60*50 cm | |
| index | temperature | -40oC to 150oC | ||
| fluctuate/uniformly | ≤±0.5oC /.+2oC to 3oC | |||
| Heating-up time | -40oC to 100oC about 55min | |||
| Cooling time | 25oC to -70oC about 80min | |||
| Control system | controller | LED digital P,I,D, +S,S,R.microcomputer controller | ||
| accuracy |
Setting accuracytemperature ±0.1oC,directed accuracytemperature ±0.1oC,resolution ±0.1oC |
|||
| sensor | Platinum resistance PT100Ω/MV | |||
| Heating system |
Independent system, nickel-chromium alloy electric heating type heater |
|||
| Cooling system |
Totally enclosed air-cooled single-stage compression refrigerate mode / original from French "Taikang" / totally enclosed air-cooled re-compression refrigerate mode |
|||
| Circulatory system |
Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel |
|||
| material | Outer material |
High-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment |
||
| Inside material | SUS304 High-quality stainless steel light board | |||
| Insulation material | Rigid polyurethane foam, ultra-fine glass fiber cotton | |||
| insulation |
Double-resistant high-temperature aging of silicone rubber seal |
|||
| Standard collocation |
a set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs |
|||
| Protector |
Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection |
|||
| Timer | 0.1 to 999.9 (S,M,H)adjustable | |||
| Voltage | AC380V±10%, 50±0.5Hz Three-phase five-wire system | |||
| environmental temperature | 5oC to 30oC ≤85%R.H | |||
|
annotation to uses requirements |
||||
Dongguan Zhongli Instrument Technology Co., Ltd. is a subsidiaries of Dongguan Mo’s Machinery Co., Ltd. Which Located in Dongguan, Guangdong, China. It is a collection development, research, production and sales of integrated high-speed CNC company.
Companies with technical support, marketoriented, fundamental human. Have a high level of professionalism, experience and innovative research team and carved small peck production team. Companies with the most advanced technology, the most stable quality, best price, best after sales service, from installation and commissioning, professional training, to solve practical problems of customers, providing 24-hour technical advice. company's products among consumers enjoy higher status, with many agents to establish a long-term stable cooperative relations.
To meet the needs of the market, using their own advantages of resources, in 2013 the company successfully opened two production lines, professional R & D:
Material tensile / pressure testing machine (such as: hydraulic servo universal testing machine, universal testing machine servo electronics, etc.), environmental test series (such as: salt spray test chamber, temperature and humidity chamber, aging chamber, sun and climate color fastness, thermal shock chambers, precision oven, electric oven blast, water chamber, ozone chamber, alternating high and low temperature and humidity chamber, etc.), various other laboratory test equipment (such as: electronic balance , density meters, thickness, hardness, torque, force gauge, colorimeter, water detector, level meter, needle machine, caliper gauges, test fixtures, testing supplies, etc.). Widely used in the leather footwear, packaging paper industry, electronic industry, wire and cable industry, building materials, textiles, rubber and plastics industry, automobile industry, auto, electric car, motorcycle industry, strollers, sports equipment industry, metal plating industry.
Promises: One year free maintenance of all equipment, maintenance of life, welcome to consult the discussion!
