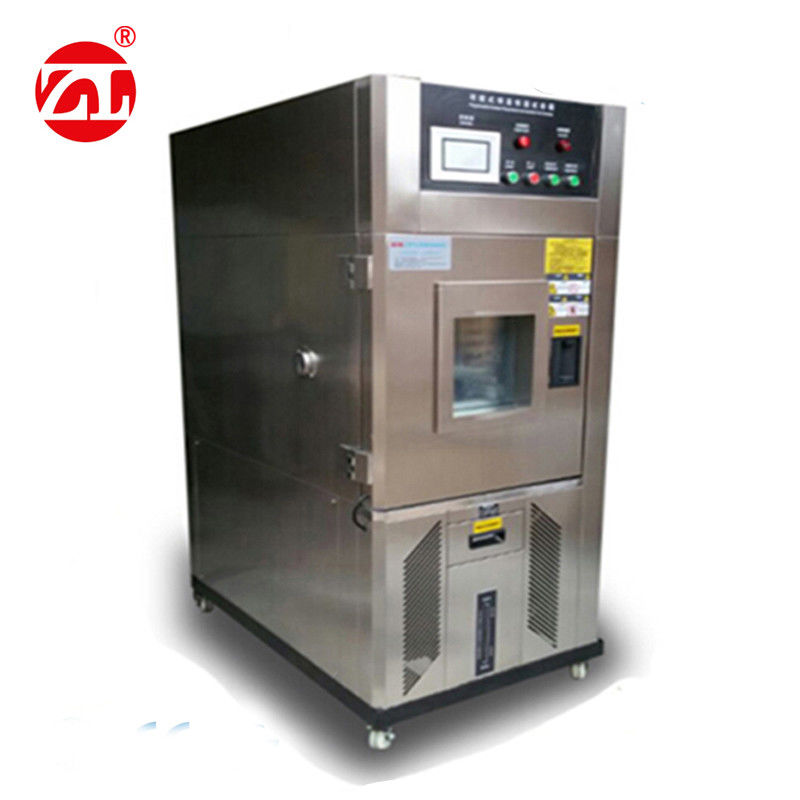

JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers

JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers
JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers
video play

Large Image :  JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers

Product Details:
Place of Origin: Guangdong,China
Brand Name: Zhongli
Certification: ISO,CE
Model Number: ZL-6004C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 80L Programmable Constant Temperature and Environmental Test Chamber is Packaged in wooden case
Delivery Time: 10~15 days after the order comfirmed
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Temperature Range:: -70℃~+100℃(150℃) Humidity Range:: 20%~98%R.H.
Accuracy / Volatility:: ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. Inside Material:: Stainless Steel SUS 304#
Power:: 220VAC±10% 50/60Hz Controller: TEMI800
Weight: 200kg Warranty: 12 Month
High Light:

temperature humidity test chamber

,

impact test equipment

80L Programmable Constant Temperature Environmental Test Chambers With Anti-sweat Heater





Applicable industries:



Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

ZL-6004C programmable constant temperature and hum...

Equipment summary:



The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Machine is made of stainless steel:



Powder paint outside the box



Features:



  • High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
  • Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
  • Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
  • With an external water supply system can be easy to supply water and automatically reuse.
  • Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
  • Controller imported LCD display screen can be displayed measuring values and setting the value and time.
  • Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
  • Built-in mobile pulley easy to move and has a strong positioning screw fixed position



Corresponding standard:



1.International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat



2. Military Standards:

MIL-STD-810F-507.4 humidity

MIL-STD-810F-501.4 high temperature

MIL-STD-810F-502.4 low temperature

MIL-STD883C test method 1004.2 temperature and humidity cycling test

MIL-STD810D test method 502.2

MIL-STD810 test method 507.2 procedure 3



3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature



4. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test



5. Chinese National Standard:

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

GB/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

GB/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method



6. China's National Military Environment Test Equipment

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 hot and humid condition testing



Detailed parameters:



model

ZL-80

(A~G)

Inside size WxHxD (cm)



80L( or customized)

Outside size WxHxD (cm) Customize
Temperature range -70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ uniformly ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Accuracy / volatility ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / cooling time About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)
material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
accessories recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball
controller TEMI300 digital controller from South Korea
compressor France Tecumceh
power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





Detailed Configuration and function of software :



A. Wind circulative system

1.Using multi-wing centrifugal Rewind fans, strengthen the axis is made of aluminum alloy in order to attain loop forced convection

2.Stainless steel added long axis

3.Stainless Steel Multi-blade centrifugal wind wheel



B.Water Supply system

1.with water tank at the back

2.automatically supply water

3.warning for the shortage of water



C. Cooling system(diego-style,single machine,refrigerator;)

1.compressor:France“Tecumceh ”Hermetic Refrigeration Compressor TFHK2522K two unit

2.refrigerator:Air-cool condenser coil

3.Evaporator: pomfret Chip Multi-Segment

4.Other Accessories: Imported desiccant cooling, Freon-borne window, the U.S. oil-water separator

5.Expansion System: Italian expansion valve



D.Temperature and humidity control system

1.Control Specifications: Original South Korea TEMI880 color LCD touch screen in English and Chinese

Accuracy: ± 0.5 ℃ ± 1% R.H

Resolution: 0.1 ℃ 1% R.H

2. Functions can accommodate memory 999 program, optional single-stage control

or multi-segment program control, operating as a functional form model, can be

directly programmed and solid curve of function and the RS-232 communication interface.

3.connect with computer, directly monitored by the computer to operate program,

it also records temperature data and print! (Need anther purchase)

4.The main components of the system is equipped with a safe inspection and

interface devices, when an fault occurs, immediately through the LCD to

display fault status and cut off the power

5.With the cumulative operating time, display the run time

6.Sensor: PT100 Sensor

7.Temperature and humidity control diagram attached



E.Standard Accessories



1 two groups adjustable shelf board made of stainless steel, the distance can be arbitrarily changed

2.Perspective vacuum glass windows, explosion-proof type

3.Wide-angle lighting, using energy-saving high-efficiency fluorescent lights

4.The machine is equipped with 4 group adjustable fixed wheel axle and control indicator light

5. a pair of Φ50mm hole for testing



Power:



Three-phase 380V ± 10% Power frequency: 50Hz ± 2% 4KW



Information and services

1. To provide equipment drawing, electrical schematics, electrical wiring diagram, consume parts, operating manuals and other technical information, copy of two, and to provide essential technical information.

2. Trained how to operate and maintain the equipment, so the staff grasp to the skill of of equipment.

3. Equipment, one year warranty for free maintenance service: after one year provide the accessories for paying costs price.



ZL-6004B following list of the programmable constant temperature and humidity testing machine:



Structure material Model From description
box Shell Stainless steel SUS304B import Antirust
Liner Stain steel SUS304B import Antirust
insulation Rigid polyurethane foam, ultra-fine glass fiber Hongkong insulation
Door Stainless steelSUS304B import Good sealing performance
View window 38026 insulating glass   Observed the testing sample
Frame Stainless steel ring export Diameter 8mm
Testing hole Diameter 60MM   Wire through directly
Heating system Heating pipe Stainless steel heat sink Hongkong Storage’s temperature rise up
Air circulation system fan YYF100-25-4S Japan Storage back to ring

Cooling









system

compressor CAJ2464 France cooling
Condenser Tecumceh France Storage back to ring
Coolant R23/404/environmentally United States cooling
electromagnetic valve 1028/3 Castor Italy Refrigerant opening and closing
Expansion valve TY2 Danfoss United States Refrigerator throttling
filters 0835 Danfoss United States Filter oxide cooling pipe
Humidity system Humidity tube Stainless steel 304 import The effective protection of laboratory humidity
Humidity box Made by oneself   Provide temperature

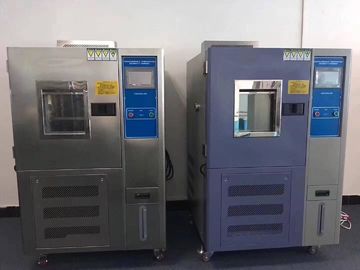

JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers 0
