Automatic Loading Torsion Cable Testing Machine Metal Wire / Cable Rod

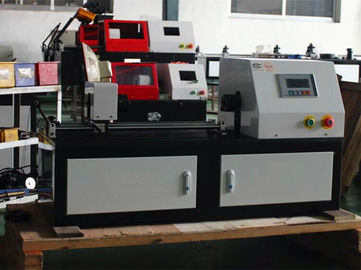

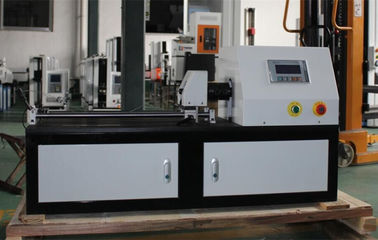

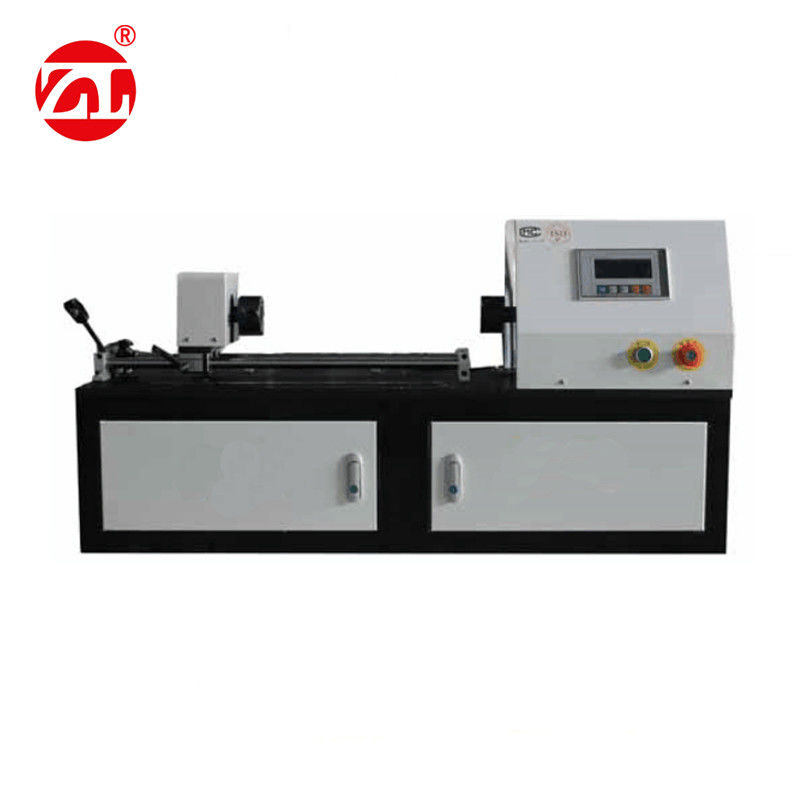

Large Image : Automatic Loading Torsion Cable Testing Machine Metal Wire / Cable Rod

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO,CE
Model Number:	ZL-2112

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	10~15 days after the order confirmed
Payment Terms:	T/T, L/C, D/A, D/P, Western Union,
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Working Model::	Automatic Loading	Two Plus Head Gauge::	350mm,500mm
The Jaw Clamp Specific Diameter::	74mm,65mm	Reverse Speed::	60;90;120;180;300rpm / 30;60;90;120 Rpm
The Velocity Error::	<+10%	Two Chuck Concentricity::	<0.4mm
Test Weight::	100-200kg	The Min Number Of Reading Circle::	0.1
The Power Supply::	220V 50HZ
Highlight:	cable testing device , cable flex tester

Automatic Loading Torsion Cable Testing Machine Metal Wire / Cable Rod

Product Overview

Automatic Loading Torsion Cable Testing Machine designed for testing metal wire and cable rods with diameters from 0.1mm to 10.0mm. This machine evaluates plastic deformation capability and detects surface and interior defects through one-way or bidirectional torsion testing.

Testing Methods

One-way Rotation: Specimen rotates 360 degrees in one direction to specified number of twists or until fracture
Bidirectional Torsion: Specimen rotates in one direction to specified number of twists, then rotates in opposite direction same number of times or until fracture

Applications

Designed for determining plastic deformation ability and detecting surface and interior defects in metal wire with diameters ranging from 0.1mm to 10.0mm.

Standards Compliance

Complies with GB/T 239-1999 (China), ISO 7800:1984 (one-way torsion), and ISO 9649:1990 (bidirectional torsion) standards.

Technical Specifications

Parameter	Specification
Model	Metal Wire Rod Torsion Test Machine
Working Mode	Automatic loading
Display Mode	Chinese characters LCD menu display
Wire Rod Diameter	0.1mm-1mm, 1mm-3mm; 1mm-6mm, 1mm-10mm
Gauge Length	350mm; 500mm
Jaw Clamp Diameter	74mm; 65mm
Flat Jaw Clamping Range	0-3mm
Round Jaw 1 Clamping Range	3-6mm
Round Jaw 2 Clamping Range	6-10mm
Reverse Speed	60; 90; 120; 180; 300 rpm / 30; 60; 90; 120 rpm
Velocity Error	< ±10%
Minimum Reading Circle	0.1
Chuck Concentricity	< 0.4mm
Rail Moving Parallel Degree	< 0.2mm
Jaw Hardness (HRC)	50 to 65
Dimensions	980 x 400 x 600 mm; 1360 x 430 x 600 mm
Weight	100-200KG
Power Supply	220V 50HZ
Noise	< 50 dB (A); < 70 dB (A)
Assembly Quality	Complies with GB/T2611 national standard
Packaging	Complies with JB/T 614 machinery standard

Frequently Asked Questions

How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will provide the best recommendations based on your specific testing requirements and specifications.

What's the delivery term?

Typically available from stock. If not in stock, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization service?

Yes, we offer both standard and customized machines according to your specific requirements.

Can we visit your factory before order?

Yes, we warmly welcome factory visits and can assist with hotel arrangements and airport pickup.

Do you have customers in our country?

Our testing machines are sold to over 26 countries including USA, Canada, Russia, UK, Italy, Germany, EU countries, India, Pakistan, Philippines, Singapore, Thailand, Vietnam, Iran, Brazil, and more.

How about your warranty?

Standard warranty is one year, including technical support and replacement parts. Engineer support available when necessary.

How about the packing for machine?

Machines are packed in standard export wooden boxes to ensure safe transportation by sea or air.

What is the order process?

Inquiry → Quotation → Communication → Order Confirmation → Deposit Payment → Production → Testing & Debugging → Balance Payment → Packing → Delivery → Customer Receiving → After Service

How to install and use the product?

Product includes English operating instructions and installation video.
