| Ozone Concentration:: | 0~1000pphm Adjustable | Relative Humidity:: | 60%RH |
|---|---|---|---|
| Temperature:: | RT+10~+70℃ | Ozone Produced Mode:: | Ozone Generator Or UV Absorption Method |
| Degree Of Fluctuation:: | 10% | Air Flow:: | A.0-6 Cfm;B. 10-20 Cfh |
| Inside Size:: | 500*500*600mm | Accessories:: | Tensile Fixture 6 Groups |
| Highlight: | impact test equipment,low temperature refrigerator |
||

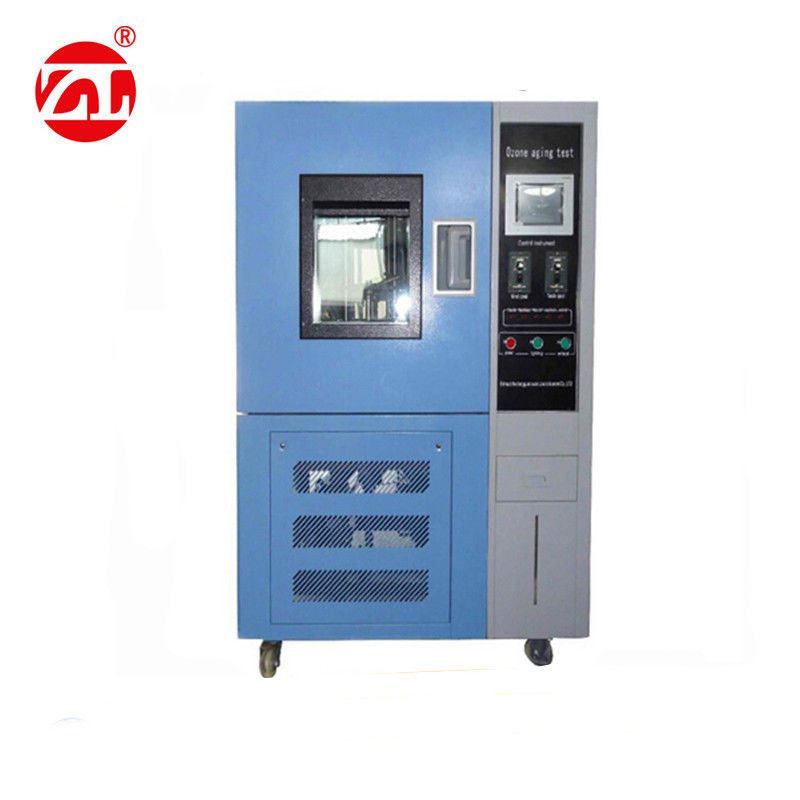

Dynamic/Static Ozone Aging Test Equipment Environmental Test Chamber
Equipment summary:
Dynamic/Static Ozone Aging Test Equipment is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Main function:
Dynamic/Static Ozone Aging Test Equipment is used to test the ozone environment, the characteristics
of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.
Main feature:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the
concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Corresponding standard:
JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642
Techincal parameter:
| 1. Model | Dynamic/Static Ozone Aging Test Equipment |
| 2. Ozone concentration | 0~1000pphm adjustable |
| 3. Relative humidity | 60%RH above |
| 4. Temperature | RT+10~+70℃ |
| 5. Ozone produced mode | Ozone generator or UV absorption method |
| 6. Inside air velocity | over 2 feet/sec |
|
7. Degree of ozone concentration |
10% |
| 8. Inside size | 500×500×600mm |
| 9. air flow | A.0-6 cfm;B. 10-20 cfh |
| 10.weight | 250kg |
| 11.power | AC220V,15A |
| 12.accessories | tensile fixture 6 groups |
