Payment & Shipping Terms:
|Voltage:||380V 60Hz, 3 Phase||Roller Size:||4" 6" 8" Or Else|
|Roller Hardness:||HRC 50 ~ 60||Capacity:||0.5-1kgs / 2-3kgs / 5-7 Kgs|
|Warm-up Time:||Room Temperature ~ 150 ℃ About 20C||Cooling Method:||Water / Air Cooling|
|Power:||About 2800W||Key Words:||Lab Rubber Mixer|
rubber testing equipments,
rubber hardness tester

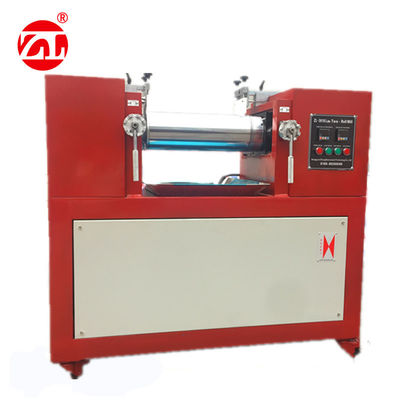

Water / Air Cooling Lab Two Roll Mill , Rubber Testing Machine For Polymer
Two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory
Plastic open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
1. Construction of mill rolls: drilled roll, bored roll, grooved roll
2. We can design speed ratio as per customers' formula and processing requirements.
3. Frame, frame cap and base are welded and treated by annealing for stress relieving.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5 Brake and emergency stop device can ensure the safety of personnel and equipment.
6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7 Human nature designed controlling system ensure labor safety.
8.. Methods of adjusting roll nip: manual or electric
Intelligent control panel and PLC control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
|Model||Lab two roll mill|
|Mixed capacity||0.5-1kgs / 2-3kgs / 5-7 kgs|
|Temperature||room temperature ~ 300 ℃|
LED display, buttons to set the input
and display output value
|Temperature control||P.I.D controlled|
|Heater||cylindrical mold is heated|
|Warm-up time||room temperature ~ 150 ℃ about 20min|
|Temperature accuracy||± 3 ℃|
|Roller dimensions||diameter 3.9 "× L13.7"|
|Drum revolutions ratio||Standard revolutions ratio 1:1.25|
|Roller hardness||HRC 50 ~ 60|
Protection device is attached
state of emergency
|Volume||960*550*1150 (W* D* H) mm|
|Power source||AC380V, 15A|
