Automatic Wire and Cable Torsion Strength Testing machine For Metal

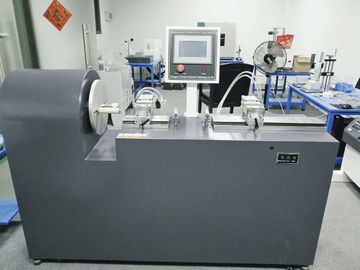

Large Image : Automatic Wire and Cable Torsion Strength Testing machine For Metal

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2110

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Automatic Wire and Cable Torsion Strength Testing machine is Packaged within wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T, L/C, Western Union,
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Working Mode:	Automatic Loading
Display:	LCD	Two Plus Head Gauge:	350mm; 500mm
Jaw Clamp Specific Diameter:	74mm; 65mm	Reverse Speed:	60; 90; 120; 180; 300 Rpm / 30; 60; 90; 120 Rpm
Jaw Hardness (HRC):	From 50 To 65	Warranty:	12 Month
Highlight:	cable harness tester , cable flex tester

Automatic Wire and Cable Torsion Strength Testing machine For Metal

The main purposes:

Automatic Wire and Cable Torsion Tester is suitable for the determination of diameter (or feature size) for metal

wire 0.1-10.0mm under the plastic deformation ability and display defects of wire surface and interior in

one-way or two-way torsion.

Main technical parameters:

Product Name	Automatic Wire and Cable Torsion Strength Tester
Working mode	Automatic loading
Display mode	Chinese characters LCD menu display
Diameter of wire rod	0.1mm-1mm, 1mm-3mm; 1mm-6mm, 1mm-10mm
Two plus head gauge	350mm; 500mm
Jaw clamp specific diameter	74mm; 65mm
Flat jaw clamping range	0-3mm
The 1 round jaw clamping range	3-6mm
The 2 round jaw clamping range	6-10mm
Reverse speed	60; 90; 120; 180; 300 rpm / 30; 60; 90; 120 rpm
The velocity error	< + 10%
The minimum number of reading circle	0.1
Two chuck concentricity (mm)	< 0.4
The rail moving parallel degree (mm)	< 0.2
Jaw hardness (HRC)	From 50 to 65
Size(length * width * height)	980 x 400 x 600 mm;1360mm "430mm" 600mm
Test weight	100-200KG
Power supply	220V 50HZ
Noise	< 50 dB (A);< 70 dB (A)
Quality of assembly	In accordance with the national standard GB/T2611
Packaging	With the machinery of the standard JB/T 614

Automatic Wire and Cable Torsion Strength Testing machine For Metal 0

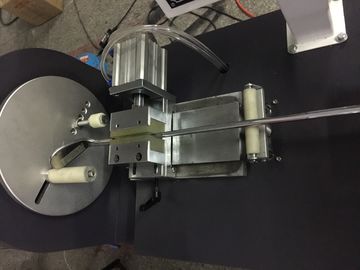

Automatic Wire and Cable Torsion Strength Testing machine For Metal 1
