Microcomputer Controll Cable Testing Machine For Metal Cable 220V / 380V

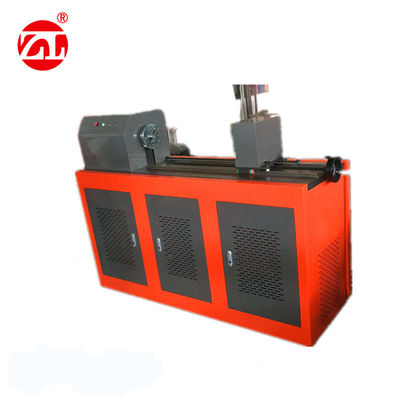

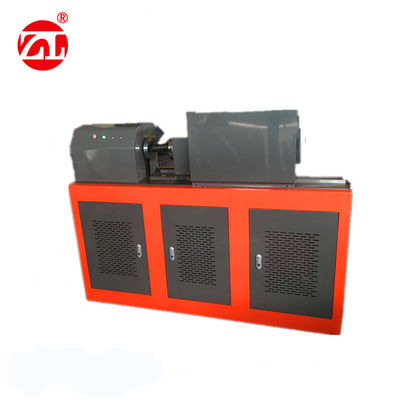

Large Image : Microcomputer Controll Cable Testing Machine For Metal Cable 220V / 380V

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2107

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v / 380v	Maximum Test Torque:	100/200/500/1000Nm/2000Nm
The Accurate Measurement Of Torque:	2% - 100%Fs	The Relative Error Of Angle:	Less Than 1%
Angle Measurement Range:	0.01 - 9999.9 Degrees	Warranty:	12 Month
High Light:	cable testing device , cable flex tester

Microcomputer controlled torsion testing machine for Metal cable

Categories:
wire torsion testing machine name: microcomputer control torsion testing machine

The main characteristics of use:
This machine is loaded by the computer control of Japanese imports of AC servo control system, the AC servo motor, cycloidal reducer drives the drive chuck rotating load, torque and torsion angle detection using high precision torque sensor and photoelectric encoder, computer dynamic display test torsion and let torque curve, loading rate, peak test power etc.. Detection method accords with the test method of torsion GB10128-88 metal at room temperature requirements.The testing machine is mainly used for torsion testing of metallic materials or non-metallic materials, can also carry out the torsion test for parts or components, aerospace, building materials industry, transportation, scientific research departments, various colleges and universities and industrial and mining enterprises is used to determine the material mechanics laboratory torsion testing instrument performance necessary.

The main function and characteristics:
1. Loading ways: imported AC servo motor and driver, can be both positive and negative direction of the two applied torque;
2. Detection of torque and torsion angle: high precision of symmetrical torque sensor, detecting torsion angle with high precision LEC type photoelectric encoder.
3. Operation: Manual (with forward and reverse the manual operation button) and computer operation in two ways;
4. Special control software based on WINDOWS platform, using the way of human-computer interaction analysis and calculation of the subjects index of mechanical properties of materials, test data automatic processing, dynamic display of the test curve, the test results can be stored, print, also artificial intervention analysis process to improve the accuracy of the analysis.
5. With overload protection function
6. Using full digital microcomputer closed loop servo control

Parameter:

Maximum test torque	100/200/500/1000Nm/2000Nm
The accurate measurement of torque	2% - 100%Fs
Value of relative errors show test torque	Less than 1% (precision 0.5%)
Value repetition indicated torque relative error test	Less than 1% from each of the 20% ranges
Angle measurement range	0.01 - 9999.9 degrees
The relative error of angle	Less than 1%
Torsion angles (small angle measurement) shows the Min. resolution	0.002 degrees
Reverse speed range	0.18 degrees, 720 degrees /min, stepless speed regulation
Corner shows the minimum resolution	0.01 degrees
The test speed and accuracy	Better than showing the value of + 1%
Test the direction of rotation	Bidirectional
The power supply voltage	AC220V
The maximum distance between two clamping head for	600mm / 650mm
Clamp the specimen size	8 - Phi Phi 32mm
Clamp the specimen size	8 - Phi Phi 40mm

Microcomputer Controll Cable Testing Machine For Metal Cable 220V / 380V 0
