| Power: | 220v 50hz | Maximum Testing Load: | 500N |
|---|---|---|---|
| Minimum Resolution: | 0.01N | Diameter Of The Platen: | 48mm |
| Indication Error: | ±1% | Warranty: | 12 Month |
| Working Temperature: | 20±10℃ | Relative Humidity: | 15%~80%RH |
| High Light: | cable harness tester,cable flex tester |
||
Categories:
According to the spring and a pressure spring of different sizes, we put the spring testing machine is divided into manual spring testing machine and electric spring testing machine (including automatic spring tester and microcomputer controlled spring testing machine);
According to different detection of spring each manufacturer requirements, we also divided into liquid crystal digital display type spring testing machine and computer control type spring testing machine;
We have been committed to R & D and manufacturing of spring testing equipment, and according to the different requirements of customers and the development suited to their use of unconventional spring detection device, as long as the detection and spring related please give us to do, look forward to your call letters!
Product overview:

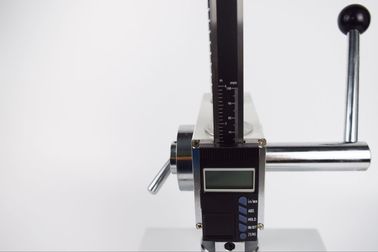

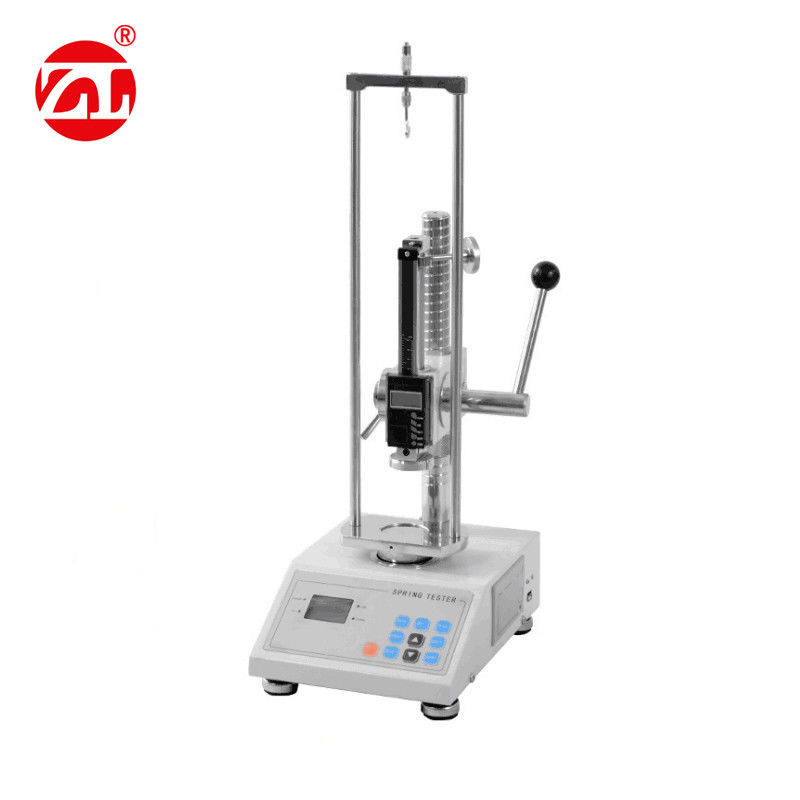

TLS-S-I high precision liquid crystal display spring tension and compression testing machine is based on the requirements of JB/T 7796-1995 spring tension and compression testing machine standard production technology. Is mainly on various spiral spring tensile and compression tests, in addition to piston ring tension of the elastic test. Determination of test force of the spring in the displacement under a certain amount of determination, or the spring in the test force under a certain amount of deformation, can also be used to test other elastic element and small mechanical properties, mainly used for spring factory,low voltage electrical appliance factory, power machinery factory, universities and scientific research units.
Parameter:
| Maximum testing load | 500N |
| Minimum resolution | 0.01N |
| Diameter of the platen | 48mm |
| Maximum free length of measurable spring | 150mm |
| Length of travel of the displacement scale | 90mm |
| Division value of the displacement scale | 0.01mm |
| Indication error | ±1% |
| Power Supply | AC 110-220V, 50HZ-60HZ |
| Power capability (without printer) | 13W |
| Power capability (with printer) | 20W |
| Working temperature | 20±10℃ |
| Temperature of storage and transportation | -27℃~+70℃ |
| Relative temperature | 15%~80%RH |
