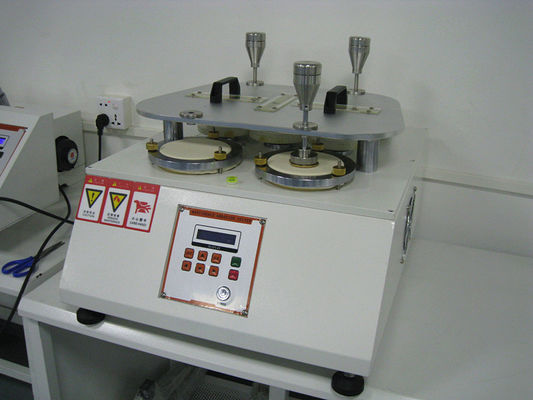

4 Work Stations Textile Testing Machine , Pilling Martindale Abrasion Tester

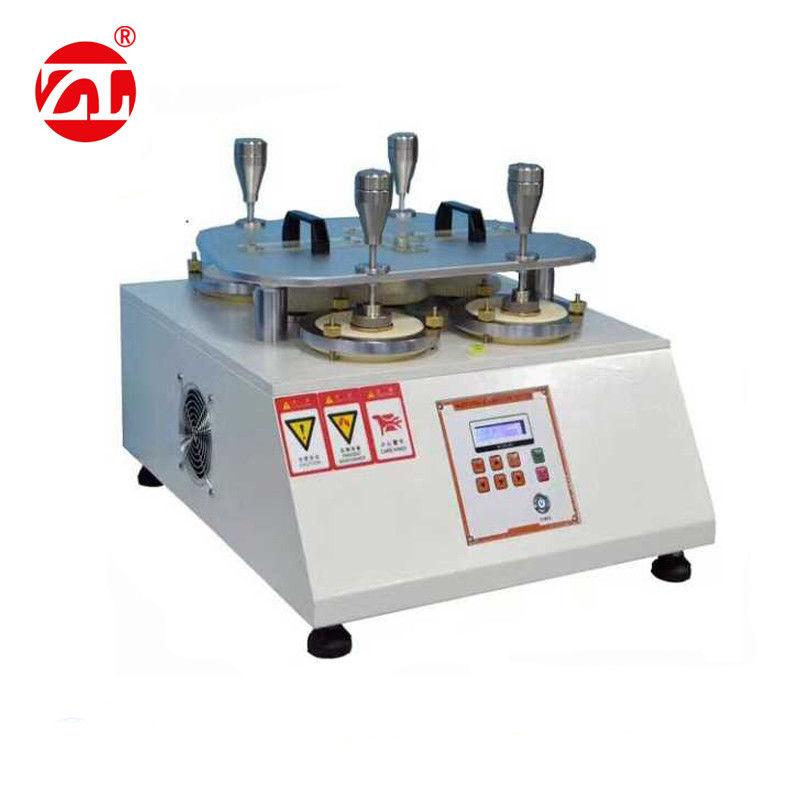

Large Image : 4 Work Stations Textile Testing Machine , Pilling Martindale Abrasion Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-5006

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	4 Work Stations Textile Testing Machine , Pilling Martindale Abrasion Tester is packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	500 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Work Station:	4
Standard:	ASTM D4966	Maximum Dynamic Range:	24±0.5mm ,60.5±0.5mm
Weight Of Pressure Hammer:	2385±10g	Warranty:	12 Month
Product Name:	4 Work Stations Textile Testing Machine , Pilling Martindale Abrasion Tester	Key Words:	Martindale Abrasion
Highlight:	textile testing equipment , yarn twist tester

4 Work Stations Textile Testing Machine - Pilling Martindale Abrasion Tester

Professional 4-station Martindale abrasion and pilling textile testing machine designed for comprehensive fabric quality assessment according to international standards.

Product Overview

The Martindale abrasion testing machine with 4 stations is designed for testing fabric pilling degree according to GB/T4802.2, ASTM D4970, ISO12945-2 standards, and fabric wear resistance testing according to GB/T13775, ASTM D4966, ISO12947 standards. The testing principle involves circular fabric specimens moving in Lissajous trajectory patterns under controlled pressure to evaluate pilling performance and abrasion resistance.

Compliance Standards

Pilling Testing: GB/T4802.2, ASTM D4970, ISO12945-2
Abrasion Testing: GB/T13775, ASTM D4966, ISO12947

Technical Specifications

Parameter	Specification
Model	Martindale abrasion testing machine 4 head
Station Number	4 stations
Count Display	Estimated counting: 0-999,999 times Total counting: 0-999,999 times
Maximum Dynamic Range	24±0.5mm, 60.5±0.5mm
Weight of Pressure Components	Gripper: 200±1g Cloth samples hammer: 395±2g Furniture accessories sample hammer: 594±2g Stainless steel butterfly piece: 260±1g
Effective Friction Diameter	A type: 200g friction head Ø28.8-0.084mm B type: 155g friction head Ø90-0.10mm
Relative Velocity	50-2r/min
Weight of Pressure Hammer	2385±10g
Dimensions	885600410mm (LWH)
Weight	150kg
Power	AC220V, 50Hz

Key Features

Advanced design incorporating advantages from domestic and international equipment with elegant appearance and user-friendly interface
Touch display screen with intuitive operation and easy-to-understand interface
Computer system utilizes dual counting methods with visual display and convenient settings
Simultaneous 4-station testing capability for improved testing efficiency
Dual Lissajous trajectory patterns (24mm*24mm and 60.5mm*60.5mm) with multiple trajectory matching accessories
Compatible with various testing method standards for comprehensive fabric assessment
