PLC Control Automatic Vacuum Immersion Machine Double Cylinder

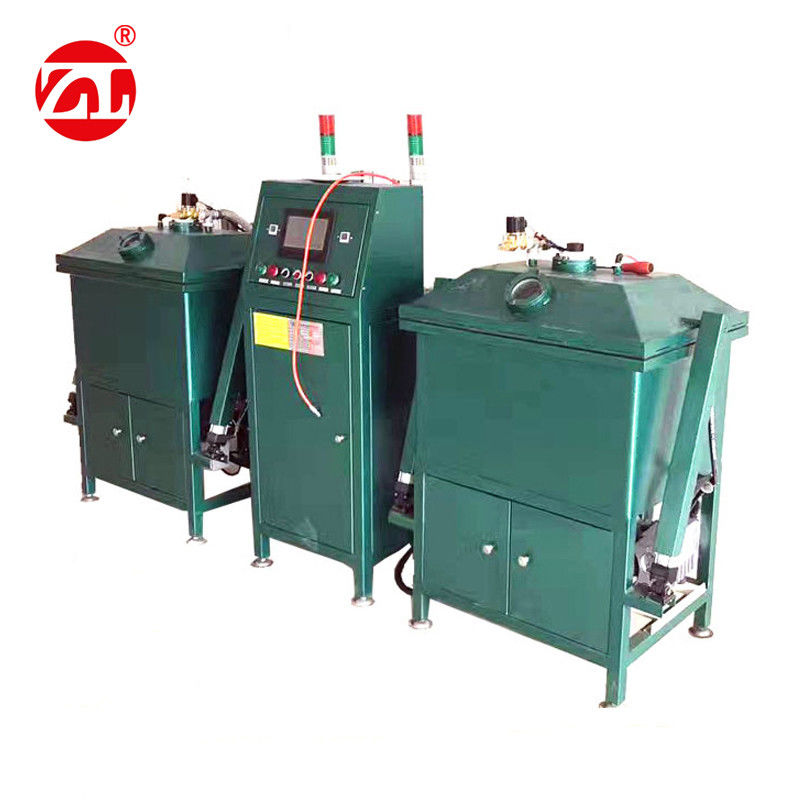

Large Image : PLC Control Automatic Vacuum Immersion Machine Double Cylinder

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1034B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	PLC Control Automatic Vacuum Immersion Machine Double Cylinder is Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Detailed Product Description

Power:	1HP	Material:	Sheet Metal + Plating
Color:	White Or Customize	Ositive Pressure In Cylinder:	0.6MPa (6.12KG/CM)
Negative Pressure In Cylinder:	1.02×10MPa	Single Cylinder Inner Dimension:	L700 * W530 * H200mm
Warranty:	12 Month	External Dimensions:	L1500 * W900 * H1100mm
Highlight:	cable testing device , cable flex tester

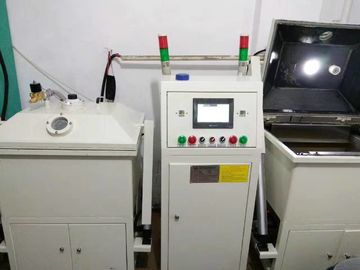

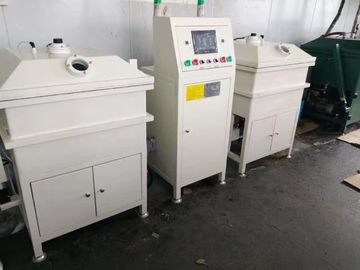

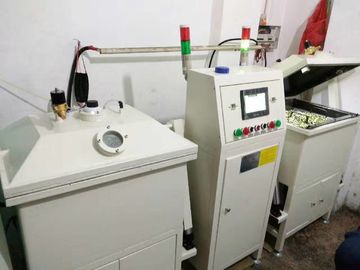

PLC Control Automatic Vacuum Immersion Machine Double Cylinder

Product Overview

This advanced PLC-controlled automatic vacuum immersion machine features a double cylinder design with precision sealing and automated operation for efficient industrial processing.

Key Features

12mm imported silicone seal system for superior sealing performance
Fully automated operation: automatic lid opening, gas charging/discharging, and liquid level adjustment
PLC + touch screen control system effectively prevents pin dip paint and reduces secondary solder
Human-machine interface (Weilun color 7 inch) touch screen with Mitsubishi PLC control
Programmable parameters with storage for 0-50 different data sets
Adjustable dipping time (0-999 seconds) with alarm time, second vacuum, automatic air intake, and automatic lid opening functions
Stepper motor-controlled liquid level adjustment with height (0.1-60mm) and speed control
XD-020-380V vacuum pump for rapid vacuum with time-controlled settings
High-quality construction with 6mm GB steel vacuum box and international quality steel welded vacuum cover

Technical Specifications

Parameter	Specification
Power Supply	AC220V / 380V 50Hz / 60Hz
Power	1HP
Positive Pressure in Cylinder	0.6MPa (6.12KG/CM)
Negative Pressure in Cylinder	1.02×10MPa
Inner Dimension	L700 × W530 × H200mm
External Dimensions	L1500 × W900 × H1100mm
Weight	Approximately 220Kg
