Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation

Name: Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Brand: ZL
SKU: ZL-1034
Rating: 4.7 (148 reviews)

Large Image : Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1034

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Detailed Product Description

Product Name:	Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation	Material:	Sheet Metal + Plating
Color:	White Or Customize	Ositive Pressure In Cylinder:	0.6MPa (6.12KG/CM)
Negative Pressure In Cylinder:	1.02×10MPa	Inner Dimension:	L700 * W530 * H200mm
Warranty:	12 Month	External Dimensions:	L1500 * W900 * H1100mm
Power:	1HP	Key Word:	Vacuum Impregnation
High Light:	cable testing device , cable harness tester

PLC Control Single Cylinder Vacuum Impregnation Equipment

Product Description:

1.This machine adopts man-machine interface (Weilun color 7 inch) touch screen + (Mitsubishi) PLC control; All parameters can be programmed through the man-machine interface, and can store 0-50 different data sets.
2, by the stepper motor control the level of rise and fall, the height of the liquid level adjustable (0.1-60mm) and speed adjustable.
3, and the dipping time adjustable (0-999 seconds), at the same time with the alarm time, the second vacuum, automatically into the air, automatically open the lid and other functions.
4, the vacuum pump selection XD-020-380V, vacuum rapid, vacuum can be set (time control)
5, the vacuum box L700 * W 530 * H400 selection of high quality steel GB 6mm, vacuum cover selection of international quality steel welded together.
6, sealing system used 12mm imported silicone seal for sealing.
Automatically open the lid, automatic charge and discharge gas, liquid level automatic lift, PLC + touch screen control, can effectively prevent the pin dip paint, reduce the secondary solder!

ZL-1034A Vacuum Impregnation Machine(Single Cylind...

Parameter:

Power	AC220V / 380V 50Hz / 60Hz
Power	1HP
Positive pressure in cylinder	0.6MPa (6.12KG/CM)
negative pressure in cylinder	1.02×10MPa
Inner dimension	L700 * W530 * H200mm
External dimensions	L1500 * W900 * H1100mm
Weight	about 220Kg

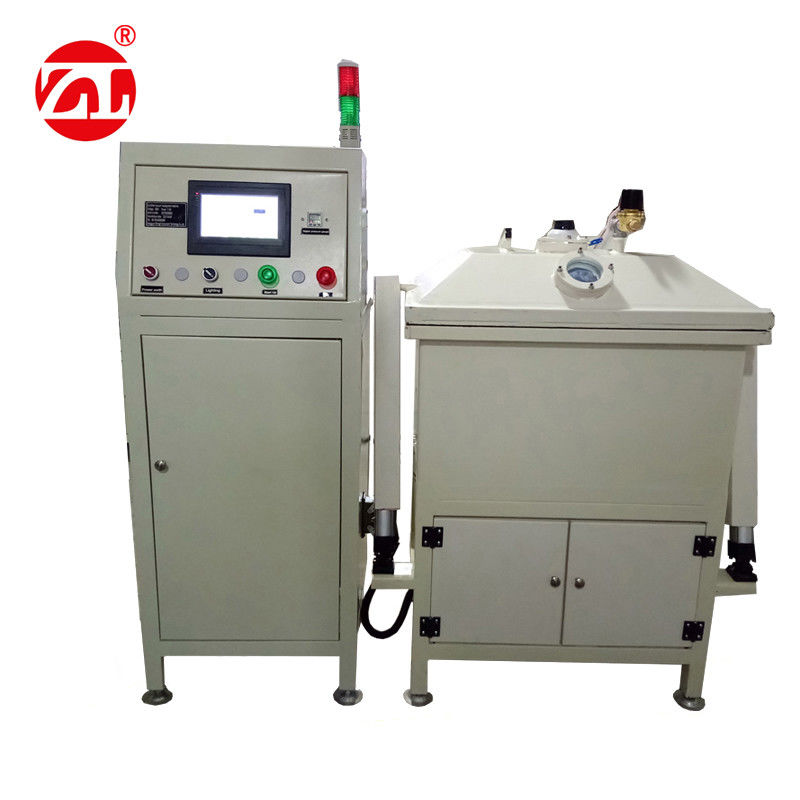

Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation 0

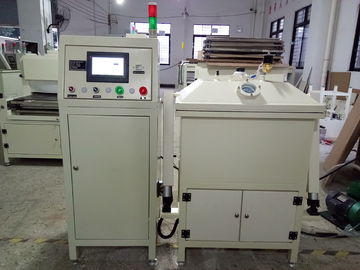

Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation 1

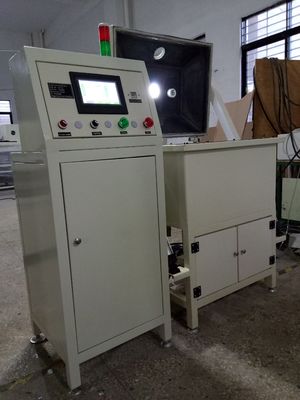

Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation 2
