Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine

Large Image : Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1009

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine is packaged within safety wooden case.
Delivery Time:	3-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 set per monfth

Contact Now

Detailed Product Description

Power:	220v 50hz	Diameter Range:	0.08 ~ 0.8mm
Drawing Speed:	250 ~ 300mm/min	Starting Length:	250mm
Extended Range:	0 ~ 48%	Display Accuracy:	0.1%
Highlight:	cable testing device , cable flex tester

Wire And Cable Testing Machine, Aluminum / Copper Elongation Testing Machine

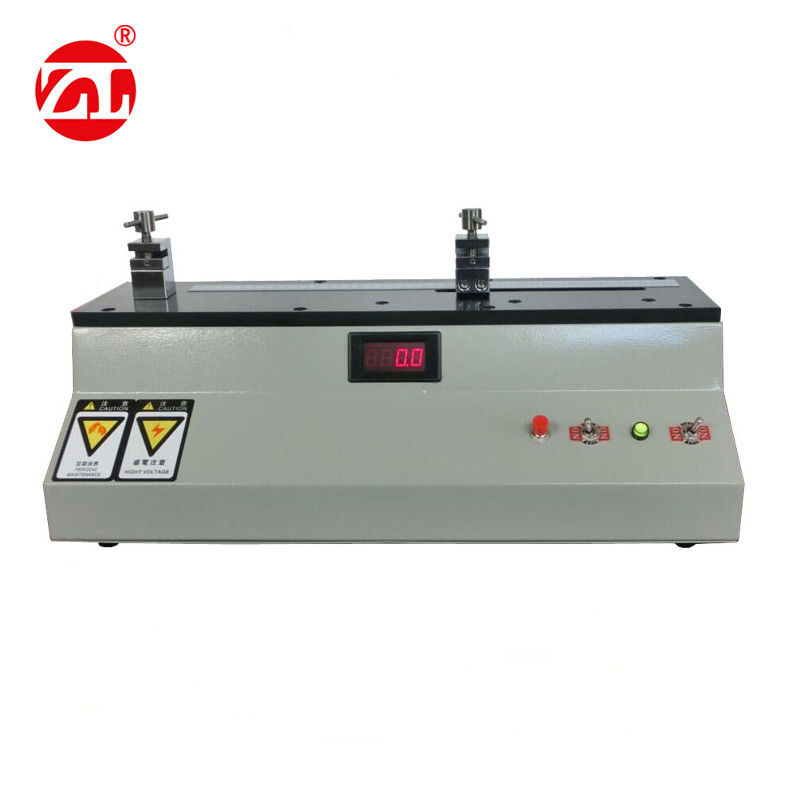

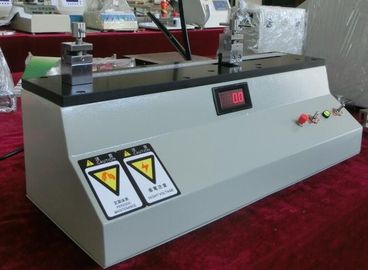

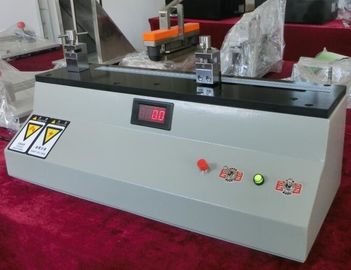

Cable and Wire Elongation Testing Machine

Cable and Wire Elongation Test Machines are designed for measuring elongation in aluminum, copper, iron, and other metal materials. These testers utilize advanced software programs and sophisticated electronic sensing technology to accurately measure the elongation of tensile specimens. The system automatically converts measurements into percentage values displayed on an LED screen.

With integrated conductive wire technology and advanced control systems, this equipment automatically calculates high-precision percentage values. The system offers fully automatic operation with simple controls, easy-to-read displays, and accurate measurement results.

Key Features

Advanced control technology for automatic high-precision percentage calculations
Fully automatic operation with simple user interface
Easy-to-read displays with accurate measurement values
Ideal choice for wire-like material elongation testing
Sophisticated electronic sensing technology

Technical Specifications

Parameter	Specification
Product Name	Cable And Wire Elongation Test Machine
Diameter Range	0.08 ~ 0.8mm
Drawing Speed	250 ~ 300mm/min
Starting Length	250mm
Extended Range	0 ~ 48%
Display Accuracy	0.1%
Input Power	AC220V 50/60HZ
Dimensions	500 × 210 × 240 (mm)
Weight	13kg
