IEC60243 Voltage Breakdown Tester

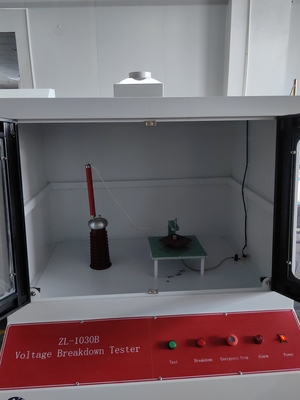

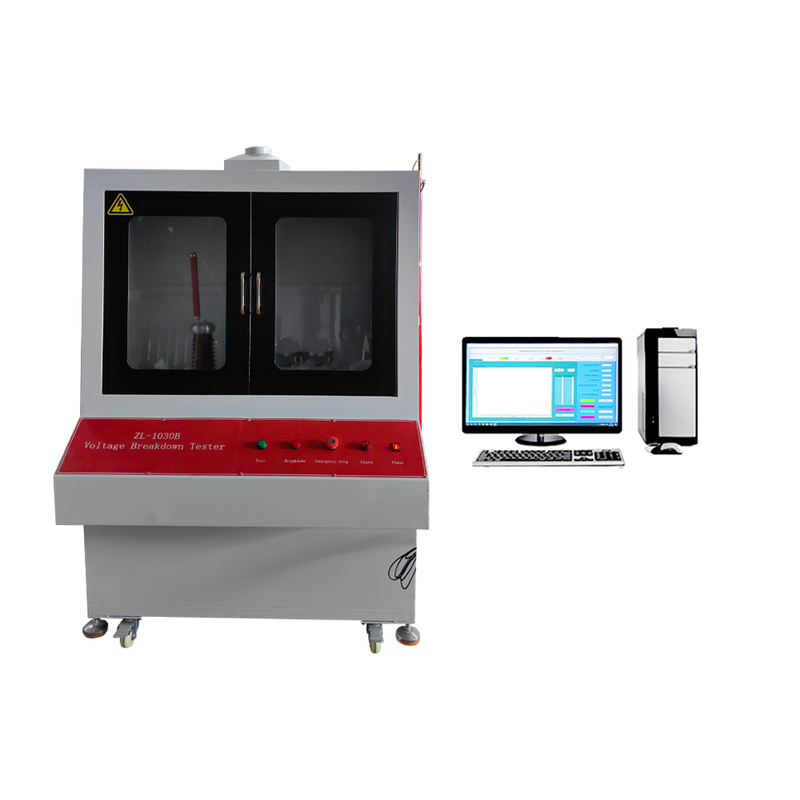

Large Image : IEC60243 Voltage Breakdown Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1030

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	US $6000-8000/SET
Packaging Details:	IEC60243 Voltage Breakdown Tester is Packed in a polybag, then packed as export safety wooden case
Delivery Time:	14 work days
Payment Terms:	L/C, D/A, T/T, MoneyGram, Western Union
Supply Ability:	30 SETS/month

Contact Now

Detailed Product Description

Name:	IEC60243 Voltage Breakdown Tester	Test Voltage:	AC 0~50 KV
Continuously Adjustable:	DC 0~50 KV	Transformer Capacity:	10 KVA
Breakdown Voltage:	0~50kV	Boost Speed:	6 Positions In 50, 100, 200, 500, 1000, 2000 (KV/S)
Boost Speed Regulation:	For Automatic Electric Speed Regulation	Voltage Measurement Accuracy:	≤ 2%
Leakage Current Selection:	1~20 MA
Highlight:	IEC60243 voltage breakdown tester , voltage breakdown tester for mobile phones , mobile phone test equipment with warranty

IEC60243 Voltage Breakdown Tester

Application:

Mainly applicable to solid insulating materials such as: plastics, films, resins, mica, ceramics, silica gel, glass, insulating varnish, etc. In air or liquid medium, measuring power frequency (48~62Hz) or corresponding DC voltage breakdown strength and Withstand voltage time.

Applicable to continuous uniform boost or step-up boost, apply AC / DC voltage to the sample until breakdown, measure the breakdown voltage value, calculate the breakdown strength of the sample; use the rapid boost method to put the voltage Raise to the specified value, and the sample will not break down for a certain period of time. The specified value is the value of the withstand voltage of the sample.

Standards compliant:

It complies with IEC60243-1 "Test method for electrical strength of solid insulating materials - Test under power frequency", IEC 60243-2 "Test method for electrical strength of solid insulating materials - Corresponding to DC voltage test" and ASTM D149 test standard requirements.

Technical Parameters:

1. Test voltage	2. AC 0~50 kV ,continuously adjustable; DC 0~50 kV, continuously adjustable (100KV option)
2. Transformer capacity	10 KVA
3. Breakdown voltage	0~50kV
4. Boost speed	6 positions in 50, 100, 200, 500, 1000, 2000 (KV/S)
5. Boost speed regulation	for automatic electric speed regulation
6. Voltage measurement accuracy	≤ 2%
7. Leakage current selection	1~20 mA
8. Test method	DC test, AC test
9. Boost mode	automatic program-controlled boost
10. Power frequency power frequency	50Hz sine wave
11. Power supply	AC220V 50/60Hz
12. Dimensions	L 1400* W 1040* H 1500 mm
13. Weight	200KG

IEC60243 Voltage Breakdown Tester 0
