EN ISO19956 BS-5131 SATRA TM21 Heel Continuous Impact Tester

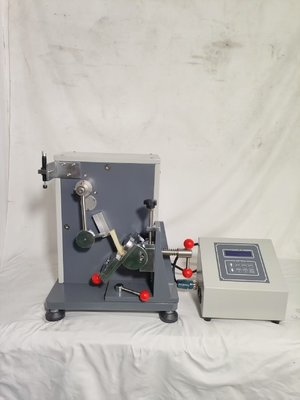

Large Image : EN ISO19956 BS-5131 SATRA TM21 Heel Continuous Impact Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7027

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Heel Continuous Impact Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	Heel Continuous Impact Tester	Pendulum Rod Diameter:	(12.5 ± 1.0) Mm
Impact Energy:	(0.68 ± 0.02) Mm	Impact Hammer:	Diameter (57 ± 1) Mm, Thickness (20 ± 1) Mm
Test Speed:	(60 ± 1) R/min	Weight:	68kg
Highlight:	leather testing equipment , leather measuring machine

EN ISO19956 BS-5131 SATRA TM21 Heel Continuous Impact Tester

Summary:

ZL-7027 heel continuous impact tester is for female high-heeled and middle-heeled shoes, the red edge continuous impact heel in a certain energy and frequency until the heel cracking, Through it to know the withstand impact index of heel, and determine the durable quality of heel.

The heel tip is upward and the heel shaft is fixed upright on the fixed tray of the heel fatigue tester. The impact head of the pendulum of the heel fatigue tester impacts the heel vertically with a constant energy (0.68J) until it fails or reaches the desired number of impacts.

Corresponding Standard:

QB/T2864,EN ISO19956,BS-5131,SATRA TM21

Applicable Industry:

Female high-heel and middle-heel.

Technical Parameters:

Model	ZL-7027
Pendulum rod diameter	(12.5 ± 1.0) mm
Impact Energy	(0.68 ± 0.02) mm
Distance between the center of the pendulum drive shaft and the center of the impact hammer	(152 ± 2) mm
Impact Hammer	diameter (57 ± 1) mm, thickness (20 ± 1) mm
Impact head	Length (35 ± 2) mm, width (20 ± 1) mm, radius of rounded tip (3 ± 0.5) mm, thickness (6 ± 0.5) mm
Distance from the top of the impact head to the center of the impact hammer	(63.5 ± 2) mm
Test speed	(60 ± 1) r/min
Counter	LCD display 0-9999, 9999
Weight	Approximately 68 kg
Power	1ζ, AC220V, 3A

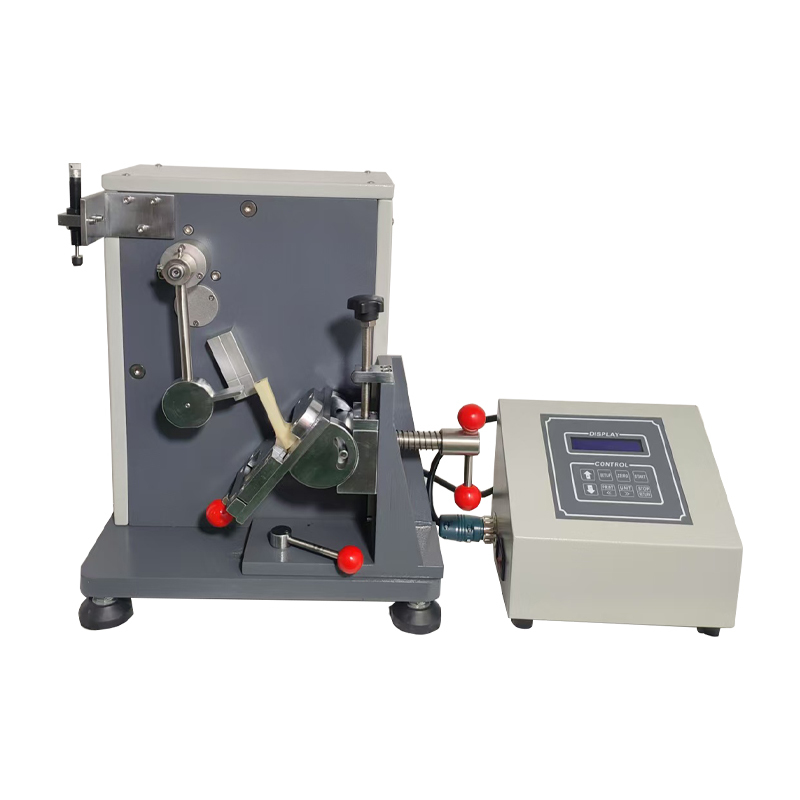

EN ISO19956 BS-5131 SATRA TM21 Heel Continuous Impact Tester 0
