ASTM D1922 ISO 6383 Film Elmendorf Tearing Tester | Plastic Film Tear Resistance Test Equipment

Large Image : ASTM D1922 ISO 6383 Film Elmendorf Tearing Tester | Plastic Film Tear Resistance Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9041

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS1999
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Elmendorf Tearing Tester	Measurement Range:	10- 16000mN
Resolution:	1mN	Accuracy:	0.5%
Tearing Force Arm:	(104 ± 1) Mm	Initial Tearing Angle:	27.5° ± 0.5
Distance Between Clamps:	(2.8 ± 0.3) Mm	Specimen Notch Length:	(20 ± 0.5) Mm
Highlight:	ASTM D1922 film tearing tester , ISO 6383 plastic film tear tester , film tear resistance test equipment

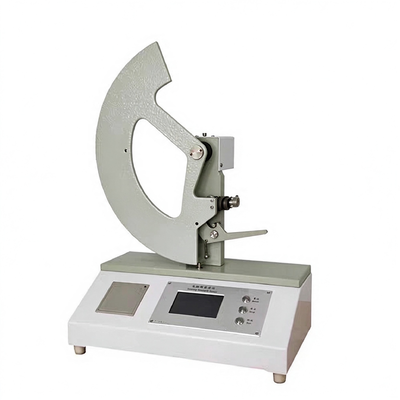

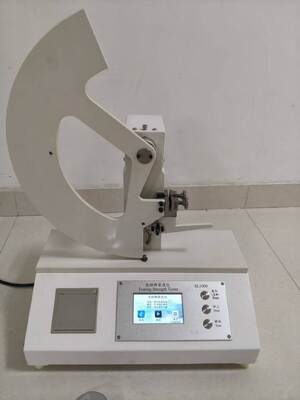

ASTM D1922 ISO 6383 Film Elmendorf Tearing Tester

Professional plastic film tear resistance test equipment designed for comprehensive material testing across multiple industries.

Scope of Application

The tearing tester is professionally applicable for tear resistance testing of various materials including:

Films, thin sheets, and soft polyvinyl chloride
Polyvinylidene chloride (PVDC) and waterproof membranes
Woven materials, polyolefins, and polyester
Paper, paperboard, textiles, and non-woven fabrics
Electrical insulating tapes and metal foils

The ZL-9041 tearing tester is a powerful, multi-industry universal instrument featuring modern design and enhanced functionality with advantages in value, accuracy, safety, and flexibility.

Test Principle

The pendulum is raised to a specific height to endow it with potential energy. When the pendulum swings down freely, it utilizes this stored energy to tear the specimen. The computer control system calculates the energy consumed during tearing to determine the force required.

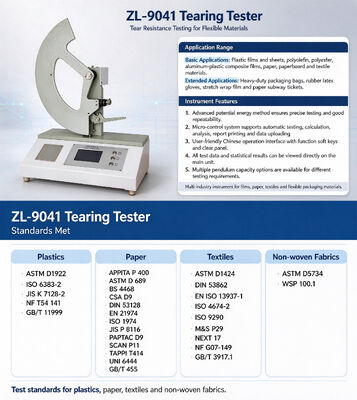

Application Range

Basic Applications: Plastic films and sheets (polyolefin, polyester, aluminum-plastic composite films), paper and paperboard, textile materials.

Extended Applications: Heavy-duty packaging bags, rubber latex gloves, stretch wrap film, paper subway tickets.

Standards Met

Material Type	Standards
Plastics	ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141, GB/T 11999
Paper	APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444, GB/T 455
Textiles	ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149, GB/T 3917.1
Non-woven Fabrics	ASTM D5734, WSP 100.1

Instrument Features

Advanced calculation method (potential energy method) ensures precise testing and excellent repeatability
Micro-control system enables automatic testing, calculation, result analysis, report printing, and data uploading
User-friendly control system with Chinese operation interface and simple, convenient operation
All function buttons are soft keys with concise, clear operation panel
All data and statistical results can be freely viewed within the main unit
Equipped with multiple pendulum capacity options to meet different testing requirements
