Cable Bending Testing Machine IEC60227 IEC60245 Wire Flexing Fatigue Tester for Power Cord Repeated Bending Resistance Test

Large Image : Cable Bending Testing Machine IEC60227 IEC60245 Wire Flexing Fatigue Tester for Power Cord Repeated Bending Resistance Test

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1042B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2600-4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	D/A,L/C,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Test Rate:	Adjustable From 5 To 60 Cycles/min (LED Display)	Total Counter:	0 To 99999999 (preset)
Bending Angle:	5° To 180° (±90°)	Test Wire Diameter:	1 To 20mm (customizable)
Test Stations:	2 Sets	Weights:	2 Each Of 100/200/300/500/1000g (customizable)
Sample Length:	1 Meter	Name:	Wire Flexing Fatigue Tester
Highlight:	Cable bending testing machine with warranty , Wire flexing fatigue tester IEC60227 , Power cord repeated bending resistance tester

Cable Bending Testing Machine IEC60227 IEC60245 Wire Flexing Fatigue Tester for Power Cord Repeated Bending Resistance Test

Product Overview

The cable bending tester is designed for manufacturers and quality inspection departments to perform bending (flexing) tests on cables. The test method involves securing the cable to a clamp, which then swings left and right a predetermined number of times until electrical continuity is lost. The machine automatically stops operation at this point, and the total number of swings is recorded for analysis.

Technical Specifications

Test Rate	Adjustable from 5 to 60 cycles/min (LED display)
Total Counter	0 to 99,999,999 (preset)
Bending Angle	5° to 180° (±90°)
Test Wire Diameter	1 to 20mm (customizable)
Test Stations	2 sets
Weights	2 each of 100/200/300/500/1000g (customizable)
Sample Length	1 meter, 600mm attached to bending arm, weights placed 215mm below clamping device
Circuit Protection	24V circuit breaker detector
Bending Guide Wheel	50mm diameter (customizable)
Power Supply	AC220V 50HZ ±10%

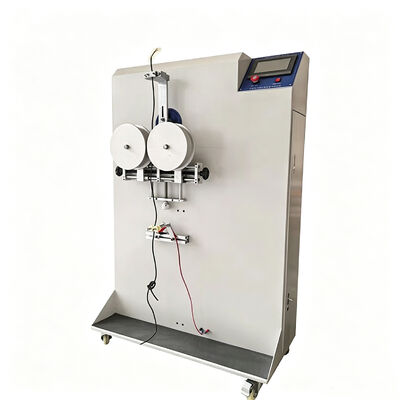

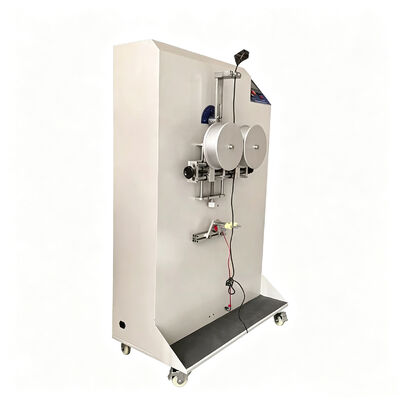

Product Image
