ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

Large Image : ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Accuracy:	Varies By Requirement	Power:	Varies By Requirement
Protection Class:	IP56	Voltage:	220 V
Test Amount:	2 Sets Or 4 Sets	Drop Width:	350mm
Drop Height:	500 Or 1000mm	Test Speed:	5~20 Times/min
Test Cycle:	1~999,999 Times	Dimension:	1250x1500x1680mm
Weight:	250kg	Power Supply:	AC220V 50Hz 5A
Model:	RS-DP-12A	Material:	AL Outer Frame
Display Type:	Touching Screen
Highlight:	ASTM D5276 drop fatigue tester , IEC60068 earphone interphone tester , computer height fall testing machine

ASTM D5276 IEC60068 Earphone Interphone Computer Height Fall Down Repeatedly Drop Fatigue Tester

This machine is designed to assess the impact of unintentional product drops during actual use on product performance. It is suitable for original-gesture drop testing of mobile phones, e-readers, CDs, MP3 players, PDAs, telephones, e-dictionaries, and other consumer electronic products.

The tester is also used for continuous rolling random drop tests inside 0.5m or 1m height barrels for electronic products or components like connectors and plugs.

Key Features

Conforms to IEC60068-2-32 and ASTM D5276 standards
Available in two models: RS-DP-12 (Economic type) and RS-DP-12A (Touch screen type + AL Outer frame)
Adjustable drop height (500mm or 1000mm)
Variable test speed (5-20 times/min)
Programmable test cycles (1-999,999 times)
Includes acrylic protective cover for safety

Technical Specifications

Parameter	RS-DP-12 (Economic)	RS-DP-12A (Touch Screen)
Test Amount	2 or 4 sets	2 or 4 sets
Drop Width	350mm	350mm
Drop Height	500mm or 1000mm	500mm or 1000mm
Test Speed	5-20 times/min	5-20 times/min
Test Cycle	1-999,999 times	1-999,999 times
Dimensions (WxDxH)	1300x1200x1500mm	1250x1500x1680mm
Weight	165kg	250kg
Power Supply	AC220V 50Hz 5A or as specified by user

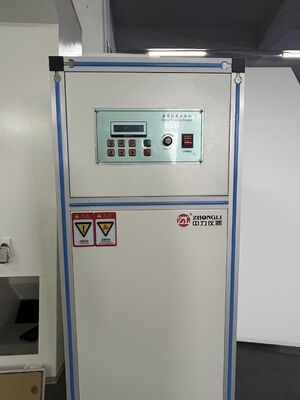

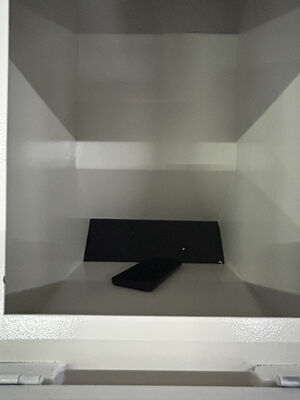

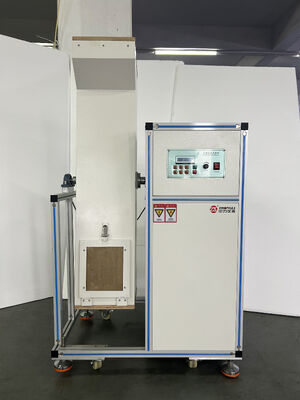

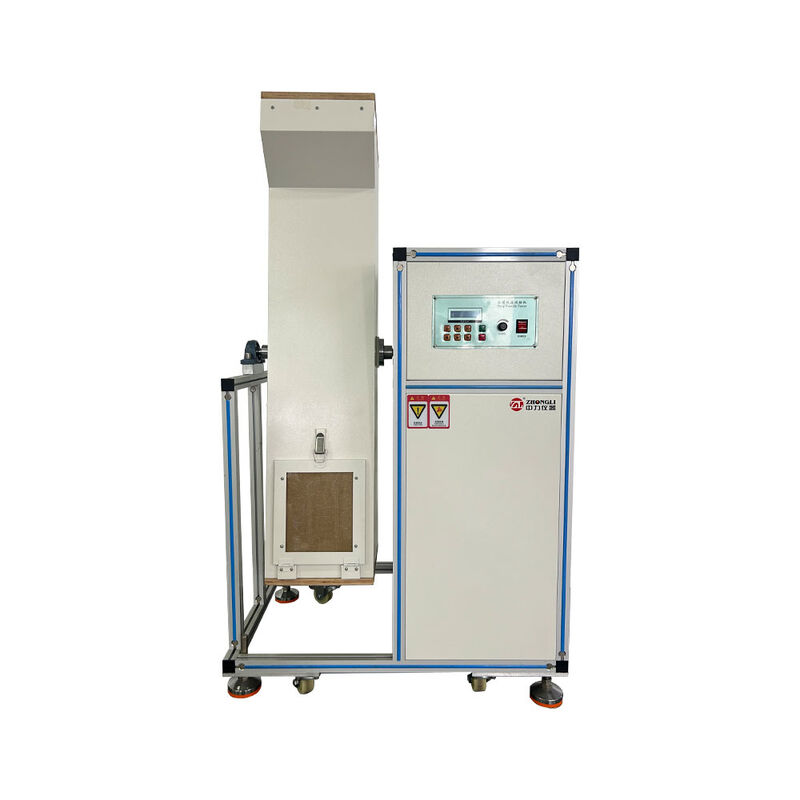

Product Images

About Zhongli Instrument Technology

We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specializing in manufacturing lab testing equipment.

With over 18 years of experience, our products have sold well in Europe, America, and Southeast Asia markets, totaling more than 110 countries. Our equipment covers a wide range of industries including rubber and plastics, food, packaging, and electronics, suitable for scientific research units, quality inspection institutions, and academic fields.

In addition to standard machines, our R&D team can customize equipment to meet your specific requirements.

Frequently Asked Questions

1. How to choose the most suitable mechanical equipment?

Our professional team will provide recommendations based on your testing requirements and specifications.

2. What's the delivery term?

Most items are in stock. For custom orders, delivery typically takes 15-20 working days after deposit receipt.

3. Do you accept customization service?

Yes, we offer both standard and customized machines tailored to your specific needs.

4. Can we visit your factory before ordering?

We welcome factory visits and can assist with hotel arrangements and airport pickup.

5. What is your warranty policy?

We offer a 2-year warranty including technical support and parts replacement when necessary.
