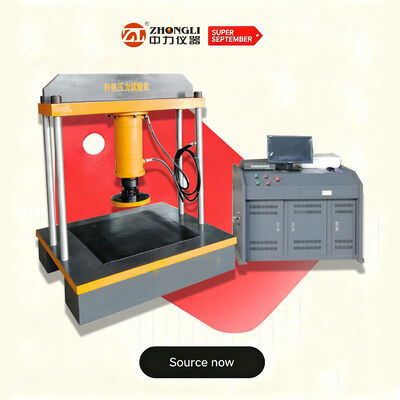

Computer Control Electro-hydraulic Servo Compression Tester | for Manhole Cover Strength Test | 2000kN Capacity

Large Image : Computer Control Electro-hydraulic Servo Compression Tester | for Manhole Cover Strength Test | 2000kN Capacity

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Test Force:	600KN/1000KN	Effective Test Space:	1200mmx1200mm/1400mm×1400mm
Table Height:	300mm	Force Value Accuracy:	≤ ± 1%
Loading Speed Range:	0.1 ~ 25KN/s	Piston Stroke:	300mm
Deformation Measurement Range:	0-20mm	Deformation Resolution:	0.01mm
Load Indication Accuracy:	0.1KN	Loading Method:	Electro-hydraulic
Control Mode:	Manual / Electro-hydraulic Servo	Loading Media:	46#/68# Anti-wear Hydraulic Oil
Motor Power:	0.75KW	Voltage:	380V/220V
Host Weight:	3000Kg
Highlight:	electro-hydraulic servo compression tester , manhole cover strength tester , 2000kN universal testing machine

Computer Control Electro-hydraulic Servo Compression Tester | for Manhole Cover Strength Test | 2000kN Capacity

Product Description

This machine is designed according to industry standards including CJ/T3012-1993, CJ/T121-2000, JC889-2001, and GB/T 23857-2009 for testing the bearing capacity and deformation of manhole covers. Its structural performance meets all test specification requirements.

Main Technical Parameters

Parameter	Value
Test force	600KN/1000KN
Effective test space	1200mmx1200mm/1400mm×1400mm (customizable)
Table height	300mm
Force value accuracy	≤ ± 1% (better than level 1)
Loading speed adjustment range	0.1 ~ 25KN / s (manual stepless speed regulation)
Piston stroke	300mm
Deformation measurement range	0-20mm
Deformation measurement resolution	0.01mm
Load indication accuracy	0.1KN
Loading method	Electro-hydraulic
Control mode	Manual / electro-hydraulic servo speed
Loading media	46#/68# anti-wear hydraulic oil
Motor power	0.75KW
Voltage	380V/220V
Host size	1200mm × 1400mm × 1500mm (length × width × height)
Host weight	3000Kg

Main Features

High rigidity structure ensures test safety
Loading cylinder placed below with 300mm table height for easy test piece handling
Ball joint connection between rigid block and piston push-out end ensures accurate bearing capacity measurement
Special sealing material provides high sealing, low friction and long life
Professional test oil pump motor unit offers low noise and long lifespan
Ultra-fine oil filter maintains oil circuit cleanliness for long-term operation
Digital display shows real-time force value and peak value

Standard Configuration
