Electro-hydraulic Steel Bending Tester | for Rolled Steel Rebar Testing | Automatic Bend & Rebound Test

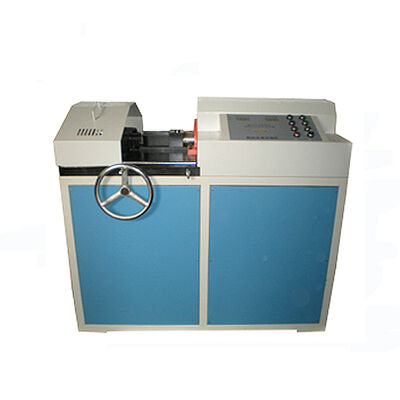

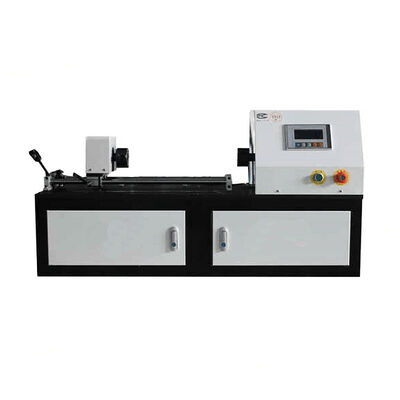

Large Image : Electro-hydraulic Steel Bending Tester | for Rolled Steel Rebar Testing | Automatic Bend & Rebound Test

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Maximum Test Force:	10-100kN	Testing Force Accuracy:	± 1%
Displacement Resolution:	0.01m	Stretching Stroke:	650mm
Machine Dimensions:	7604001700mm	Deformation Error:	Less Than (50+01.15L)um
Weight:	350kg	Wire Rod Diameter:	φ8--φ40mm
Max Force:	160kN	Bent Roller Diameter:	36,42,48,54,56,60,64,66,72,75,80,112 Mm
Displacement Stroke:	400mm	Roller Distance:	135-640mm
Sample Dimensions:	(6-40)×50mm	Bending Angle Range:	0--180°
Main Motor Power:	4kw
Highlight:	electro-hydraulic steel bending tester , automatic rebar bend test machine , rolled steel rebar rebound tester

Electro-hydraulic Steel Bending Tester | for Rolled Steel Rebar Testing | Automatic Bend & Rebound Test

Electro-hydraulic Rolled Steel Bending Tester

This advanced bending tester is designed for precise evaluation of rolled steel rebar, offering automatic bend and rebound testing capabilities with electro-hydraulic operation.

Product Features

Compact and rigid structure for convenient, fast bending tests
Hydraulic two-way oil cylinders enable fast loading with high efficiency
Pressure sensor in hydraulic circuit ensures proper bending stress and load
Quick-change piston front end design for different specifications
Exclusive support distance adjustment mechanism with bend stroke control
Precision bending angle indicator and reverse bending head for reliable tests
Synchronized curved jaw adjusts bending distance for 180° bend tests
Photoelectric encoder measures angles with accurate control display
Built-in oxide skin recycling system with internal feed tray

Technical Parameters

Parameter	Specification
Diameter of wire rod	φ8-φ40mm
Maximum force	160kN
Diameter of bent roller	36,42,48,54,56,60,64,66,72,75,80,112 mm
Displacement stroke	400mm
Roller distance	135-640mm
Sample thickness × height	(6-40)×50mm
Radius of bent diameter	φ10-φ192mm (optional)
Curved jaw	φ25-φ32mm, 46×265mm
Bending angle range	0-180°
Maximum working pressure	31.5Mpa
Dimensions (L×W×H)	1250×800×1100mm
Weight	1200KG
Main motor power	4kw

Request Factory Pricing and Shipping Information

About Zhongli Instrument Technology

We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specializing in manufacturing lab testing equipment. Our products have been sold to over 113 countries, particularly favored by European and American markets.

Frequently Asked Questions

How to choose the most suitable mechanical equipment?

Our professional team will provide recommendations based on your testing requirements and specifications.

What's the delivery term?

Standard delivery is 15-20 working days after deposit. Urgent requests can be accommodated.

Do you accept customization service?

Yes, we offer both standard and customized machines to meet specific requirements.

Can we visit your factory before ordering?

We welcome factory visits and can assist with travel arrangements.

What is your warranty policy?

We offer a 2-year warranty with technical support and necessary parts replacement.

For more information, visit our official website: www.zltester.com
