20KN Universal Testing Machine | Mechanical Tensile Tester | Competitive Price for Material Testing

Large Image : 20KN Universal Testing Machine | Mechanical Tensile Tester | Competitive Price for Material Testing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Max Load:	5KN,1ton,2 Ton	Effective Measuring Range:	0.2%~100%(1grade)/0.4%~100%(0.5 Grade)
Measuring Accuracy:	Display The Value ±1%/Display The Value±0.5%	Tester Resolution:	Max Load 1/200000
Effective Testing Width:	390mm	Effective Tensile Stroke:	800mm;1000mm;1200mm
Range Of Testing Speed:	0.001~200mm/min ; 500mm/min	Accuracy Of Displacement Measurement:	Tolerance: ±0.5%/ Tolerance: ±0.2%
Deformation Measured System:	Min Span:10mm, Max Range:800mm	Accuracy Of Measured Deformation:	Tolerance: ±0.5%
Overload Protection:	Overload 10%,automatic Protection	Machine Size:	80x55x220cm
Power Supply:	220V,50HZ	Power:	0.4KW
Machine Weight:	250kg
Highlight:	20KN universal testing machine for material testing , mechanical tensile tester with competitive price , universal testing machine with warranty

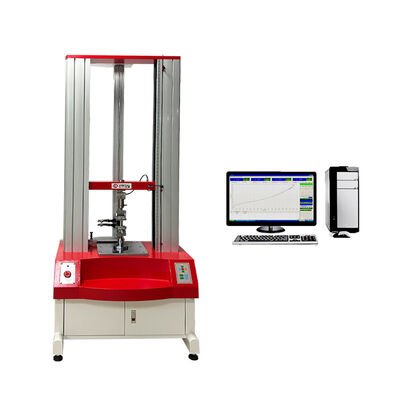

20KN Universal Testing Machine | Mechanical Tensile Tester

Product Overview

The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement and control.

Key Features

Tests constant-velocity loading and displacement
Simple operation ideal for production line quality control
Equipped with large deformation extensometer for flexible materials
Photoelectric encoder for displacement measurement
Automated calculations for stress, elongation rate, tensile strength, and elastic modulus
Computer display of dynamic test curves and data processing

Applications

Ideal for testing flexible materials with large deformation including rubber, plastics, leather, and more. Performs tensile, tear, adhesive strength, and peel tests.

Technical Specifications

Parameter	Specification
Max Load	5KN, 1ton, 2 ton
Accuracy Grade	1% / 0.5%
Effective Measuring Range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Testing Speed Range	0.001~200mm/min; 500mm/min (1000mm/min optional)
Effective Testing Width	390mm (customizable)
Power Supply	220V, 50HZ, 0.4KW
Machine Weight	250kg

Industries Served

Rubber & Plastics, Metallurgy, Manufacturing, Electronics, Automotive, Textiles, Packaging, Food, Medical Equipment, Research Laboratories, and more.

Frequently Asked Questions

How to choose the most suitable Mechanical Equipment?

Our professional team will provide recommendations based on your specific testing requirements and specifications.

What's the delivery term?

Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization service?

Yes, we offer both standard and customized machines tailored to your specific requirements.

What is your warranty policy?

We offer a two-year warranty with technical support and parts replacement as needed.
