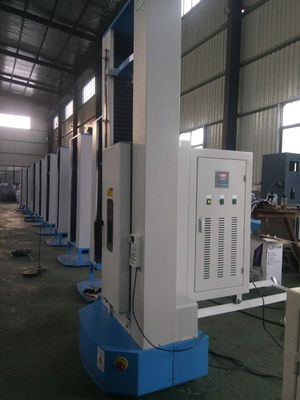

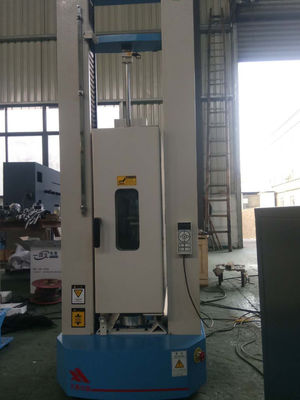

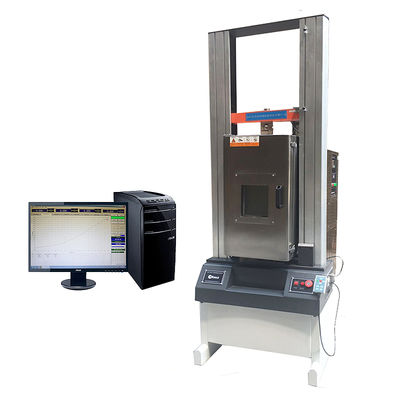

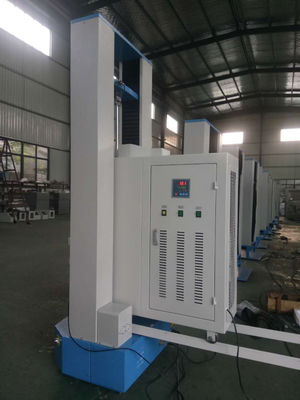

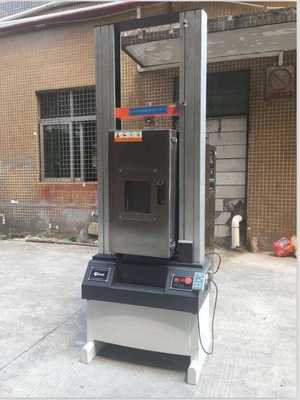

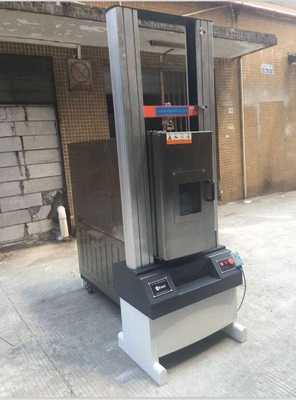

High Temperature Universal Tensile Strength Testing Machine
Product Overview
The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is ideal for quality control in production lines, suitable for testing both metallic and non-metallic materials with loads under 1 ton.
Key Functions
This testing machine is designed for flexible materials requiring large deformation measurements, including rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a specialized extensometer for accurate large deformation measurements.
Technical Features
- Photoelectric encoder for precise displacement measurement
- Embedded microcontroller with multifunctional software for measurement, control, calculation, and data storage
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus
- Computer display of dynamic testing curves with post-test data analysis capabilities
- Graphical processing module for curve amplification and report generation
Industry Applications
Widely used across multiple industries including quality control, rubber & plastics, metallurgy, machinery manufacturing, electronics, automotive, textiles, packaging materials, medical equipment, research laboratories, and technical supervision departments.
Technical Specifications
| Parameter |
Specification |
| Model |
High Temperature Universal Tensile Strength Testing Machine |
| Max Load |
5KN, 1ton, 2 ton |
| Accuracy Grade |
1% / 0.5% |
| Effective Measuring Range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range |
0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Power Supply |
220V, 50HZ |
| Machine Dimensions |
80×55×220cm (L×W×H) |
| Weight |
250kg |
Related Products
We manufacture a complete range of universal tensile testing equipment to meet various industrial requirements.
