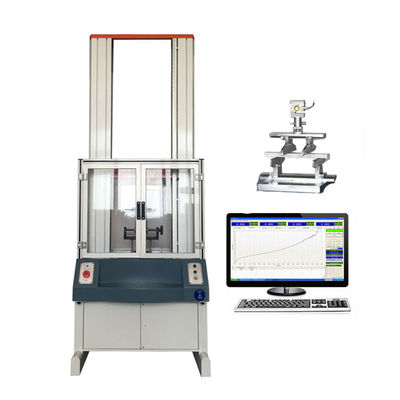

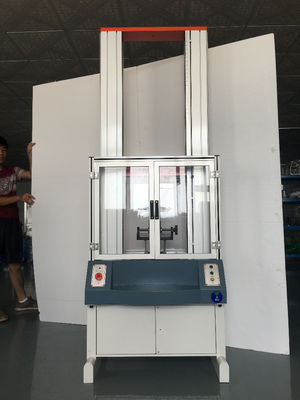

Computer Control Three Point Bending Flexural Strength Testing Machine with 5KN Load Cell and 1/200000 Force Resolution

Large Image : Computer Control Three Point Bending Flexural Strength Testing Machine with 5KN Load Cell and 1/200000 Force Resolution

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Model Number:	ZL-8001

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Load Cell:	5KN Or 1ton And 2 Ton Option	Force Resolution:	1/200000
Force Accuracy:	≤0.5%	Displacement Resolution:	1/1000
Displacement Accuracy:	≤0.5%	Speed Range:	0.01-500mm/min Or 1000mm/min
Tensile Stroke:	800mm;1000mm;1200mm	Testing Width:	380mm
Machine Size:	8055220cm(l* W* H)	Machine Weight:	About 250 Kg
Power Supply:	220V	Power Consumption:	About 2KW
Extensometer Resolution:	1/1000	Extensometer Accuracy:	≤0.5%
Units:	Kg, N, LB, TON, Can Be Exchanged
Highlight:	5KN Load Cell Testing Machine , 1/200000 Force Resolution Testing Machine , ≤0.5% Accuracy Flexural Strength Tester

Computer Control Three Point Bending Flexural Strength Testing Machine

Equipment Overview

This computer-controlled 3-point bending flexural strength test machine features a mechanical-electrical integrated design. It consists of a force-measuring sensor, transmitter, microprocessor, load drive mechanism, computer, and color inkjet printer. The high-precision electronic motor offers five-speed settings with plug-way connected components. The floor-standing model incorporates modern industrial design and ergonomic considerations.

Testing Capabilities

This versatile machine can test various materials including rubber, plastics, leather, metal, nylon wire, fabric, paper, and more for applications in aerospace, packaging, construction, petrochemical, electrical, and vehicle industries. Testing types include:

Stretch and compression
Bending and shear
Embedded relay and peeling
Tearing and crack analysis

Compliance Standards

GB/T4689.20-1996: Measuring fastness of leather's adhesion
QB/T2710-2005: Measuring leather's expansion and elongation rate
QB/T2711-2005: Measuring tear force of leather
QB/T2712-2005: Measuring leather's strength and stretch of spherical crack test

Standard Accessories

One-year warranty book with operating instructions
Fixture set
Tensile machine testing software
Brand computer and color printer set

Testable Parameters

Parameter	Measurement Capability
Tensile stress	Tensile strength
Rate of elongation at break	Fixed stress
Rate of stress at break	Tear strength
Value of force at any point	Rate of elongation at any point
Stress strength	Pull-out strength
Force of adhesion	Value of peak

Technical Specifications

Parameter	Specification
Model	Three Point Bending Flexural Strength Testing Machine
Load Cell	5KN or 1ton/2ton options
Force Resolution	1/200,000
Force Accuracy	≤0.5%
Power Magnification	7 automatic switching
Displacement Resolution	1/1,000
Displacement Accuracy	≤0.5%
Extensometer Resolution	1/1,000
Extensometer Accuracy	≤0.5%
Speed Range	0.01-500mm/min or 1000mm/min (customizable)
Effective Tensile Stroke	800mm, 1000mm, 1200mm (customizable)
Testing Width	380mm (expandable)
Power Supply	220V
Power Consumption	~2KW (varies by motor)
Dimensions (L×W×H)	~80×55×220cm
Weight	~250kg
Units	Kg, N, LB, TON (interchangeable)
