Electronic Tensile Grip with 5KN Load Cell, 1/200000 Force Resolution, and ≤0.5% Force Accuracy for Universal Testing Machines

Large Image : Electronic Tensile Grip with 5KN Load Cell, 1/200000 Force Resolution, and ≤0.5% Force Accuracy for Universal Testing Machines

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Model Number:	ZL-8001B

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Load Cell:	5KN Or 1ton And 2 Ton Option	Force Resolution:	1/200000
Force Accuracy:	≤0.5%	Displacement Resolution:	1/1000
Displacement Accuracy:	≤0.5%	Speed Range:	0.01-500mm/min Or 1000mm/min
Tensile Stroke:	800mm;1000mm;1200mm	Testing Width:	380mm
Machine Size:	8055220cm	Machine Weight:	250 Kg
Power Supply:	220V	Power Consumption:	2KW
Extensometer Resolution:	1/1000	Extensometer Accuracy:	≤0.5%
Units:	Kg, N, LB, TON
Highlight:	5KN Load Cell Tensile Grip , 1/200000 Force Resolution Tensile Grip , ≤0.5% Force Accuracy Tensile Grip

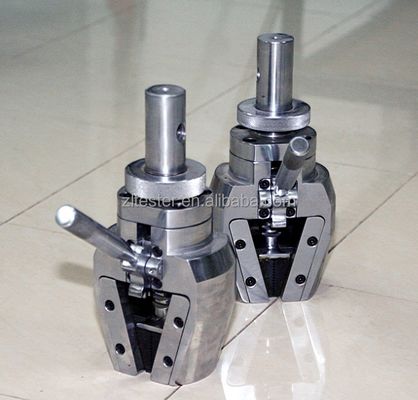

Tensile Test Machine Accessories Tensile Grip

Equipment Overview

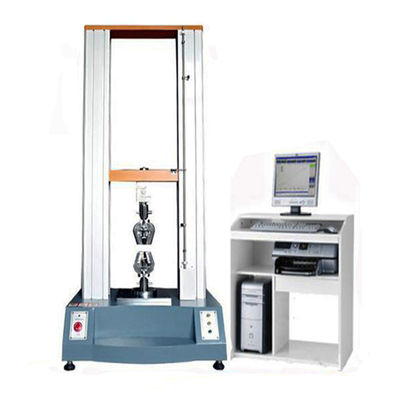

The Computer Control Tensile Test Machine is a mechanical-electrical integration system consisting of force-measuring sensor, transmitter, microprocessor, load drive mechanism, computer, and color inkjet printer. Featuring a high-precision electronic motor with five-speed settings, this floor-standing model combines modern industrial design with ergonomic considerations.

Testing Capabilities

This machine performs tests on various materials including:

Rubber, plastics, leather, and metals
Nylon wire, fabric, paper, and aerospace materials
Packaging, construction, petrochemical, electrical, and vehicle components

Test types include stretch, compression, bending, shear, embedded relay, peeling, tearing, crack analysis, and more.

Compliance Standards

GB/T4689.20-1996: Measuring fastness of leather's adhesion
QB/T2710-2005: Measuring leather's expansion and elongation rate
QB/T2711-2005: Measuring tear force of leather
QB/T2712-2005: Measuring leather's strength and stretch via spherical crack test

Included Accessories

One-year warranty book with operating instructions

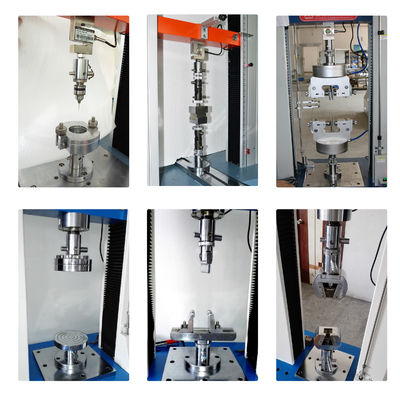

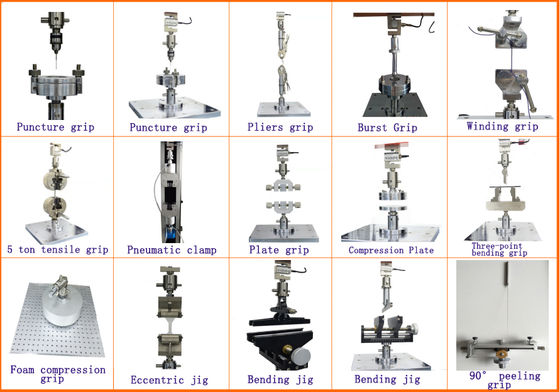

Fixture set
Tensile machine testing software
Brand computer and color printer set

Testable Parameters

Parameter	Measurement Capability
Tensile stress	Tensile strength
Rate of elongation at break	Fixed stress
Rate of stress at break	Tear strength
Force value at any point	Rate of elongation at any point
Stress strength	Pull-out strength
Force of adhesion	Peak value measurement

Technical Specifications

Parameter	Specification
Load Cell	5KN or 1ton/2ton options
Force Resolution	1/200,000
Force Accuracy	≤0.5%
Power Magnification	7 automatic switching levels
Displacement Resolution	1/1000
Displacement Accuracy	≤0.5%
Extensometer Resolution	1/1000
Extensometer Accuracy	≤0.5%
Speed Range	0.01-500mm/min or 1000mm/min (customizable)
Effective Tensile Stroke	800mm, 1000mm, 1200mm (customizable height)
Testing Width	380mm (expandable)
Power Supply	220V
Power Consumption	Approx. 2KW (varies by motor)
Dimensions	80×55×220cm (L×W×H)
Weight	Approx. 250kg
Measurement Units	Kg, N, LB, TON (interchangeable)
