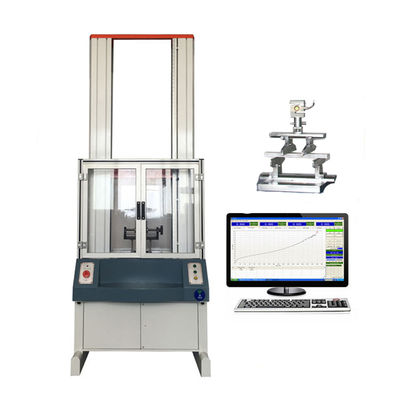

ZL-8001A Computer-Controlled Universal Testing Machine
Equipment Summary
The ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed control, wide force measurement range, and high sensitivity for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is ideal for quality control in production lines, particularly for testing non-metallic and metallic materials with loads under 1 ton.
Main Features
- Photoelectric encoder for precise displacement measurement
- Embedded microcontroller with multifunctional software for measurement, control, calculation, and data storage
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus
- Computer display of dynamic test curves with post-test data analysis capabilities
- Graphical processing module for curve analysis and report generation
Main Functions

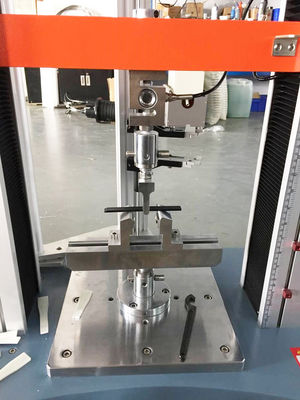

Designed for testing flexible materials with large deformations such as rubber, plastics, and leather. Capable of performing tensile, tear, adhesive strength, and peel tests. Equipped with specialized extensometers for measuring large material deformations.
Applicable Industries
Quality control, rubber & plastics, metallurgy, machinery manufacturing, electronics, automotive, textiles, packaging, food, medical equipment, civil nuclear, aviation, research laboratories, technical supervision, construction materials, ceramics, petroleum, and chemical industries.
Compliance Standard
GB/T16491-1996 Electronic Universal Testing Machine Standard
Technical Parameters
| Parameter |
Specification |
| Max Load |
5KN, 1ton, 2 ton |
| Accuracy Grade |
1% / 0.5% |
| Effective Measuring Range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring Accuracy |
±1%/±0.5% of displayed value |
| Tester Resolution |
1/200000 of max load |
| Effective Testing Width |
390mm (customizable) |
| Testing Speed Range |
0.001~200mm/min (500mm/min standard, 1000mm/min optional) |
| Power Supply |
220V, 50HZ, 0.4kw |
| Machine Dimensions |
80×55×220cm (L×W×H) |
| Machine Weight |
250kg |
About Our Company
Zhongli Instrument Technology Co., Ltd is a specialized manufacturer of laboratory testing equipment headquartered in Dongguan, Guangdong, China. With over 18 years of experience, our products are exported to more than 109 countries worldwide, particularly favored in European and American markets. Our equipment serves various industries including rubber, plastics, food packaging, electronics, and scientific research institutions.
Frequently Asked Questions
How to choose the most suitable testing equipment?
Our professional team will provide recommendations based on your specific testing requirements and specifications.
What's the delivery time?
Typically 15-20 working days after deposit receipt. Rush orders can be accommodated with special arrangements.
Do you offer customization?
Yes, we provide both standard and customized machines tailored to your specific testing needs.
What is your warranty policy?
Standard 2-year warranty including technical support and parts replacement. On-site engineer support available when necessary.
