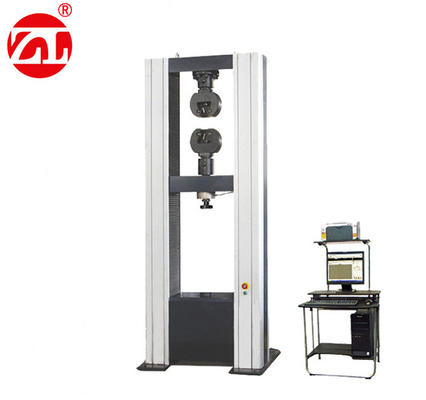

| Name: | 30ton Computer Controlled Universal Testing Machine Manufacturer | Model: | ZL-8007B |
|---|---|---|---|
| Maximum Test Force (KN): | 300 | Relative Error Of Deformation Value: | ＜±0.5% |
| Deformation Resolution: | Max. Deformation 1/500000 | Displacement Resolution(mm): | 0.001 |
| Dimension Of Main Machine (mm): | Approx. 1060×810×2280mm | Servo Motor Power (KW): | 3 |
| Total Weight (KG): | 1200 | ||
| High Light: | Computer Controlled Universal Testing Machine,300KN Universal Testing Machine |
||
Fields of Use:
The product is widely used in the mechanical property test of metal and non-metal materials such as tensile, compression, bending and shearing. With a wide range of attachments, it can also be used for the mechanical properties of profiles and components test. In the field of material testing such as rope, tape, silk, rubber, plastic, etc., where the sample deformation is large and the test speed is fast, it also has very wide application prospects. Applicable to quality supervision, teaching and research, aerospace, iron and steel metallurgy, automotive, construction and building materials and other test fields.
Based on Standards:
Meet the national standard GB/T228.1-2010 "metal materials room temperature tensile test method", GB/T7314-2005 "metal compression test method" requirements, in line with the GB, ISO, ASTM, DIN and other standards of data processing. It can meet the requirements of users and the standards provided.
Key Description:

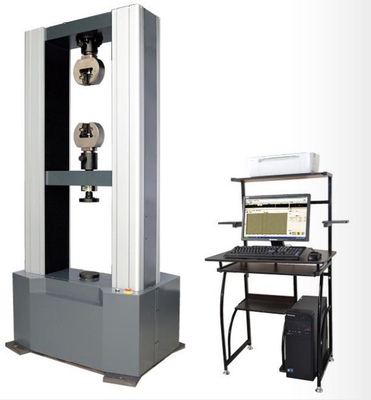

1.Mainframe:
The machine adopts double space door structure, upper space tension, lower space compression, bending. The cross beam is steplessly lifted. Transmission part adopts circular arc synchronous toothed belt, screw vice transmission, smooth transmission, low noise. Specially designed synchronous toothed belt deceleration system and precision ball screw vice drive the movement of the moving beam of the testing machine to achieve a gap-free transmission.
Technical Indicators:
| Maximum Test Force (KN) | 300 | |
| Test Force Measurement Range | 1%-100% | |
|
Relative Error of Test Force Indication Value |
<±0.5% | |
| Resolution of Test Force | 1/500000 of the maximum test force | |
| Deformation Measurement Range | 1%-100% | |
| Relative Error of Deformation Value | ＜±0.5% | |
| Deformation Resolution | Max. deformation 1/500000 | |
| Relative Error of Displacement Value | ＜±0.5% | |
| Displacement Resolution(mm) | 0.001 | |
| Speed Range | 0.01mm/min ~ 400mm/min |
Stepless speed control
|
| Stretching Stroke(mm) | 600 | |
| Compression Space (mm) | 600 | |
| Test Width (mm) | 550 | |

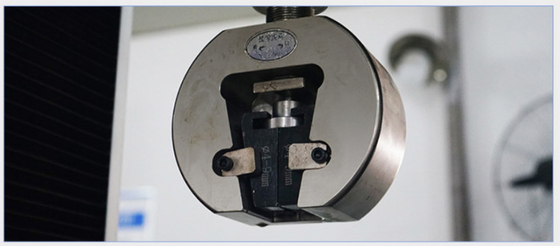

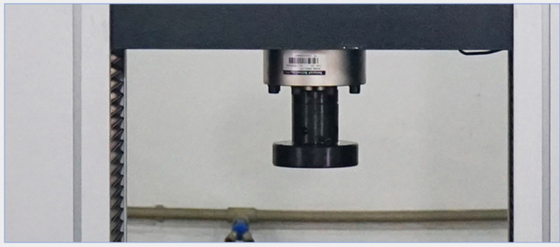

| Can be Equipped with Fixture | Tensile, compression, bending, shearing, peeling, tearing, etc. | |
| Dimension of Main Machine (mm) | Approx. 1060×810×2280mm | |
| Servo Motor Power (KW) | 3 | |
| Total Weight (KG) | 1200 | |
