Product Details:
Payment & Shipping Terms:
|

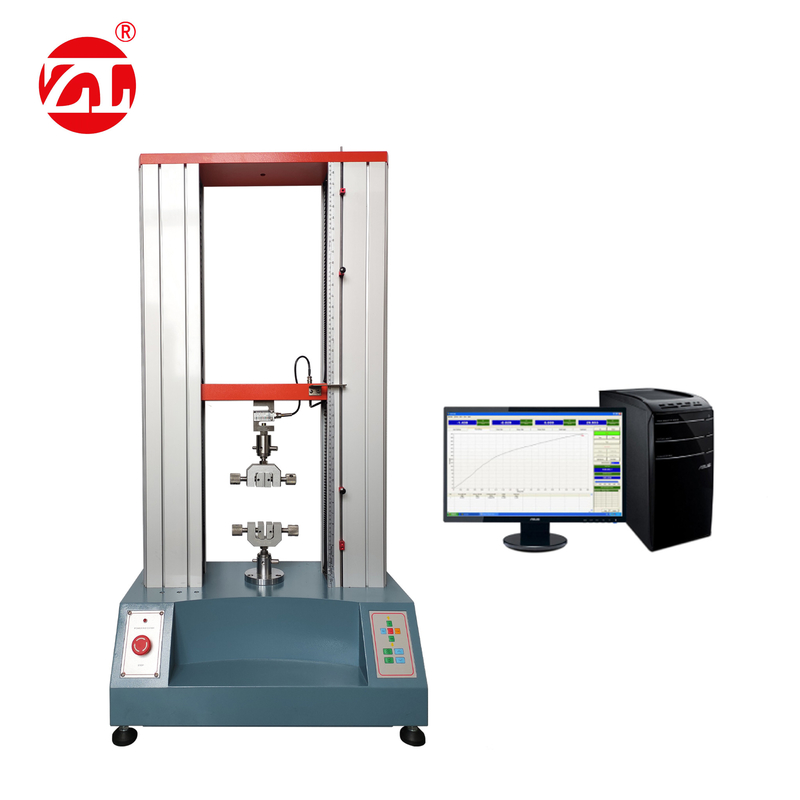

| Name: | Desktop Computer Controlled Universal Testing Machine Price | Brand Name:: | ZL |
|---|---|---|---|
| Model Number:: | ZL-8002B | Maximum Load: | 200,500,1000,2000KG |
| Effective Force Measuring Range: | 0.4%～100％ (0.5 Grade) | Test Bench Safety Device: | Electronic Limit Protection |
| Fixture Configuration: | One Set Of Tensile Jig | Main Machine Size: | 1200*530*1800mm(L*W*H) |
| Power System: | Servo Motor + High Precision T-screw | Power Supply: | 220V/50HZ |
| High Light: | Desktop Computer Controlled utm machine,220V tensile testing equipment,50HZ Universal Testing Machine |
||
Corresponding Standard :
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
Technical Parameters:
| Maximum Load | 200,500,1000,2000KG |
| Accuracy Class | 0.5 level |
|
Effective Force Measuring Range |
0.4%～100％ (0.5 grade) |
|
Force Measurement Accuracy |
Within ±0.5% of the displayed value |
| Resolution of Tester | The maximum load 1/200000, no grade inside and outside, and constant resolution throughout |
| Load Cell |
Basic configuration: pull, pressure sensor (maximum load) a Extended configuration: can be equipped with multiple sensors |
| Effective Test Width | 380mm (can be widened according to customers' requirements) |
| Effective Tensile Space | 600mm (can increase the height according to customer's requirement) |
| Test Speed Range | 50～300mm/min |
| Displacement Measurement Accuracy | Within ±0.5% of the displayed value |
| Deformation Measurement Accuracy | Within ±0.5% of the measured value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, can be point to move |
|
Test Bench Return Function |
Manual or automatic two options, automatic or manual after the test to return to the highest speed test initial position |
| Overload Protection | The machine will automatically protect if the maximum load is exceeded by 10%. |
| Fixture Configuration | One set of tensile jig |
| Main Machine Size | 1200*530*1800mm(L*W*H) |
| Power System | Servo motor + high precision T-screw |
| Power Supply | 220V/50HZ, |
| Power | 0.75KW (according to different force value demand, standard with different power motor) |
| Main Machine Weight | 300 KG(Approx.) |
