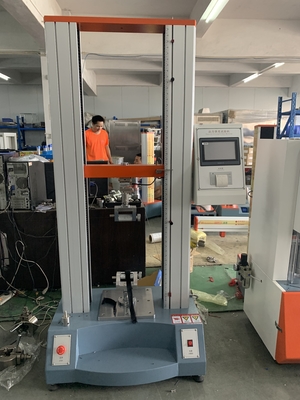

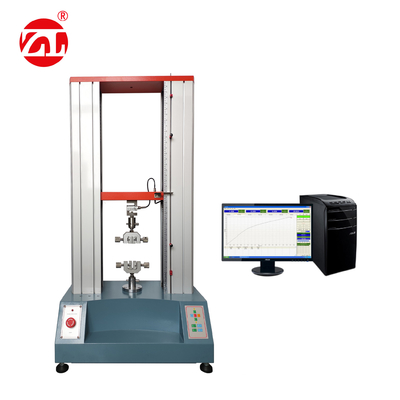

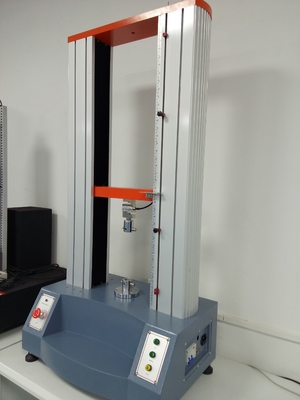

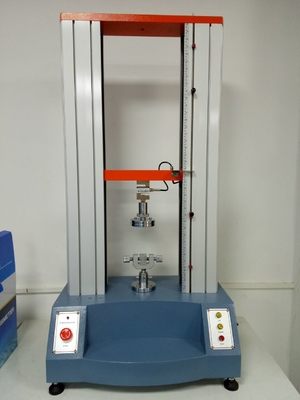

Double Column Universal Testing Machine Tensile Test With Touch Screen

Large Image : Double Column Universal Testing Machine Tensile Test With Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	Zhongli
Certification:	CE,ISO
Model Number:	ZL-8002B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Double Column Universal Testing Machine Tensile Test With Touch Screen is packaged within wooden case.
Delivery Time:	15 days after receiving the deposite
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Name:	Double Column Universal Testing Machine Tensile Test With Touch Screen	Brand Name::	ZL
Model Number::	ZL-8002	Power::	Electronic
Usage::	Strength Testing Machine	Capacity Selection:	200, 500, 1000, 2000kg
Force Measurement Accuracy:	Within ±0.5% Of Indicated Value	Display Method:	LCD Screen English Display, Film Button
Unit Switching:	Kg, Lb, N	Data Sampling Frequency:	200times/sec
Effective Test Width:	380mm	Effective Stretching Space:	800mm
Weight::	300KG
Highlight:	Double Column Universal Testing Machine , Universal Testing Machine With Touch Screen , 380mm tensile testing equipment

Double Column Universal Testing Machine with Touch Screen

Advanced double column universal testing machine designed for precise tensile testing applications. Features modern touch screen interface for intuitive operation and comprehensive data analysis.

Compliance Standards

ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452

Technical Specifications

Parameter	Specification
Capacity Selection	200, 500, 1000, 2000kg
Force Measurement Accuracy	Within ±0.5% of indicated value
Display Method	LCD screen English display, film button
Unit Switching	Kg, lb, N
Data Sampling Frequency	200 times/sec
Testing Machine Resolution	Maximum load 1/±25000 yards, no division between inside and outside, consistent resolution throughout process
Load Cell	Basic configuration: tension and pressure sensors (maximum load)
Effective Test Width	380mm
Effective Stretching Space	800mm
Test Speed Range	50-300mm/min stepless speed regulation with 5-speed constant speed (custom speeds available)
Displacement Measurement Accuracy	Within ±0.5% of indicated value
Breakpoint Ratio Setting	0-99%, user-configurable break stop time for different materials
Test Bench Safety Device	Up and down stroke limiting device
Overload Protection	10% above maximum load, automatic machine protection
Fixture Configuration	One set of tensile fixtures
Host Size	8005501800mm
Host Weight	Approximately 180kg
Power Supply	220V/50Hz

Key Features

High-precision force measurement with ±0.5% accuracy
Stepless speed regulation from 50-300mm/min
Advanced breakpoint detection and safety systems
Comprehensive overload protection
User-configurable testing parameters
Multiple unit conversion capabilities
