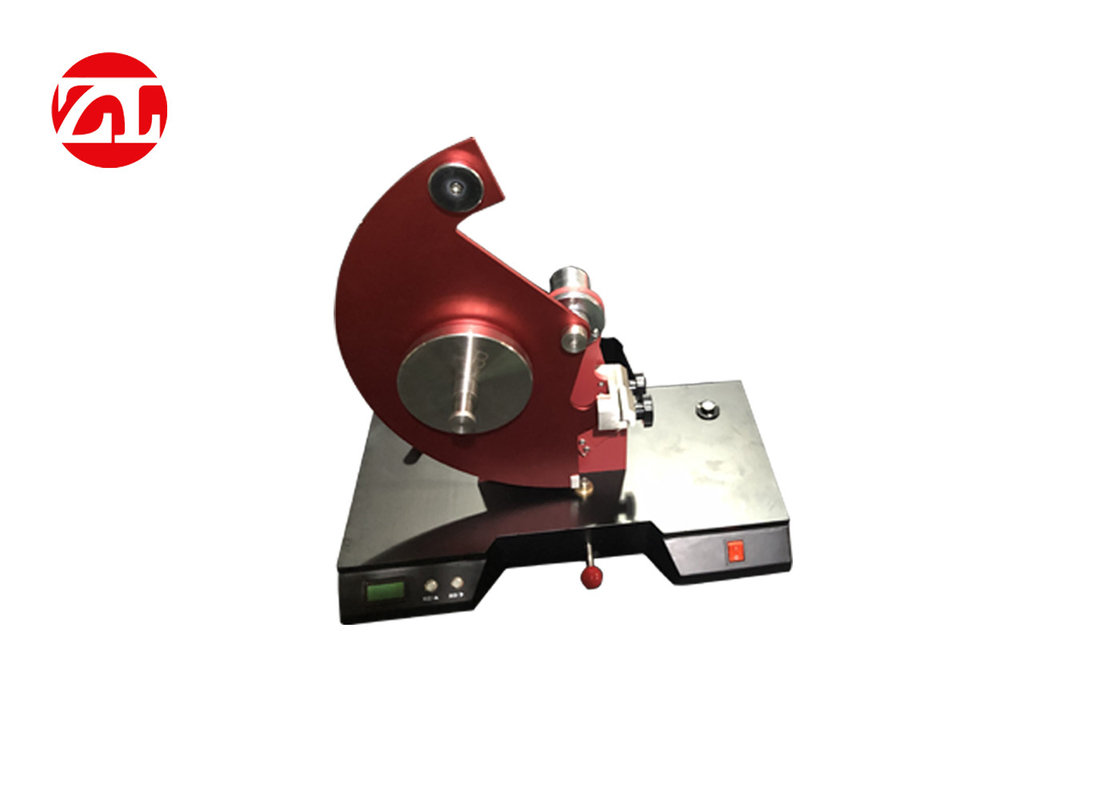

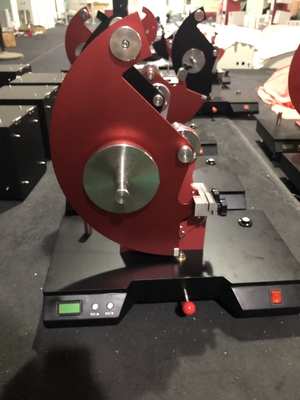

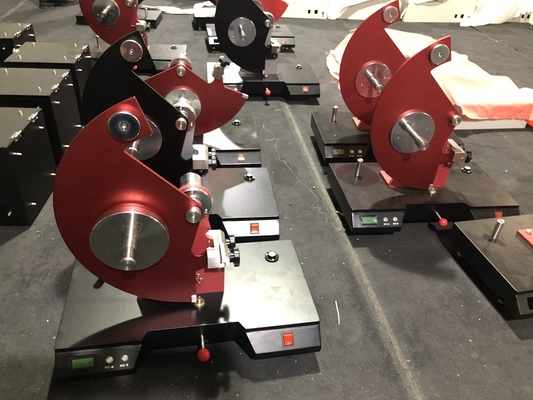

ASTM D1424 Digital Fabric Paper Tearing Strength Testing Machine

Large Image : ASTM D1424 Digital Fabric Paper Tearing Strength Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-5005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Model:	ZL-5005	Measuring Range:	0 ~ 16N, 32N, 64N
Measurement Accuracy:	≤ ± 0.2% F · S	The Measurement Units:	N, CN, Gf, Lbf
The Sample Holder:	Pneumatic Clamping (gas Pressure: 0.6 ~ 0.8MPa)	Incision Length:	20mm ± 0.1mm
Clamp Mouth Distance:	2.8mm ± 0.3mm	Dimensions:	480 × 330 × 630mm
Weight:	55kg	Power Supply:	AC220V 50Hz 100W
Highlight:	ASTM D1424 Tearing Strength Tester , Microcontrol Tearing Strength Tester , Microcontrol Fabric Tearing Strength Tester

ASTM D1424 Digital Fabric Paper Tearing Strength Testing Machine

Product Overview

The YG033B is a powerful, versatile instrument that has been extensively redesigned with a modern look and a host of new features to excel in value, accuracy, safety and flexibility. The product is used for the determination of tearing strength of all kinds of woven fabrics. It can also be used to measure the tearing strength of paper, plastic cloth, film, electrical tape, foil and other materials.

Compliance Standards

Textiles

GB/T 3917.1
ASTM D1424
DIN 53862
EN ISO 13937-1
ISO 4674-2
ISO 9290
M&S P29
NEXT 17
NF G07-149

Paper

GB/T 455
APPITA P 400
ASTM D 689
BS 4468
CSA D9
DIN 53128
EN 21974
ISO 1974
JIS P 8116
PAPTAC D9
SCAN P11
TAPPI T414
UNI 6444

Plastics

GB/T 11999
ASTM D1922
ISO 6383-2
JIS K 7128-2
NF T54 141

Nonwovens

ASTM D5734
WSP 100.1

Key Features

Advanced calculation method (potential law calculation) to ensure accurate testing and good repeatability
Micro-control system with automatic testing, calculation, analysis of results, print test reports, and data upload capability
User-friendly control system with Chinese and English interface, easy operation with function soft keys
Free access to all data within the host and statistical results
Multiple test units available: N, cN, gf, lbf with automatic conversion for different standards

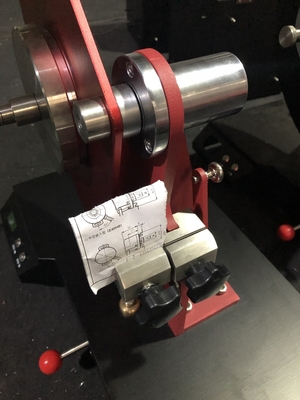

Pneumatic sample holder and pendulum release for consistent clamping force and reduced operating strength
Automatic specimen cutting to ensure precise incision shape and reduce operating effort

Technical Specifications

Measuring range	0 ~ 16N, 32N, 64N
Measurement accuracy	≤ ± 0.2% F * S
Measurement units	N, cN, gf, lbf
Sample holder	Pneumatic clamping (gas pressure: 0.6 ~ 0.8MPa)
Incision length	20mm ± 0.1mm
Clamp mouth distance	2.8mm ± 0.3mm
Dimensions	480 × 330 × 630mm
Weight	55kg
Power supply	AC220V 50Hz 100W
