ASTM D737 Semi Automatic Textile Fabric Air Permeability Testing Machine

Large Image : ASTM D737 Semi Automatic Textile Fabric Air Permeability Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-5010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Model:	ZL-5010	Pressure Range:	0 ~ 4000Pa Self-setting Pressure Drop
Measurable Air Permeability:	0.1~12000mm/s	Measurement Error:	≤±2%
Measurable Fabric Thickness:	≤15mm	Suction Volume Adjustment:	Data Feedback Dynamic Adjustment
Sample Area Setting Circle:	5cm2; 20cm2; 50cm2; 100cm2	Sample Diameter Setting Circle:	Ф50mm (≈19.6cm2)Ф70mm (≈38.5cm2)
Nozzles:	A Total Of 11	Data Processing Capacity:	≤1000 Tests
Data Output:	High-definition Touch Screen Display; Own Micro-printer	Power Source:	AC 220V±10V 50Hz
Power Consumption:	2000W	Weight:	80Kg
Highlight:	Semi Automatic Air Permeability Testing Machine , ASTM D737 Air Permeability Testing Machine , Semi Automatic Air Permeability Test Equipment

ASTM D737 Semi Automatic Textile Fabric Air Permeability Testing Machine

Product Overview

This semi-automatic testing machine is designed for rapid evaluation of air permeability across various sheet materials including coated fabrics, filter papers, filter materials, and plastics.

Compliance Standards

GB/T5453, GB/T13764, ISO9237, ISO7231, ISO5636, BS5636, ASTM D737, DIN 53887, JIS L1096, BS5636

Performance Features

Swiss-imported high-precision pressure sensor with leading domestic accuracy

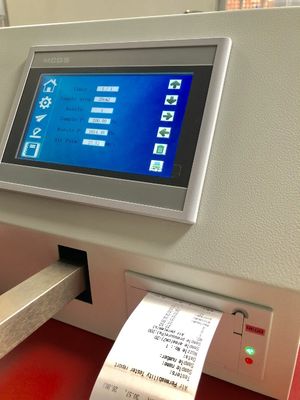

Intelligent smart touch interface with dynamic testing display
Full-range automatic detection of air permeability for various samples
Configurable parameters and units for different national standards
Measurement units: mm/s, cfm, cm³/cm²/s, I/m²/s, I/dm²/min, m³/m²/min
Certified computer ventilation test software by State Intellectual Property Office
International third-party accredited laboratory calibration certificate

Technical Specifications

Pressure Range	0 ~ 4000Pa (self-setting pressure drop)
Measurable Air Permeability	0.1~12000mm/s
Measurement Error	≤±2%
Measurable Fabric Thickness	≤15mm
Suction Volume Adjustment	Data feedback dynamic adjustment
Sample Area Settings	5cm²; 20cm²; 50cm²; 100cm²
Sample Diameter Settings	Ф50mm (≈19.6cm²), Ф70mm (≈38.5cm²)
Nozzles	11 total
Data Processing Capacity	≤1000 tests
Data Output	High-definition touch screen display; built-in micro-printer
Power Source	AC 220V±10V 50Hz
Power Consumption	2000W
Weight	80Kg
Dimensions (L×W×H)	600×700×1100mm
