ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic

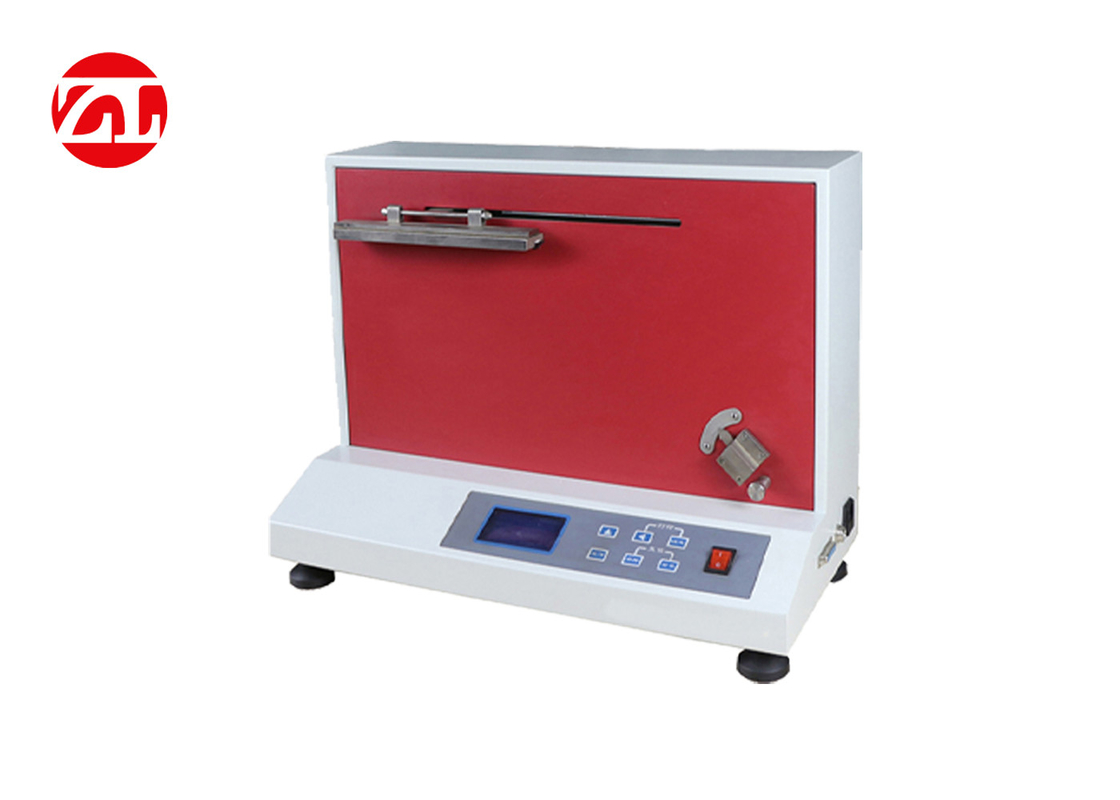

Large Image : ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-5011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Model:	ZL-5011	Testing Accuracy:	0.01 Cm
Extension Elongation:	0.5-20.5cm	Specimen Specification:	2.5×25 Cm
Specimen Pressing Specification:	2.5×25 Cm	Specimen Pressing Pushing Speed:	0.3 Cm/s 0.4 Cm/s 0.5 Cm/s
Power Source:	AC220V 50Hz 0.12kW	External Dimension:	470×290×405mm
Weight:	18kg
Highlight:	Pneumatic Fabric Stiffness Tester , ASTM D4032 Fabric Stiffness Tester , ASTM D4032 Fabric Testing Machine

ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic

Used for testing the stiffness of all kinds of woven and knit goods, nonwoven fabrics and coated fabrics, including cotton, wool, silk, linen and chemical fiber, and also of flexible materials such as paper, leather, film, etc.

Relevant Standards

ZB WO4003
GB/T18318
ASTM D 1388
IS09073-7
BS En22313

Technical Parameters

Working pattern	Computer controlled, infrared stealth slant detecting, Chinese liquid crystal display, printing out testing results
Testing accuracy	410 30` 430 450 (adjustable)
Extension elongation	0.5-20.5 cm
Testing accuracy	0.01 cm
Specimen specification	2.5×25 cm
Specimen pressing specification	2.5×25 cm
Specimen pressing pushing speed	0.3 cm/s 0.4 cm/s 0.5 cm/s
Power source	AC220V 50Hz 0.12kW
External dimension	470×290×405 mm
Weight	18 kg
