ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics

ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics
ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics

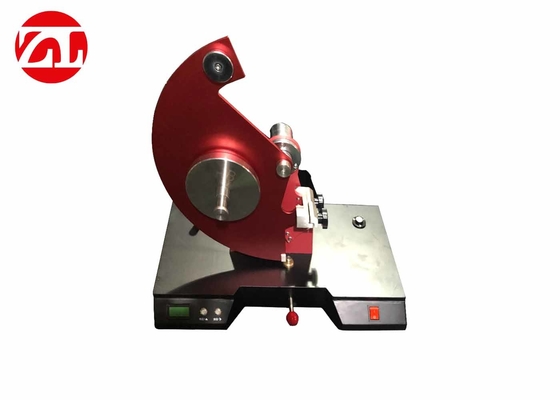

Large Image :  ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-5005
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: Eegotiable
Supply Ability: 60 sets / month
Detailed Product Description
Product Name: ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics Measuring Range: 0 ~ 16N, 32N, 64N
Measurement Accuracy: ≤ ± 0.2% F · S The Measurement Units: N, CN, Gf, Lbf
The Sample Holder: Pneumatic Clamping (gas Pressure: 0.6 ~ 0.8MPa) Incision Length: 20mm ± 0.1mm
Weight: 55kg Power Supply: AC220V 50Hz 100W
High Light:

Tear Strength Tester For Paperboard

,

ASTM D1424 Tear Strength Tester

,

ASTM D1424 Fabric Tearing Strength Tester

ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics





Application :



The YG033B is a powerful, versatile instrument that has been extensively redesigned with a modern look and a host of new features to excel in value, accuracy, safety and flexibility. The product is used for the determination of tearing strength of all kinds of woven fabrics. It can also be used to measure the tearing strength of paper, plastic cloth, film, electrical tape, foil and other materials.



【Standards 】:



Textiles: GB / T 3917.1 Textiles - Tear properties of textiles Part 1 Determination of the impact of pendulum hammer test method

ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M & S P29, NEXT 17, NF G07-149

Paper: GB / T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974,

ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444

Plastics: GB / T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Nonwovens: ASTM D5734, WSP 100.1



Instrument features:



1, Advanced calculation method (potential law calculation), to ensure accurate testing and good repeatability.

2, Micro-control system, automatic testing, calculation, analysis of results, print test reports, upload test data.

3, User-friendly control system, Chinese and English user interface, easy to operate, all buttons for the function of soft keys, simple and clear  control panel.

4, Free access to all the data within the host and statistical results.

5, The test unit can choose between N, cN, gf and lbf and automatically convert to adapt to different standards.

6, Pneumatic sample holder and pendulum release, to ensure that the clamping force is consistent, and can reduce the operating strength.

7, Automatically cut the specimen to ensure that the shape of the incision, and can reduce the operating strength.



【Technical Parameters】:



Measuring range 0 ~ 16N, 32N, 64N
Measurement accuracy ≤ ± 0.2% F · S
The measurement units N, cN, gf, lbf
The sample holder Pneumatic clamping (gas pressure: 0.6 ~ 0.8MPa)
Incision length 20mm ± 0.1mm
Clamp mouth distance 2.8mm ± 0.3mm
Dimensions 480 × 330 × 630mm
Weight 55kg
Power supply AC220V 50Hz 100W

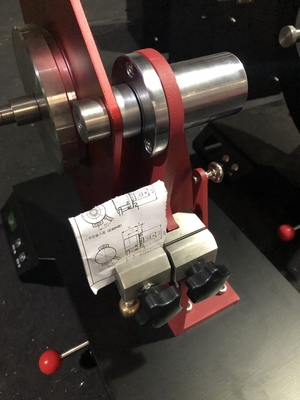

Machine Details





ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics 0



ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics 1

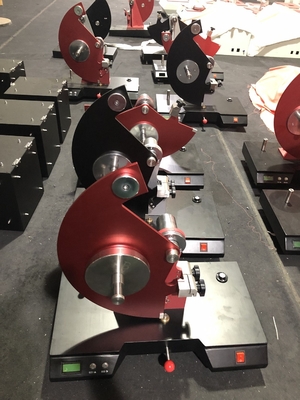

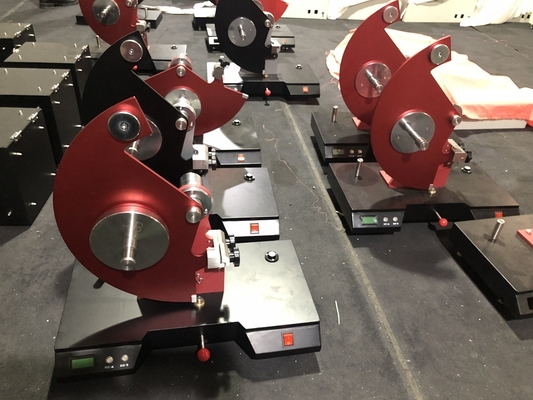

Factory real pictures display





ASTM D1424 Laboratory Tearing Strength Testing Machine For Paper Board And Fabrics 2



We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.



Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.



Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.



In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
