| Product Name: | GB3565 PLC Touch Screen Control Servo Bicycle Frame Impact Test Machine | Control Method: | PLC Control, Touch Screen Man-machine Interface Operation |
|---|---|---|---|
| Weight Lifting Speed: | 0～300mm/min Adjustable | Weight Lifting Drive: | Servo Deceleration Motor |
| Weight Protection Method: | Double Guide Rods Slide Freely | Weight Lifting Height: | 1～370mm |
| Height Measurement Error: | ±2mm | Weight Accuracy: | 1% |
| Power: | 220V 50Hz | Key Words: | Frame Impact |
| High Light: | GB3565 Impact Test Machine,PLC Touch Screen Impact Test Machine,GB3565 Impact Testing Equipment |
||

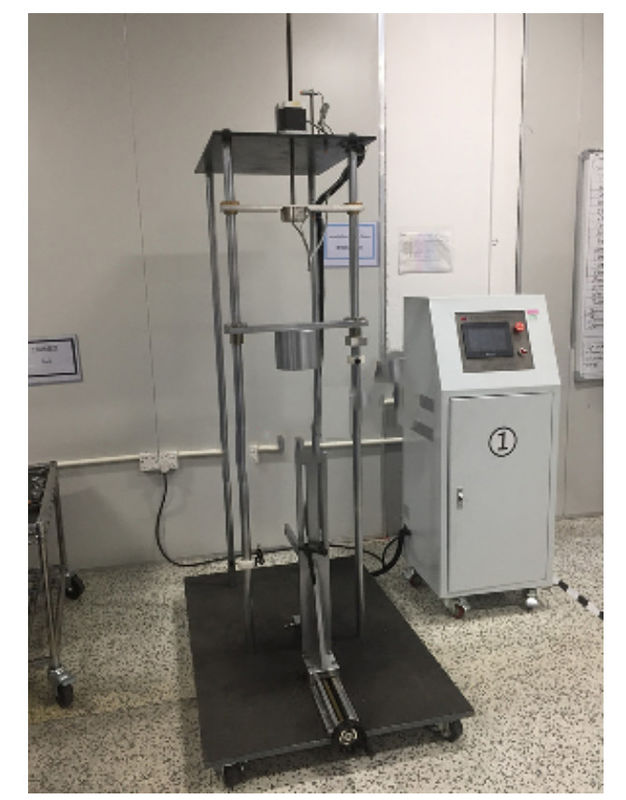

GB3565 PLC Touch Screen Control Servo Bicycle Frame Impact Test Machine
Summary:
It is suitable for simulating the ability that the front wheel of the bicycle withstands the impact of obstacles on the ground when riding. And judge whether the product is qualified or not according to whether there are cracks and the amount of deformation after use.
Standards:
According to GB17761,GB3565 Standards require design and make.
Parameters:
| Control method | PLC control, touch screen man-machine interface operation |
| Weight lifting speed | 0～300mm/min adjustable |
| Weight lifting drive | servo deceleration motor |
| Weight working mode | electromagnet pull and release |
| Weight protection method | double guide rods slide freely |
| Weight lifting height | 1～370mm |
| Height measurement error | ±2mm |
| Weight accuracy | 1% |
| Position sensor accuracy | 2500 P/R, photoelectric sensor |
| The main size of the weight | diameter 150mm, weight 22.5Kg |
| Test station | 1 station |
| Mounting mandrel size | maximum outer diameter 55mm, arc 220mm |
| Bottom mounting fixture | single pin rotating shaft fixed |
| Middle clamp | manual, adjustable up and down |
| Test times | can be set within standard requirements |
| Dimensions | about 1200*1000*2000mm (L*D*H) |
| Power | 220V 50Hz |
