| Product Name: | Micro Computer Paper And Packaging Material Resistance Compression Testing Instruments | Power Supply: | AC 220 V 50 Hz |
|---|---|---|---|
| Capacity: | 200,500 | Induction: | Force Sensors |
| Displayer: | ZL-2000 | Accuracy: | ± 0.5 % |
| Units Switch: | Kgf, Lbf, N.( Optional) | Testing Speed: | Testing Speed |
| High Light: | ASTM F1140 Packaging Testing Equipment,LSSD-01 Packaging Testing Equipment,ASTM F2054 packaging testing instruments |
||

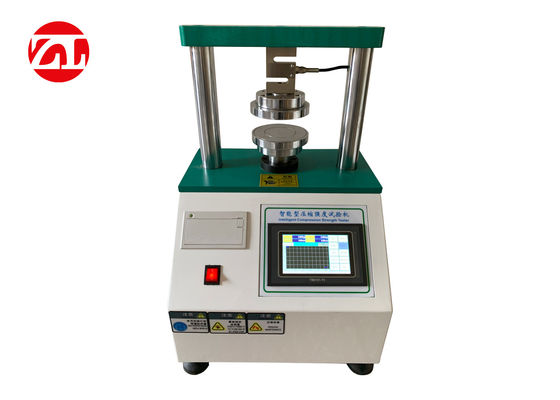

Micro Computer Paper And Packaging Material Resistance Compression Testing Instruments
Product description:
This machine is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength.
Application:
It is the ideal test auxiliary appliance for paper, packaging, scientific research, quality and other industries and department.
Technical parameter
| Model | ZL-9009 |
| Capacity | 200,500 |
| Induction | Force sensors |
| Displayer | ZL-2000 |
| Resolution | 1/200000 |
| Accuracy | ± 0.5 % |
| Units switch | Kgf, Lbf, N.( Optional) |
| Testing speed | 1 ~ 50 mm/min (Adjustable) |
| Speed input methods | Revolving |
| The pressure plate area | 300*300mm |
| The pressure plate spacing | 200mm Or designated |
| Dimension | 420×440×835mm W×D×H |
| Weight | 70 kg |
| Power | AC220V 50Hz 2A (According to national or specified) |
