Medical Synthetic Blood Penetration Tester YY / T0691-2008 AC220V 50Hz

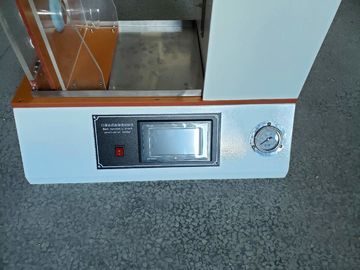

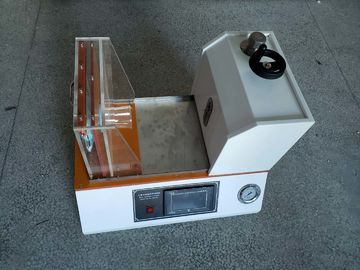

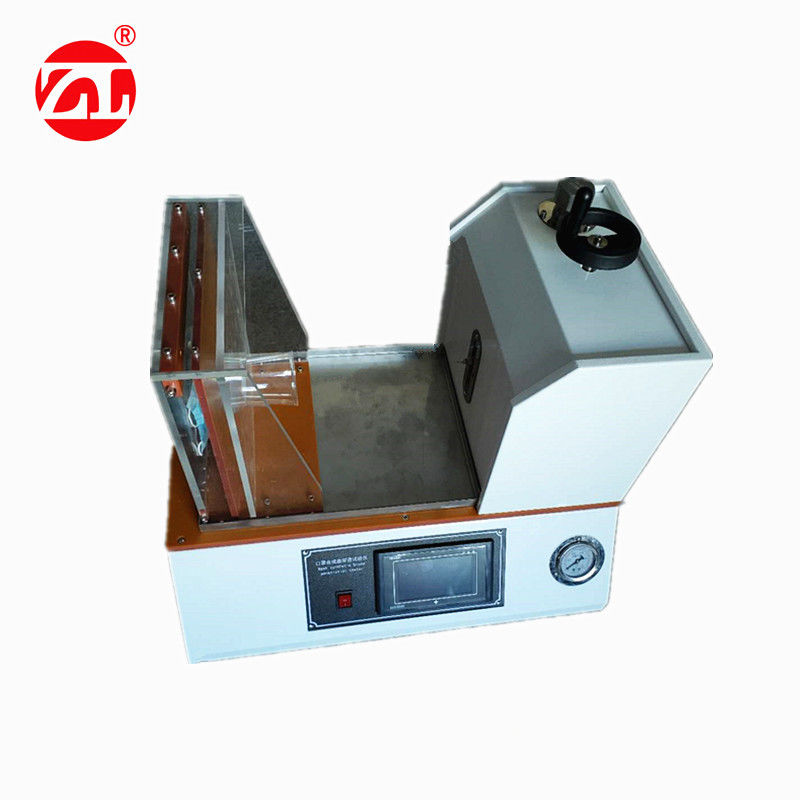

Large Image : Medical Synthetic Blood Penetration Tester YY / T0691-2008 AC220V 50Hz

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5060

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	YY / T0691-2008 Medical Mask Synthetic Blood Penetration Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	YY / T0691-2008 Medical Mask Synthetic Blood Penetration Tester	Liquid Ejection Speed:	450cm / S; 550 Cm / S; 635 Cm / S
Power:	AC220V 50Hz	Nozzle Diameter:	Φ0.84mm, Length 12.7mm
Spraying Distance:	(300 ± 10) Mm	Standards:	GB19083-2010, YY 0469-201, YY / T0691-2008
Highlight:	abrasion resistance testing machine , yarn twist tester

Medical Synthetic Blood Penetration Tester YY/T0691-2008 AC220V 50Hz

Product Overview

The mask synthetic blood penetration tester is designed for measuring the spatter penetration performance of medical mask synthetic blood. This instrument is suitable for use by medical inspection departments, safety inspection departments, and scientific research units.

Testing Principle

The medical mask sample is supported on the test device, and 2 mL of synthetic blood is sprayed from a cannula with an inner diameter of 0.84 mm in a horizontal direction toward the mask at a distance of 300 mm. This simulates scenarios where masks are exposed to blood spray from perforated blood vessels, allowing observation of synthetic blood penetration on the opposite side of the mask.

Medical mask samples are tested at liquid ejection speeds of 450 cm/s, 550 cm/s, and 635 cm/s, with test results recorded for each injection speed.

Applicable Standards

GB19083-2010: Technical requirements for medical protective masks
YY 0469-2011: Surgical masks
YY/T0691-2008: Test method for resistance to synthetic blood penetration of medical masks for infectious pathogen protective equipment (fixed volume, horizontal spray)

Technical Specifications

Parameter	Specification
Test Environment	Temperature (21 ± 5)°C; Relative Humidity (85 ± 10)%
Spraying Distance	(300 ± 10) mm
Nozzle Diameter	Φ0.84mm, length 12.7mm
Liquid Ejection Speed	450 cm/s; 550 cm/s; 635 cm/s
Power Supply	AC220V 50Hz
