Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010

Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010
Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010 Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010 Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010

Large Image :  Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-5060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: GB 19083-2010 Horizontal Spray Surgical Mask Synthetic Blood Penetration Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: GB 19083-2010 Horizontal Spray Surgical Mask Synthetic Blood Penetration Tester Spraying Distance: (300 ± 10) Mm
Test Environment: Temperature (21 ± 5) ℃; Relative Humidity (85 ± 10)% Liquid Ejection Speed: 450cm / S; 550 Cm / S; 635 Cm / S
Nozzle Diameter: Φ0.84mm, Length 12.7mm Power: AC220V 50Hz
High Light:

abrasion resistance testing machine

,

yarn twist tester

GB 19083-2010 Horizontal Spray Surgical Mask Synthetic Blood Penetration Tester





Overview:

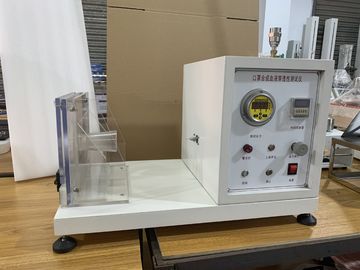

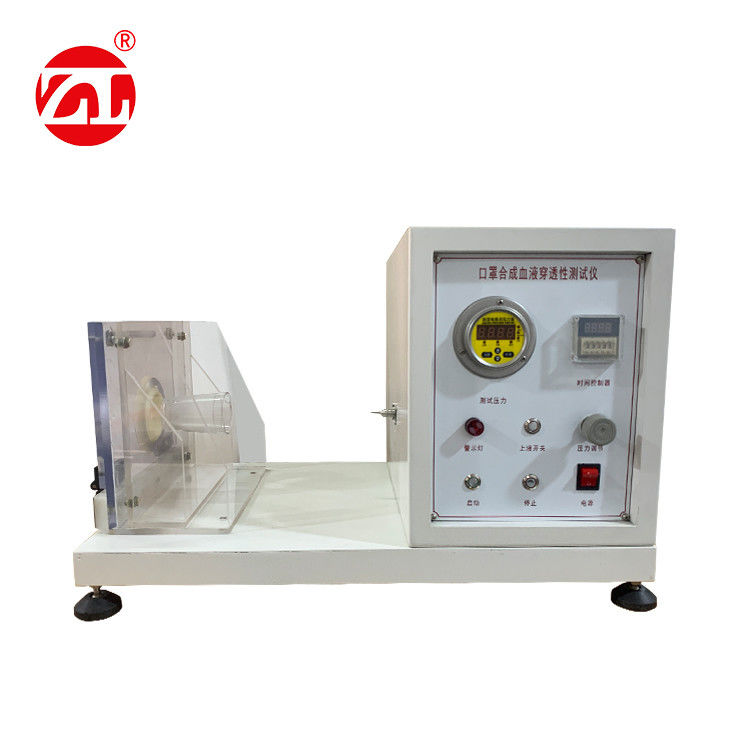

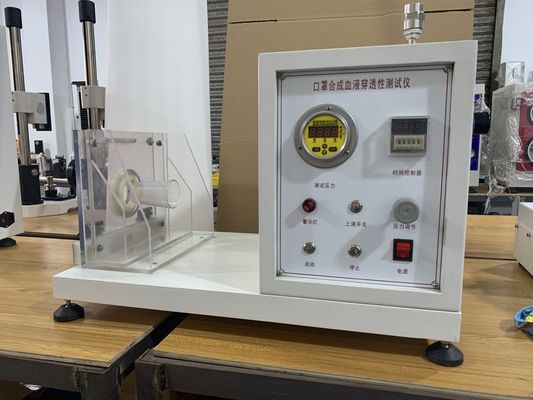

The mask synthetic blood penetration tester is suitable for the measurement of the synthetic blood spatter penetration performance of medical mask or other protection materials. It can be used by medical inspection departments, safety inspection departments and scientific research units.



Applicable standards



GB19083-2010: Technical requirements for medical protective masks;

YY 0469-2011: Surgical masks;

YY / T0691-2008: Test method for resistance to synthetic blood penetration of medical masks for infectious pathogen protective equipment (fixed volume, horizontal spray)



Principle



The medical mask sample was supported on the test device, and 2 mL of synthetic blood was sprayed from a cannula with an inner diameter of 0.84 mm in a horizontal direction toward the mask to be tested at a distance of 300 mm. Simulate the scene where the mask is sprayed with blood from the perforated blood vessels, and observe the penetration of synthetic blood on the other side of the mask. The medical mask samples were tested at the liquid ejection speeds of 450 cm / s, 550 cm / s, and 635 cm / s, respectively. Record the test results for each injection speed.



Specifications:



Spraying distance (300 ± 10) mm
Test environment Temperature (21 ± 5) ℃; relative humidity (85 ± 10)%
Liquid ejection speed 450cm / s; 550 cm / s; 635 cm / s
Nozzle diameter Φ0.84mm, length 12.7mm
Power AC220V 50Hz





Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010 0



Horizontal Spray Surgical Synthetic Blood Penetration Tester GB 19083-2010 1
