GB19083-2010 Synthetic Blood Penetration Tester For Protection Suit

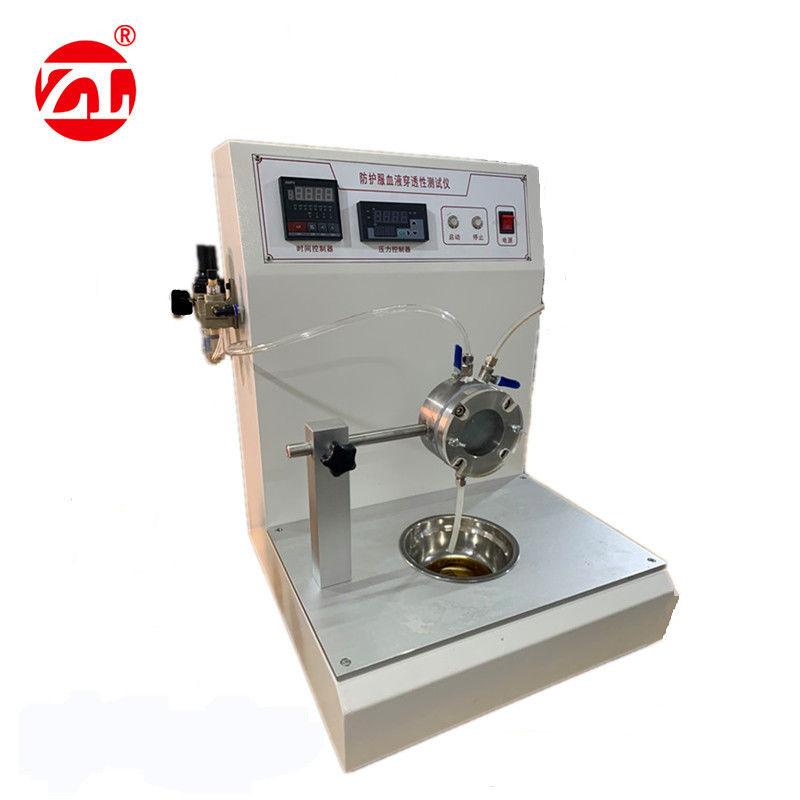

Large Image : GB19083-2010 Synthetic Blood Penetration Tester For Protection Suit

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5060A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB19083-2010 Synthetic Blood Penetration Tester For Protection Suit	Test Environment:	Temperature (21 ± 5) ℃; Relative Humidity (85 ± 10)%
Spraying Distance:	(300 ± 10) Mm	Nozzle Diameter:	Φ0.84mm, Length 12.7mm
Liquid Ejection Speed:	450cm / S; 550 Cm / S; 635 Cm / S	Power:	AC220V 50Hz
Highlight:	abrasion resistance testing machine , yarn twist tester

GB19083-2010 Synthetic Blood Penetration Tester For Protection Suit

Product Overview

The synthetic blood penetration tester is designed to measure the synthetic blood spatter penetration performance of protection suits, medical masks, and other protective materials. This equipment is suitable for use by medical inspection departments, safety inspection departments, and scientific research units.

Applicable Standards

GB19083-2010: Technical requirements for medical protective masks
YY/T0691-2008: Test method for resistance to synthetic blood penetration of medical masks for infectious pathogen protective equipment (fixed volume, horizontal spray)
ASTM F1670/1671

Testing Principle

The protection suit sample is supported on the test device, and 2 mL of synthetic blood is sprayed from a cannula with an inner diameter of 0.84 mm in a horizontal direction toward the mask at a distance of 300 mm. This simulates scenarios where masks are sprayed with blood from perforated blood vessels. The penetration of synthetic blood on the other side of the mask is observed. Medical mask samples are tested at liquid ejection speeds of 450 cm/s, 550 cm/s, and 635 cm/s, with test results recorded for each injection speed.

Technical Specifications

Parameter	Specification
Test Environment	Temperature (21 ± 5) ℃; Relative Humidity (85 ± 10)%
Spraying Distance	(300 ± 10) mm
Nozzle Diameter	Φ0.84mm, Length 12.7mm
Liquid Ejection Speed	450 cm/s; 550 cm/s; 635 cm/s
Power Supply	AC220V 50Hz
