Soil Shrinkage Limit Test Apparatus Consists Of Main Part And Quasi - Soil Part

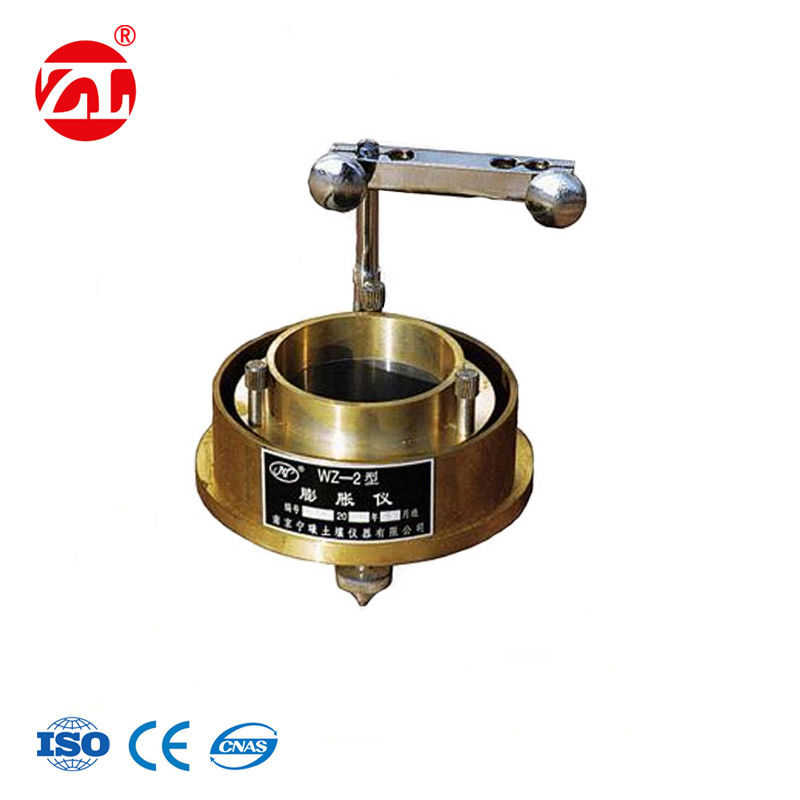

Large Image : Soil Shrinkage Limit Test Apparatus Consists Of Main Part And Quasi - Soil Part

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2427

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Soil Shrinkage Test Apparatus Consists of The Main Part and The Quasi-soil Part is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Soil Shrinkage Test Apparatus Consists Of The Main Part And The Quasi-soil Part	Ratio Between Working Area Of Multihole Plate And Hole Area:	2:1
Micrometer Gauge:	Φ10mm X 4mm	Cutting Ring:	Φ61.8mm X 20mm (area Of Specimen：30cm2 X 2cm)
Gauge Range:	0mm- 100 Mm	After Using:	Wipe Clean, Coated With A Thin Layer Of Grease To Prevent Rust
Highlight:	abrasion resistance testing machine , yarn twist tester

Soil Shrinkage Limit Test Apparatus

The Soil Shrinkage Test Apparatus is designed for determining soil contraction properties including moisture content at contracting limit, linear contracting rate, body contraction, and contracting coefficient after moisture loss.

Equipment Description

The instrument consists of two main components:

Main Part: Comprising floor, table pole folder table, plate and other components
Quasi-soil Part: Consisting of guide ring, ring knives, ring orientation, and prospective soil components

Function Principle

The testing procedure involves smearing Vaseline in the ring knife, introducing soil samples, immediate weighing, and placement in the instrument. After recording initial readings at 20°C, the shrinkage test proceeds according to soil test procedures (SDS.01-79) until scale readings stabilize. Samples are then dried at 100-105°C to constant weight, with measurements taken from four vertical positions for computational analysis.

Maintenance Instructions

After using the Soil Shrinkage Instrument, thoroughly clean the apparatus and apply a thin layer of grease to prevent rust formation.

Technical Specifications

Ratio between working area of multihole plate and hole area	2:1
Micrometer gauge	Φ10mm x 4mm
Cutting ring	Φ61.8mm x 20mm (area of specimen: 30cm² x 2cm)
Total weight (apparatus main body + dial indicator + soil samples)	Less than 1Kg
Gauge range	0mm - 100mm
