ASTM F2101 Mask Bacteria Filtration Efficiency Tester With Dual 6-Level Sampler

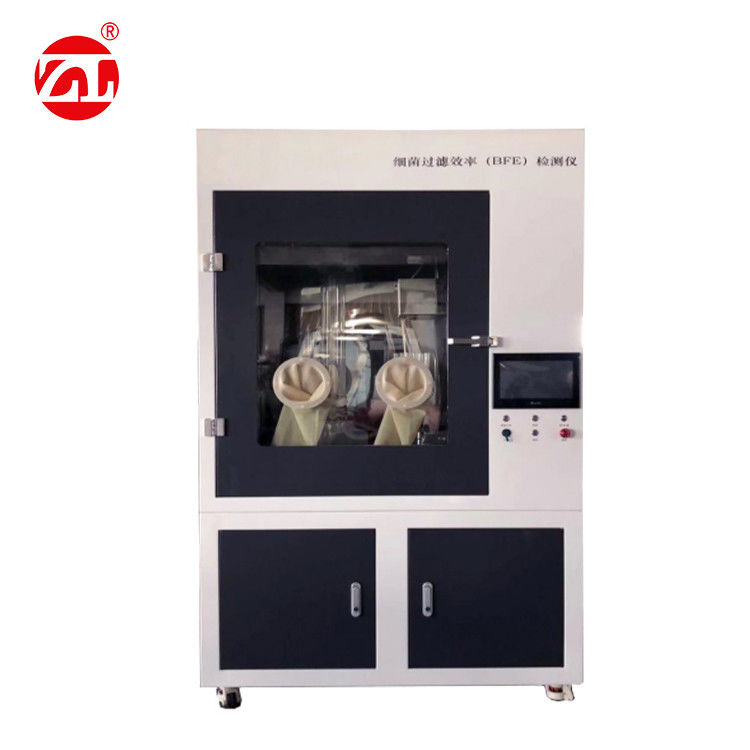

Large Image : ASTM F2101 Mask Bacteria Filtration Efficiency Tester With Dual 6-Level Sampler

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM F2101 Mask Bacteria Filtration Efficiency Tester With Dual 6-level Sampler is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM F2101 Mask Bacteria Filtration Efficiency Tester With Dual 6-level Sampler	Spray Flowmeter Pressure:	0～120Pa
Working Temperature:	0～50℃	Peristaltic Pump Flow:	(0.01～3.0)mL/min
Aerosol Chamber Specifications:	600mm×80mm×5mm[LDT]	Operating Room Size:	L 740×W 940×D 440 Mm
Working Power Supply:	AC 220V，50Hz	Instrument Noise:	＜65dB(A)
Highlight:	abrasion resistance testing machine , yarn twist tester

ASTM F2101 Mask Bacteria Filtration Efficiency Tester With Dual 6-Level Sampler

Product Overview

The Bacteria Filtration Efficiency (BFE) Tester is developed based on international advanced design concepts and complies with YY 0469-2011, YY/T 0969-2013, and other standards. This instrument is primarily used by metrology verification departments, research institutes, medical mask production units, and related testing facilities to evaluate mask bacterial filtration efficiency performance. It features rapid and accurate measurement capabilities and is equipped with a bioaerosol generator and two Anderson 6-level samplers, meeting the requirements of ASTM F2100, ASTM F2101, EN14683, and other international standards.

The Mask BFE Tester utilizes advanced technology with industrial computer control. Its user-friendly interface and operational methods simplify testing procedures, while test results are displayed directly for convenient and intuitive analysis.

Operating Principle

The system operates through an aerosol generating system, aerosol chamber, aerosol transmission device, negative pressure cabinet, and 28.3L/min sampler. The entire detection process is controlled by a console utilizing a microcomputer control system that coordinates and manages the aerosol generation, transmission, negative pressure cabinet, and sampling systems while displaying real-time operational status. All measurement operations are completed automatically.

Key Features

Negative pressure test system ensures operator safety
Integrated measurement system with built-in liquid supply system
Equipped with dual 6-level Anderson sampling systems (I & II)
Adjustable peristaltic pump flow rate for specific requirements
Microbial aerosol generator with adjustable bacterial liquid mist flow and excellent atomization
PLC + LabView control system with 10-inch high-intensity color touch screen
USB interface supporting U disk data transfer
Built-in high-brightness lighting for enhanced observation
All flow control utilizes mass flow control systems
Front glass door for convenient experiment monitoring

Compliance Standards

YY0469 Mask bacterial filtration efficiency detection standard
YY/T 0969-2013 Standard for disposable medical masks
ASTM F2100 medical mask material performance specifications
ASTM F2101 Standard evaluation method for bacterial filtration efficiency using Staphylococcus aureus bioaerosol
EN14683 medical mask requirements and test methods

Technical Specifications

Parameter	Specification
Model	ZL-5065
Vacuum Pump	Oil-free rotary vane vacuum pump, maximum flow up to 57LPM, equipped with silencer; stable airflow
Aerosol Generator Flow Control	Mass flow control with accurate regulation
I Pneumatic Sampling Flow Rate	Anderson sampling flow rate 28.3L/min, Resolution: 0.1L/min (User calibratable)
II Pneumatic Sampling Flow Rate	Anderson sampling flow rate 28.3L/min, Resolution: 0.1L/min (User calibratable)
I & II Sampling Channels	Equipped with mass flow controller
I Pneumatic Pressure	0－5kPa
II Pneumatic Pressure	0－5kPa
Spray Flowmeter Pressure	0～120Pa
Aerosol Chamber Negative Pressure	Conforms to JJF1190-2008
Working Temperature	0～50℃
Cabinet Negative Pressure	0～120Pa
Data Storage	Download capability via U disk
Mass Flow Controller	0～20L/min, resolution: 0.1L/min
Peristaltic Pump Flow	(0.01～3.0)mL/min
High Efficiency Air Filter	Filtration efficiency of particles above 0.3um ≥99.99%
Aerosol Generator Quality	Median diameter: Average particle diameter (3.0±0.3)μm, Geometric standard deviation ≤1.5
Anderson Sampler Capture Sizes	Level I: ＞7μm, Level II: 4.7-7μm, Level III: 3.3-4.7μm, Level IV: 2.1-3.3μm, Level V: 1.1-2.1μm, Level VI: 0.6-1.1μm
Aerosol Chamber Specifications	600mm×80mm×5mm [L×D×T]
Positive Quality Control	Sampler particles total: (2200±500)cfu
Ventilation Flow	800m³/min
Operating Room Size	L 740×W 940×D 440 mm
Dimensions	Approximately L 1200 × W 650 × H 2100 mm
Power Supply	AC 220V, 50Hz
Instrument Noise	＜65dB(A)
Weight	120Kg
Power Consumption	＜1500W
Warranty	1 year

Standard Accessories

Aerosol generator: 1 set
Glass mixing chamber: 1 set
Anderson 6-level biological aerosol sampler: 2 sets
Sampling pump: 2 sets
Test tube rack: 1 piece
