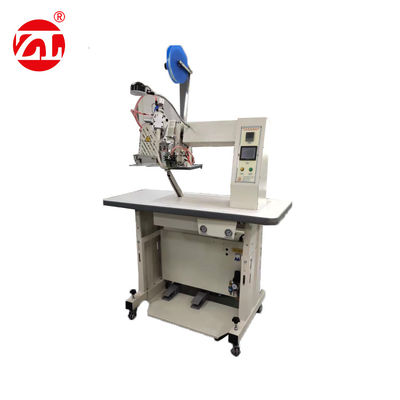

Touch Screen Heat Sealing Machine with PLC Control Adjustable Welding Speed 1-23m/min and 800℃ Max Temperature for Protection Suits

Large Image : Touch Screen Heat Sealing Machine with PLC Control Adjustable Welding Speed 1-23m/min and 800℃ Max Temperature for Protection Suits

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5063

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Touch Screen Heat Sealing Machine , Hot Air Sewing Machine For Protection Suit is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Touch Screen Heat Sealing Machine , Hot Air Sewing Machine For Protection Suit	Control Mode:	PLC + Touch Screen
Compressed Air:	Stable 5KG / C㎡	Welding Speed:	1-23m / Min (adjustable)
Maximum Welding Temperature:	800 ℃	Packing Size:	1270 × 670 × 1620mm
Weight:	Net Weight 125KG. Gross Weight 170KG	Temperature Control Mode:	SSR Solid State
Highlight:	abrasion resistance testing machine , yarn twist tester

Touch Screen Heat Sealing Machine, Hot Air Sewing Machine For Protection Suit

Product Overview

This specialized heat sealing machine utilizes a hot-air gun to melt the adhesive surface of waterproof rubber strips. Through the synchronized rotation and pressure of upper and lower rollers, the rubber strip securely adheres to needle holes in waterproof materials, creating a complete fusion with the waterproof film to achieve optimal waterproofing performance.

Applications

Waterproof Equipment:

Protective clothing and waterproof garments
NEOPENE wetsuits and waterproof luggage
Wind and snow windbreakers
Fishing pants and waterproof camping gear
Waterproof hats and gloves

Waterproof Footwear:

Sports shoes and hiking boots
Snow boots and golf shoes
Five-finger beach shoes
Labor insurance work shoes

Technical Specifications

Control Mode	PLC + touch screen
Compressed Air	Stable 5KG/C㎡
Welding Speed	1-23m/min (adjustable)
Maximum Welding Temperature	800℃
Air Gun Specifications	Flat mouth row holes 20-25CM optional
Power Requirements	AC220V 50HZ/60HZ
Rated Power	1800W
Up/Down Wheel Width	25MM (others can be scheduled)
Temperature Control Mode	SSR solid state
Packing Size	1270 × 670 × 1620mm
Weight	Net weight 125KG, Gross weight 170KG
