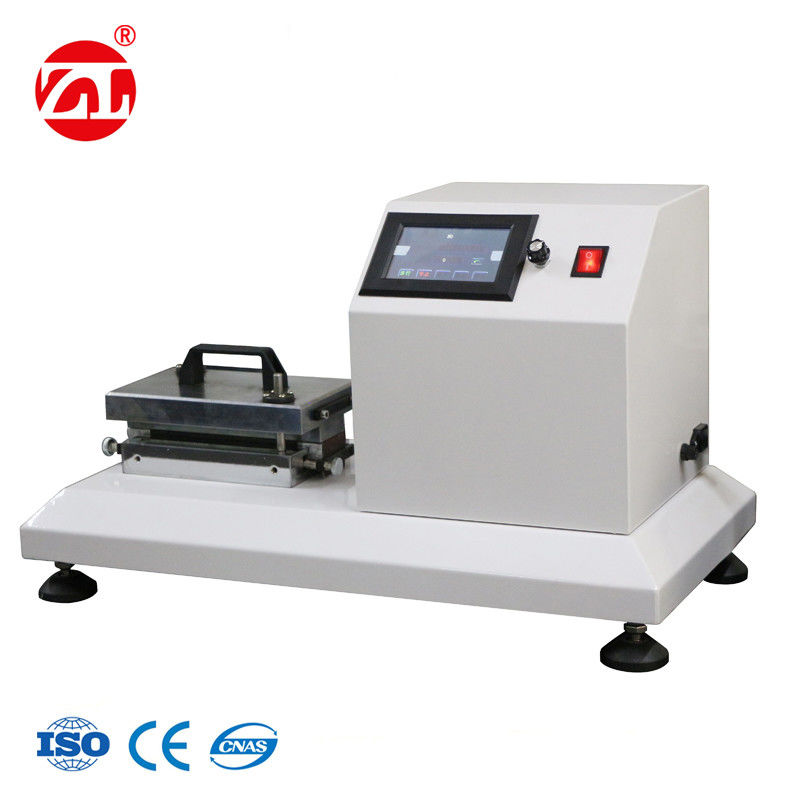

ISO 13427 Geotextile Abrasion Resistance Tester Sand Paper / Slide Method

Large Image : ISO 13427 Geotextile Abrasion Resistance Tester Sand Paper / Slide Method

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2405

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 13427 Geotextile Abrasion Resistance Tester Using Sand Paper / Slide Method is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO 13427 Geotextile Abrasion Resistance Tester Using Sand Paper / Slide Method	Speed Of The Reciprocating Plate:	90 Cycles Per Minute
Stroke Length:	25±1mm	Range Of The Counter:	1~9999, 1~99990,1~999900, Settable
Power Supply:	AC 220V 50Hz	Weight (including The Upper Plate And The Dead Weight):	6±0.01kg
Highlight:	abrasion resistance testing machine , yarn twist tester

ISO 13427 Geotextile Abrasion Resistance Tester - Sand Paper / Slide Method

Product Overview

The ISO 13427 Geotextile Abrasion Resistance Tester determines the resistance of geotextile and geotextile-related products to abrasion using the sand paper/sliding block method. This specialized testing equipment is designed specifically for geotextiles and is not suitable for geomembranes or geogrids.

Key Features

Compliant with ISO 13427 and ASTM D4886 standards
Utilizes sand paper/slide method for accurate abrasion testing
Factory-calibrated for precision and reliability
Programmable electro-magnetic counter for customizable stroke counts

Applications

This abrasion resistance tester is specifically designed to evaluate the durability and wear resistance of geotextiles and geotextile-related products under simulated abrasion conditions. The equipment allows for precise control of testing parameters to ensure consistent and repeatable results.

Compliance Standards

ISO 13427:1998 - Geotextiles and geotextile-related products - Abrasion damage simulation (sliding block test)
ASTM D4886-10 - Standard Test Method for Abrasion Resistance of Geotextiles (Sand Paper/Sliding Block Method)

Technical Specifications

Parameter	Specification
Upper/Lower Plate Size	50 × 200 mm
Reciprocating Plate Speed	90 cycles per minute
Stroke Length	25 ± 1 mm
Weight (including upper plate and dead weight)	6 ± 0.01 kg
Counter Range	1-9999, 1-99990, 1-999900 (settable)
Power Supply	AC 220V 50Hz

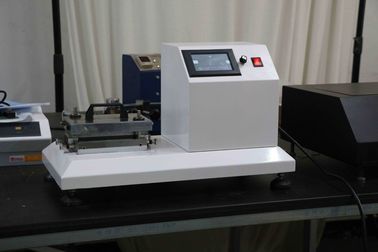

Product Image
