Geotextile Effective Aperture Tester Wet - sieving Principle ISO 12956

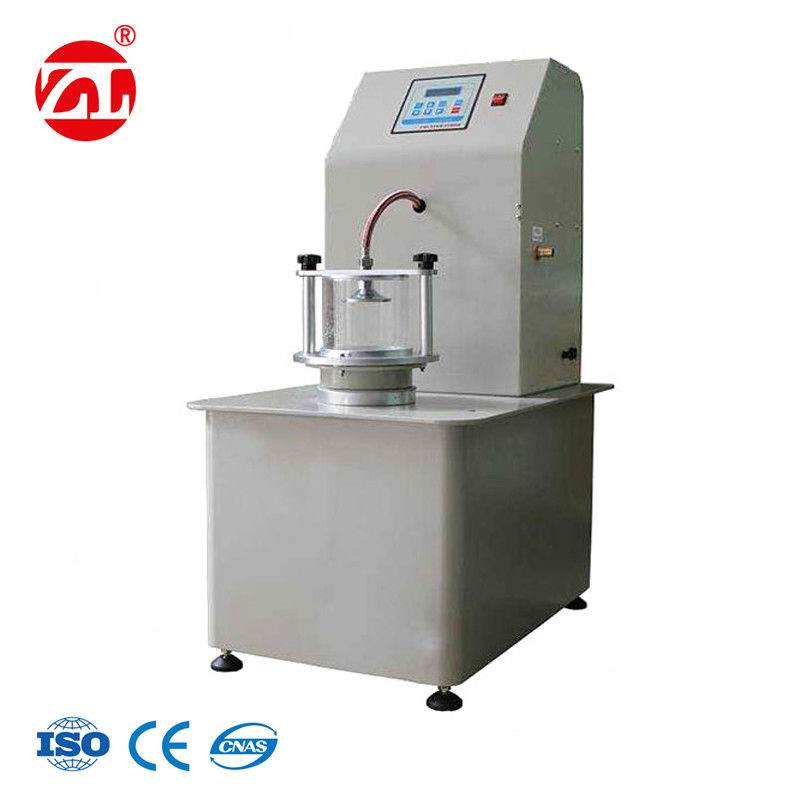

Large Image : Geotextile Effective Aperture Tester Wet - sieving Principle ISO 12956

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2404

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Geotextile Effective Aperture Tester	Inner Diameter Of Sieve:	130mm±1mm
Shake Frequency:	50Hz	Vertical Amplitude:	1.5±0.1mm
Pressure Of Nozzle:	300kPa	Apertures Of Support Screen:	10±1mm
Timer Range:	0~99.99s; 0~99min59s	Power Supply:	AC220V 50Hz
Highlight:	abrasion resistance testing machine , yarn twist tester

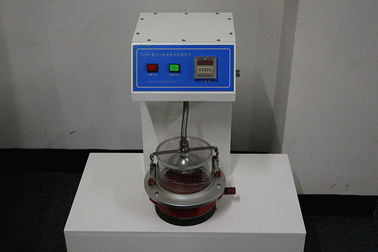

Geotextile Effective Aperture Tester Wet - sieving Principle ISO 12956

Product Overview

ISO 12956 Geotextile Effective Aperture Tester using the wet-sieving principle for determining the apparent opening size of geotextiles and geotextile-related products.

Application

This hydrodynamic sieve test apparatus determines the apparent opening size of single-layer geotextiles using the wet-sieving principle. A quantity of graded glass beads is placed on the geotextile surface and washed through with water. The geotextile acts as a sieve, and the graded glass beads that pass through are analyzed. The characteristic opening size (O90) corresponds to a specified size of the graded glass beads passed (d90).

Standards Compliance

Related Standard: ISO 12956

This tester conforms to but is not limited to the standards listed above. For additional standards conformance, please contact us.

Technical Specifications

Inner diameter of sieve	130mm±1mm
Shake frequency	50Hz
Vertical amplitude	1.5±0.1mm
Pressure of nozzle	300kPa
Water flow velocity under 300kPa pressure	500ml/min
Apertures of support screen	10±1mm
Timer range	0~99.99s; 0~99min59s
Power supply	AC220V 50Hz
Dimensions of main machine	680×420×750mm (L×W×H)
