ISO11058 Vertical Permeability Test Apparatus For Geotextile And Composite Material

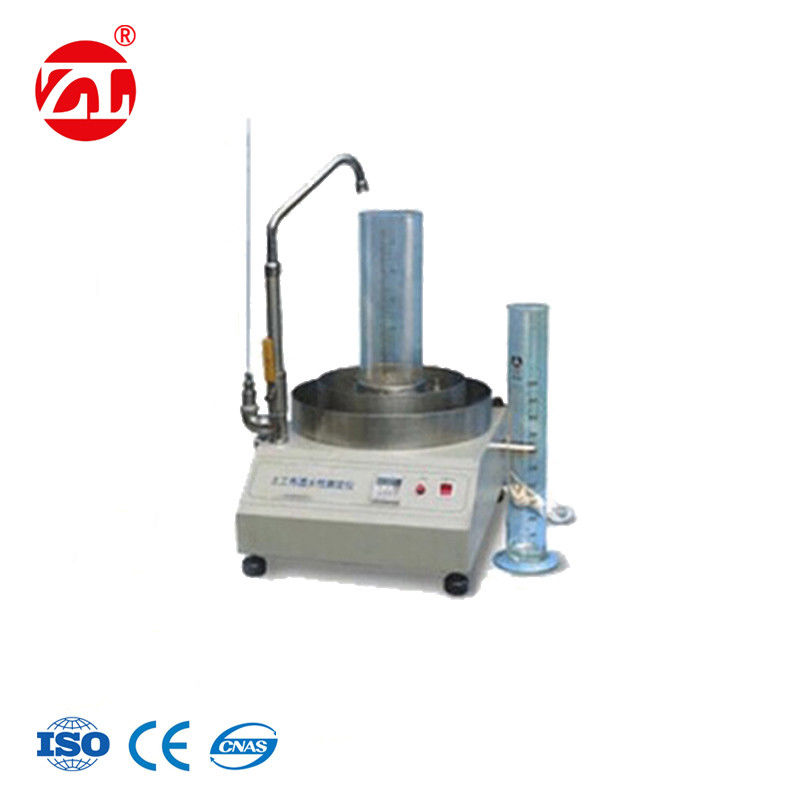

Large Image : ISO11058 Vertical Permeability Test Apparatus For Geotextile And Composite Material

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2402

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO11058 Vertical Permeability Test Apparatus For Geotextile And Composite Material	Max.pressure Difference Of Water Head:	250mmH O(2450pa)
Value Point Of Water Level:	1mm	Internal Diameter Of Clamp:	50±0.5mm
Testing Sample Thickness:	≤20mm	Time Control:	0~99.99 Secs
Thermometer Scope:	0~50°C( Accuracy: 0.1°C)	Power Source:	AC220V±10% 50Hz 100W
Highlight:	abrasion resistance testing machine , yarn twist tester

ISO11058 Vertical Permeability Test Apparatus For Geotextile And Composite Material

Product Overview

The ISO11058 Vertical Permeability Test Apparatus is designed for testing the vertical permeability of geotextiles and composite materials, featuring a new design for ease of use and reliable performance.

Vertical Permeability Test Apparatus for Geotextile
Warranty: One year
Easy to use operation
New design for enhanced performance

Applications

Used for testing the vertical permeability of geotextiles and composite materials in various industrial and research applications.

Compliance Standards

GB/T15789, JTG E50, SL/T235, ISO11058, ASTM D4716

Technical Specifications

Parameter	Specification
Max. pressure difference of water head	250mmH₂O (2450pa)
Value point of water level	1mm
Internal diameter of clamp	50±0.5mm
Testing sample thickness	≤20mm
Time control	0~99.99 secs
Graduated cylinder	1000ml (testing accuracy: 10ml)
Thermometer scope	0~50°C (accuracy: 0.1°C)
Power source	AC220V±10% 50Hz 100W
External dimension	400×500×850mm
Weight	45kg
