Payment & Shipping Terms:
|Product Name:||Computerized Waterproof Strip Hot Air Seam Sealing Machine , PLC Glue Press Machine||Rated Power:||1800W|
|Control Mode:||PLC + Touch Screen||Compressed Air:||Stable 5KG / C㎡|
|Welding Speed:||1-23m / Min (adjustable)||Maximum Welding Temperature:||800 ℃|
|Temperature Control Mode:||SSR Solid State||Up / Down Wheel Width:||25MM (others Can Be Scheduled)|
abrasion resistance testing machine,
yarn twist tester

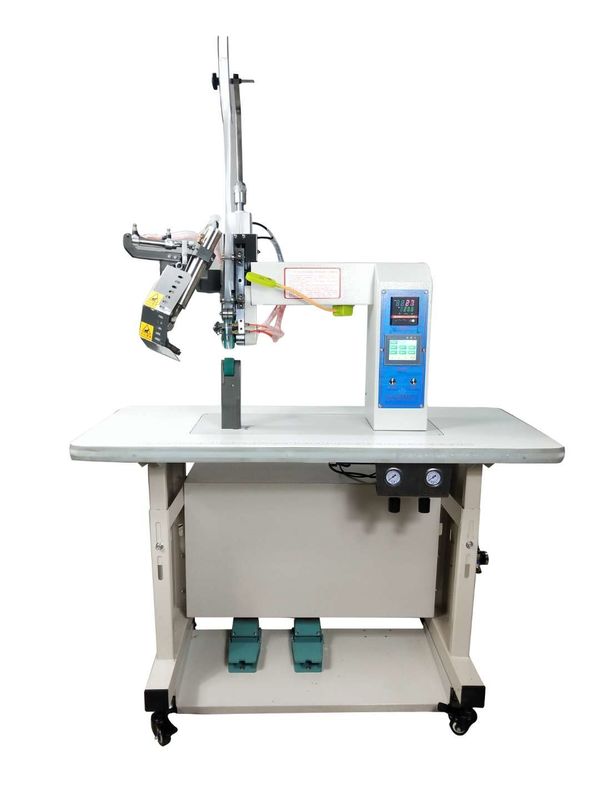

Computerized Waterproof Strip Hot Air Seam Sealing Machine , PLC Glue Press Machine
The main function of the introduction is to use a hot-air gun to melt the adhesive surface of the waterproof rubber strip, and at the same time, with the rotation and pressure of the upper and lower rollers, the rubber strip is closely attached to the needle eye of the waterproof material, so that the waterproof film is fused into one body to achieve the waterproof effect.
Suitable for all kinds of waterproof shoes and waterproof appliances.
Waterproof shoes include: sports shoes, hiking shoes, snow boots, golf shoes, five-finger beach shoes, labor insurance work shoes, etc.
Waterproof equipment includes: protective clothing, waterproof clothing, NEOPENE wetsuit, waterproof luggage, wind and snow windbreaker, fishing pants, waterproof camp, waterproof hat, gloves and so on.
|Power requirements||AC220V 50HZ / 60HZ|
|Control mode||PLC + touch screen|
|Compressed air||Stable 5KG / C㎡|
|Welding speed||1-23m / min (adjustable)|
|Maximum welding temperature||800 ℃|
|Air gun specifications||Flat mouth row holes 20--25CM optional|
|Temperature control mode||SSR solid state|
|Up / down wheel width||25MM (others can be scheduled)|
|Weight||Net weight 125KG. Gross weight 170KG|
|Packing size||1270 × 670 × 1620mm|
Contact Person: Wendy
