Impact Height 150mm Baggage / Luggage Handle Sew Stitch Lines Oscillation Tester

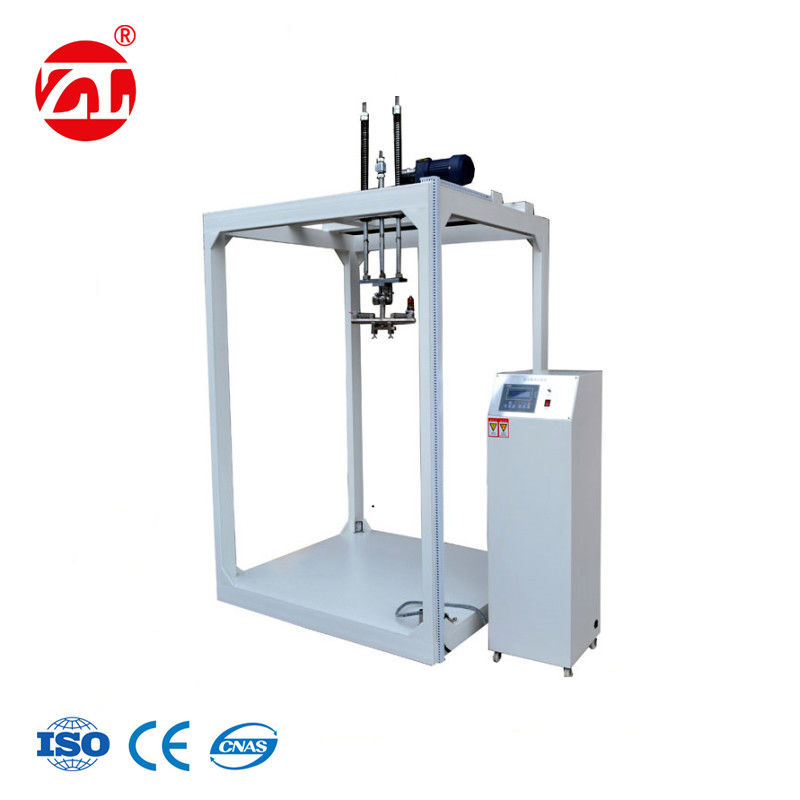

Large Image : Impact Height 150mm Baggage / Luggage Handle Sew Stitch Lines Oscillation Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2910

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Impact Height 150mm Baggage / Luggage Handle , Sew Stitch Lines Oscillation Tester	Oscillation Mode:	Spring Type: 1.79Kg/mm
Testing Speed:	5~30 C.P.M. Adjustable	Times Setting:	1~999999 Automatic Shutdown
Additional Function:	It Would Stop Automatically If Something Goes Wrong.	Design Criteria:	QB/T2922-2007
Highlight:	abrasion testing equipment , fatigue testing machine

Impact Height 150mm Baggage / Luggage Handle Sew Stitch Lines Oscillation Tester

Product Overview

The Impact Height 150mm Baggage/Luggage Handle Sew Stitch Lines Oscillation Tester is designed to evaluate the resistance of luggage components to oscillating impacts, specifically testing handles, sew stitch lines, and overall structural integrity.

Application & Testing Method

This luggage oscillation impact tester assesses the durability of luggage components through controlled oscillating impacts. The testing procedure involves:

Loading the specimen with the stated weight capacity
Conducting tests at a speed of 30 cycles per minute
Applying impacts from a height of 4 inches (150mm)
Performing 2500 impact cycles
Analyzing results for quality improvement purposes

Technical Specifications

Parameter	Specification
Model	ZL-2910
Impact Height	150mm
Oscillation Mode	Spring type: 1.79Kg/mm
Testing Speed	5~30 C.P.M. adjustable
Times Setting	1~999999 Automatic shutdown
Additional Function	Automatic shutdown in case of malfunction
Dimension	1400×1200×2500 mm
Weight	390 Kg
Power	1ø, 220V/50Hz
Design Criteria	QB/T2922-2007
