Luggage Bumps Wear Testing Instrument With Suitcase Fixed Seat Adjustment

Large Image : Luggage Bumps Wear Testing Instrument With Suitcase Fixed Seat Adjustment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2904

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Luggage Bumps Wear Testing Instrument With Suitcase Fixed Seat Adjustment	Test Speed:	0~5 Km/hr, Adjustable
Time Setting:	0~999.9 Hours, Outage Memory	Bump Plate:	5mm, 8 Pieces
Belt Perimeter:	380 Cm	Belt Width:	76 Cm
Power:	220V/50Hz	Design Criteria:	QB/T 2920-2007
Highlight:	abrasion testing equipment , fatigue testing machine

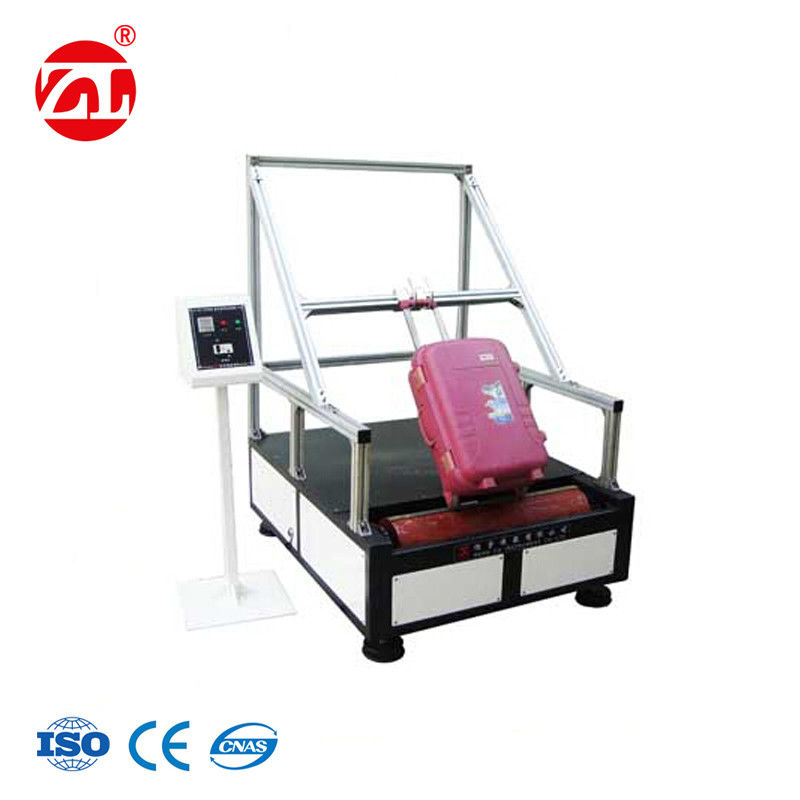

Luggage Bumps Wear Testing Instrument With Suitcase Fixed Seat Adjustment

Product Overview

The Luggage Bumps Wear Testing Instrument is designed for comprehensive durability testing of wheeled luggage, bags, and baby carriages. This specialized equipment simulates real-world walking conditions to evaluate product quality and performance over extended use.

Applications

Wheeled suitcases and travel bags
Baby strollers and carriages

Testing Capabilities

Heat rupture analysis of wheels
Wheel volume loss measurement
Structural deformation assessment
Overall construction integrity evaluation

Technical Specifications

Model	ZL-2904
Test Speed	0~5 km/hr, adjustable
Time Setting	0~999.9 hours, outage memory
Bump Plate	5mm, 8 pieces
Belt Perimeter	380 cm
Belt Width	76 cm
Attachment	Suitcase fixed seat adjustment
Machine Size (L×W×H)	220×180×160 cm
Weight	360 Kg
Power	220V/50Hz
Design Criteria	QB/T 2920-2007
