GB19083-2010 Medical Mask Synthetic Blood Penetration Tester For Medical Inspection

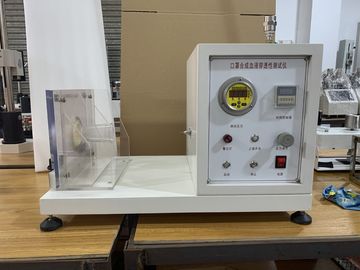

Large Image : GB19083-2010 Medical Mask Synthetic Blood Penetration Tester For Medical Inspection

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5060

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB19083-2010 Medical Mask Synthetic Blood Penetration Tester for Medical Inspection is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB19083-2010 Medical Mask Synthetic Blood Penetration Tester For Medical Inspection	Test Environment:	Temperature (21 ± 5) ℃; Relative Humidity (85 ± 10)%
Spraying Distance:	(300 ± 10) Mm	Nozzle Diameter:	Φ0.84mm, Length 12.7mm
Liquid Ejection Speed:	450cm / S; 550 Cm / S; 635 Cm / S	Power:	AC220V 50Hz
Highlight:	abrasion resistance testing machine , yarn twist tester

GB19083-2010 Medical Mask Synthetic Blood Penetration Tester For Medical Inspection

The GB19083-2010 Medical Mask Synthetic Blood Penetration Tester is designed for evaluating the spatter penetration performance of medical masks against synthetic blood. This instrument serves medical inspection departments, safety inspection agencies, and scientific research units.

Testing Principle

The medical mask sample is mounted on the test device, and 2 mL of synthetic blood is horizontally sprayed from a cannula with an inner diameter of 0.84 mm at a distance of 300 mm. This simulates scenarios where masks are exposed to blood spray from perforated blood vessels. The penetration of synthetic blood on the opposite side of the mask is observed and recorded. Testing is conducted at liquid ejection speeds of 450 cm/s, 550 cm/s, and 635 cm/s, with results documented for each speed.

Applicable Standards

GB19083-2010: Technical requirements for medical protective masks
YY 0469-2011: Surgical masks
YY/T 0691-2008: Test method for resistance to synthetic blood penetration of medical masks for infectious pathogen protective equipment (fixed volume, horizontal spray)

Technical Specifications

Parameter	Specification
Test Environment	Temperature (21 ± 5)°C; Relative Humidity (85 ± 10)%
Spraying Distance	(300 ± 10) mm
Nozzle Diameter	Φ0.84mm, length 12.7mm
Liquid Ejection Speed	450 cm/s; 550 cm/s; 635 cm/s
Power Supply	AC220V 50Hz
