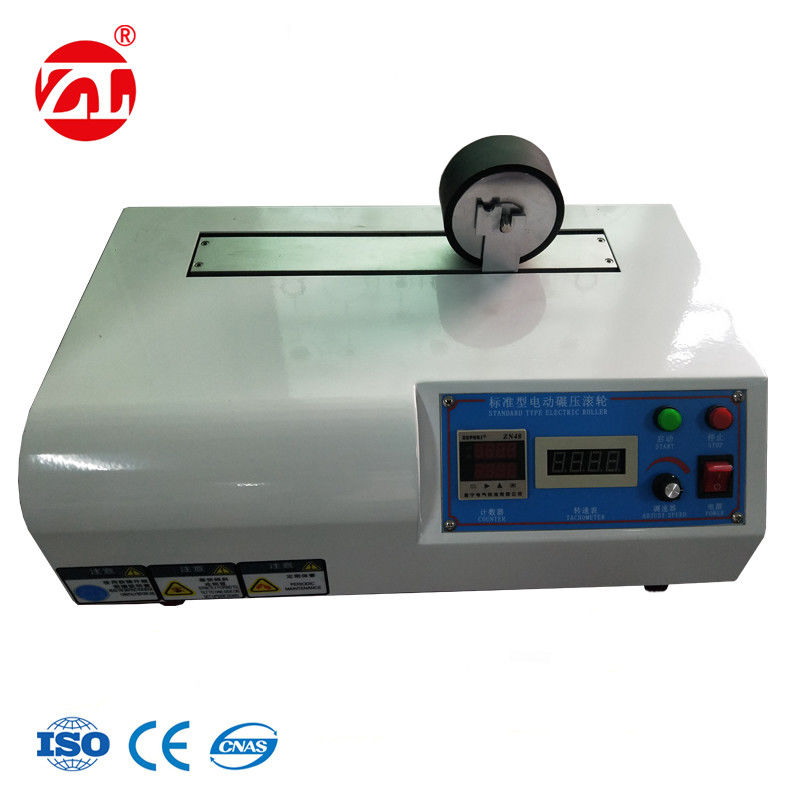

Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test

Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test
Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test

Large Image :  Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-2604B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Electric Tape Rolling Roller Lab Testing Instruments is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: Electric Tape Rolling Roller Lab Testing Instruments Load: 2000±50g
Roller Size: 84mm×45mm Rolling Speed: 300mm/min
Rubber Hardness: Hs 80 ± 5 Roller No.: 1 Sets
Dimension: 520×330×250 Mm Weight: 20Kg
Highlight:

paper test equipment

,

carton bursting tester

Electric Tape Rolling Roller Lab Testing Instruments for Peeling , Holding Power Test





Product Description:



The roller is used to roll the tape stuck to the standard steel plate with a constant pressure and speed to prepare the sample for peeling test and retention test.



Usage:



This machine is used for prepare samples of adhesive tapes peeling test, holding power test.



Principle:



With a a constant pressure and speed, let the adhesive tape sample stick on the standard test plate standard and smoothly.



Standards:



Machine standards:GB/T 4851,JIS-C-2107,JIS-Z-0237,GB/T2792,PSTV-8



Main Technical Parameters:



Load 2000±50g
Roller Size 84mm×45mm
Rolling Speed 300mm/min
Rubber Hardness Hs 80 ± 5
Roller No. 1 sets
Dimension 520×330×250 mm
Weight 20Kg



Electric Tape Rolling Roller Lab Testing Instruments For Peeling , Holding Power Test 0
